What you will do
- Question: does correction reduce technology effects while retaining cell types?
-
Input: All 1,600 cells and 12,932 supplied genes in
panc8_sub;techidentifies five technologies andcelltypesupplies evaluation labels. - Output: Uncorrected and Harmony reductions on the same cells, marker checks and a reloadable integrated object.
- How to run: start a fresh R session and run the chunks in order. Printed tables and figures below are generated from that run; code-only alternatives are identified explicitly.
Use integration when technical structure prevents comparison across samples or platforms, and retain an unintegrated baseline. If every condition occurs in only one batch, batch and biology are confounded: no attractive embedding can resolve that experimental-design problem.
Prepare the required Harmony source
SCOP’s RunHarmony2() checks the official GitHub package
origin. A CRAN installation with the same package name does not satisfy
that check and can trigger an installation attempt in the middle of an
analysis. Install the exact source before starting this page, then
restart R:
remotes::install_github(
"immunogenomics/harmony@df19af23ae0639bd6ea2da63898f973f08c85862",
upgrade = "never"
)The tutorial’s dependency preflight is read-only. It fails with a clear setup requirement instead of allowing an implicit installation during fitting.
Prepare a Merged Object
The example uses the bundled panc8_sub object, a subset
of human pancreas datasets. The tech column records the
batch or technology label. The celltype column is used as
known biology for diagnostics, not as a target to force during
integration.
library(scop)
set.seed(11)
harmony_source <- utils::packageDescription("harmony")
stopifnot(identical(harmony_source$RemoteUsername, "immunogenomics"),
identical(harmony_source$RemoteSha, "df19af23ae0639bd6ea2da63898f973f08c85862"))
data.frame(package = "harmony", version = harmony_source$Version,
source = paste(harmony_source$RemoteUsername, harmony_source$RemoteRepo, sep = "/"),
revision = harmony_source$RemoteSha)
#> package version source
#> 1 harmony 2.0.4 immunogenomics/harmony
#> revision
#> 1 df19af23ae0639bd6ea2da63898f973f08c85862
data(panc8_sub)
input_cells <- colnames(panc8_sub)
stopifnot(!anyNA(panc8_sub$tech), !anyNA(panc8_sub$celltype))
data.frame(genes = nrow(panc8_sub), cells = ncol(panc8_sub))
#> genes cells
#> 1 12932 1600
table(panc8_sub$tech)
#>
#> celseq celseq2 fluidigmc1 indrop smartseq2
#> 200 200 200 800 200
table(panc8_sub$celltype)
#>
#> acinar activated-stellate alpha beta
#> 164 50 483 428
#> delta ductal endothelial epsilon
#> 111 237 26 3
#> gamma macrophage mast quiescent-stellate
#> 67 9 7 14
#> schwann

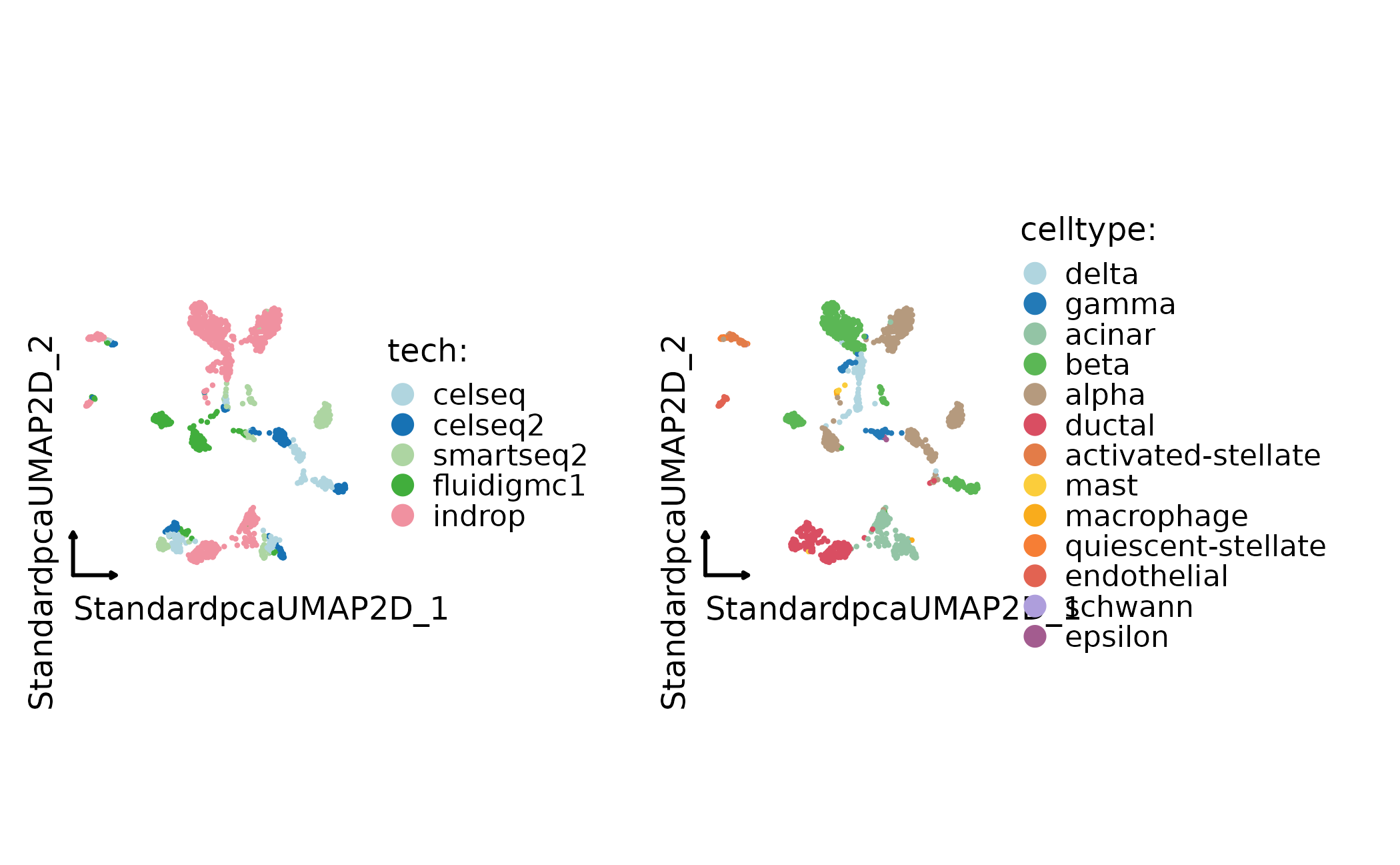

#> 1Always inspect the unintegrated embedding or PCA first. This gives you a baseline for deciding whether integration removes technical structure without erasing cell-type structure.
panc8_sub <- RunStandardWorkflow(panc8_sub, assay = "RNA", seed = 11, cores = 1,
verbose = FALSE)
CellDimPlot(
panc8_sub,
group.by = c("tech", "celltype"),
reduction = "UMAP",
theme_use = "theme_blank"
)
Run an Integration Method
Harmony is a common first pass when the object is already a merged Seurat object with a batch column.
panc8_harmony <- RunIntegration(
srt_merge = panc8_sub,
batch = "tech",
integration_methods = "Harmony",
nonlinear_reduction_dims = 2,
seed = 11, verbose = FALSE
)
#> Warning: Different features in new layer data than already exists for
#> scale.data
stopifnot(identical(colnames(panc8_harmony), input_cells))
SeuratObject::Reductions(panc8_harmony)
#> [1] "Standardpca" "StandardpcaUMAP2D" "StandardUMAP2D"
#> [4] "Harmonypca" "Harmony" "HarmonyUMAP2D"

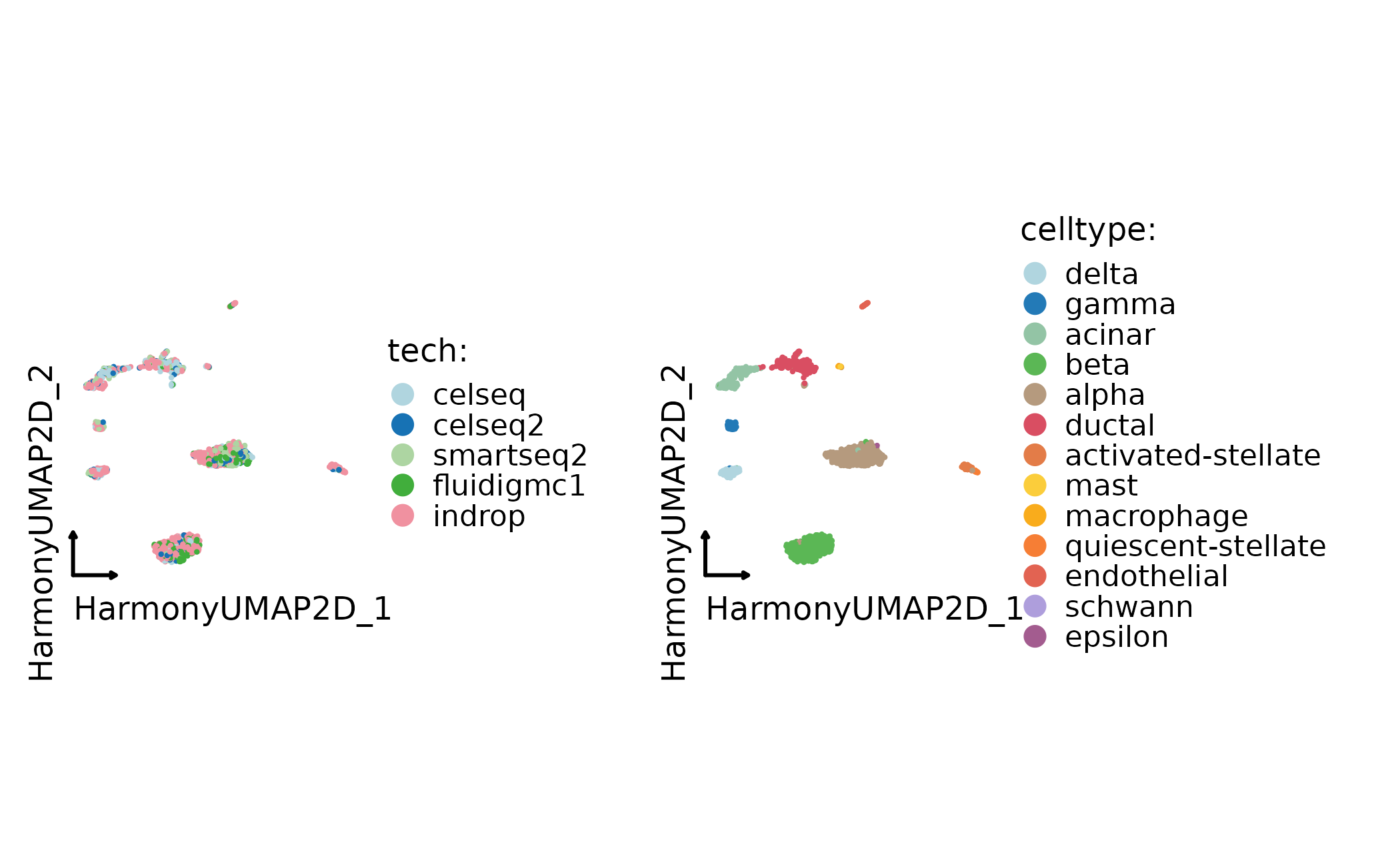

#> [7] "HarmonypcaUMAP2D"Use the method-specific integrated UMAP for plotting. The exact
reduction name depends on the selected method; for Harmony, the examples
use HarmonyUMAP2D. When comparing methods, report the
reduction name explicitly. A plot labeled only as UMAP is ambiguous once
an object contains uncorrected and integrated embeddings.
CellDimPlot(
panc8_harmony,
group.by = c("tech", "celltype"),
reduction = "HarmonyUMAP2D",
theme_use = "theme_blank"
)
Choose a Method
Use method choice to match the data and dependency budget:
-
Harmony,fastMNN,MNN,ComBat, andSeuratmethods are practical R-side choices for many scRNA-seq batch problems. -
scVI,BBKNN,Scanorama,GLUE, andMultiMAPrequire Python-side dependencies but can be useful for large datasets or multimodal settings. -
WNNand cross-modality methods are better suited to multimodal RNA + ATAC or paired-modality objects than to ordinary batch correction. -
Uncorrectedis useful as a baseline and should be kept in reports when showing that integration changed the object.
The following alternatives are recipes, not additional measured results in this page. To compare executed methods, use the integration benchmark. Other methods follow the same entry-point pattern, but may require additional runtime dependencies or matrix backends:
panc8_rpca <- RunIntegration(
srt_merge = panc8_sub,
batch = "tech",
integration_methods = "RPCA"
)
panc8_fastmnn <- RunIntegration(
srt_merge = panc8_sub,
batch = "tech",
integration_methods = "fastMNN"
)Inspect Integration Quality

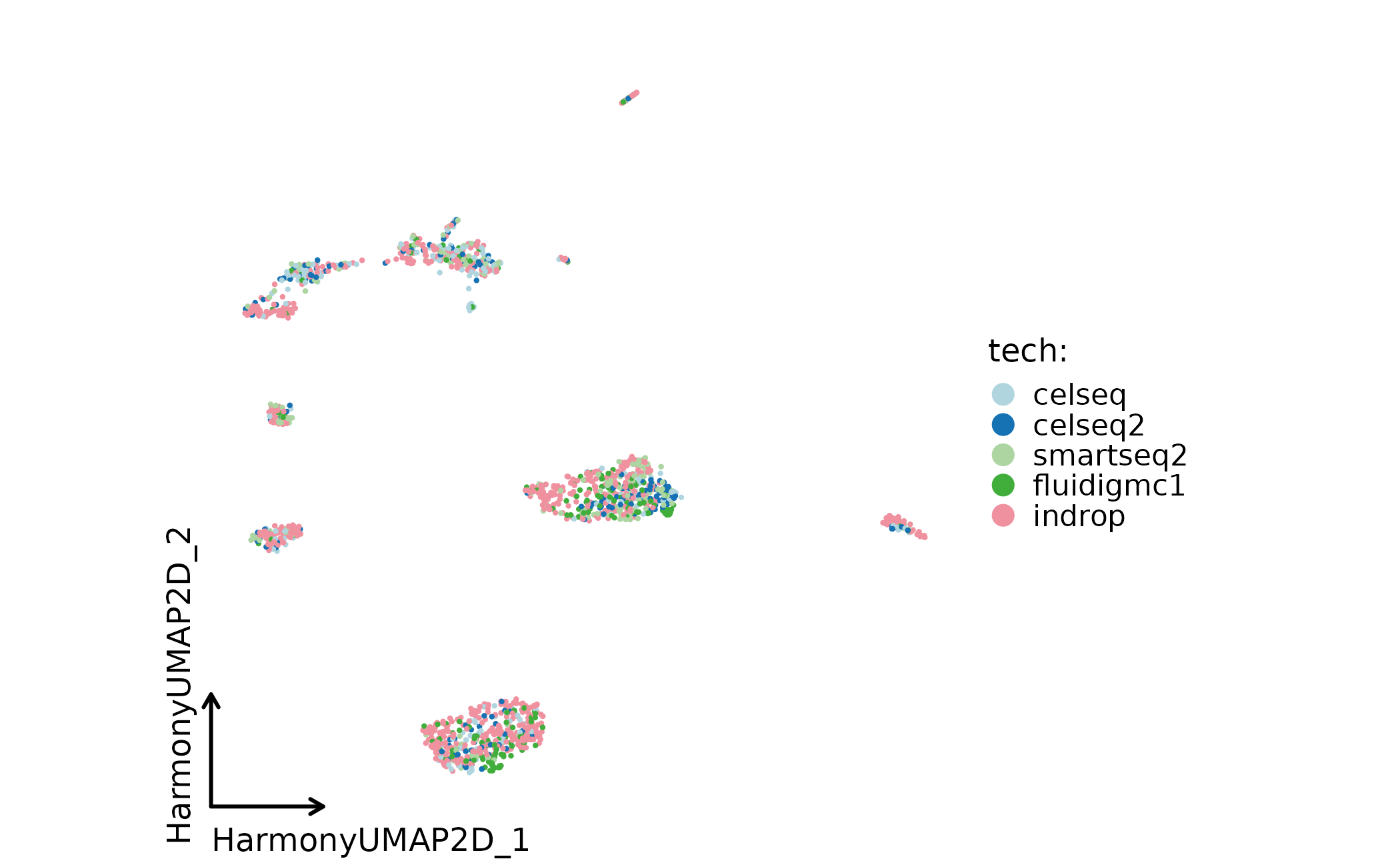

Do not judge integration from batch mixing alone. Also check known labels, marker genes, and whether rare cell types remain separated.
CellDimPlot(
panc8_harmony,
group.by = "tech",
reduction = "HarmonyUMAP2D",
theme_use = "theme_blank"
)

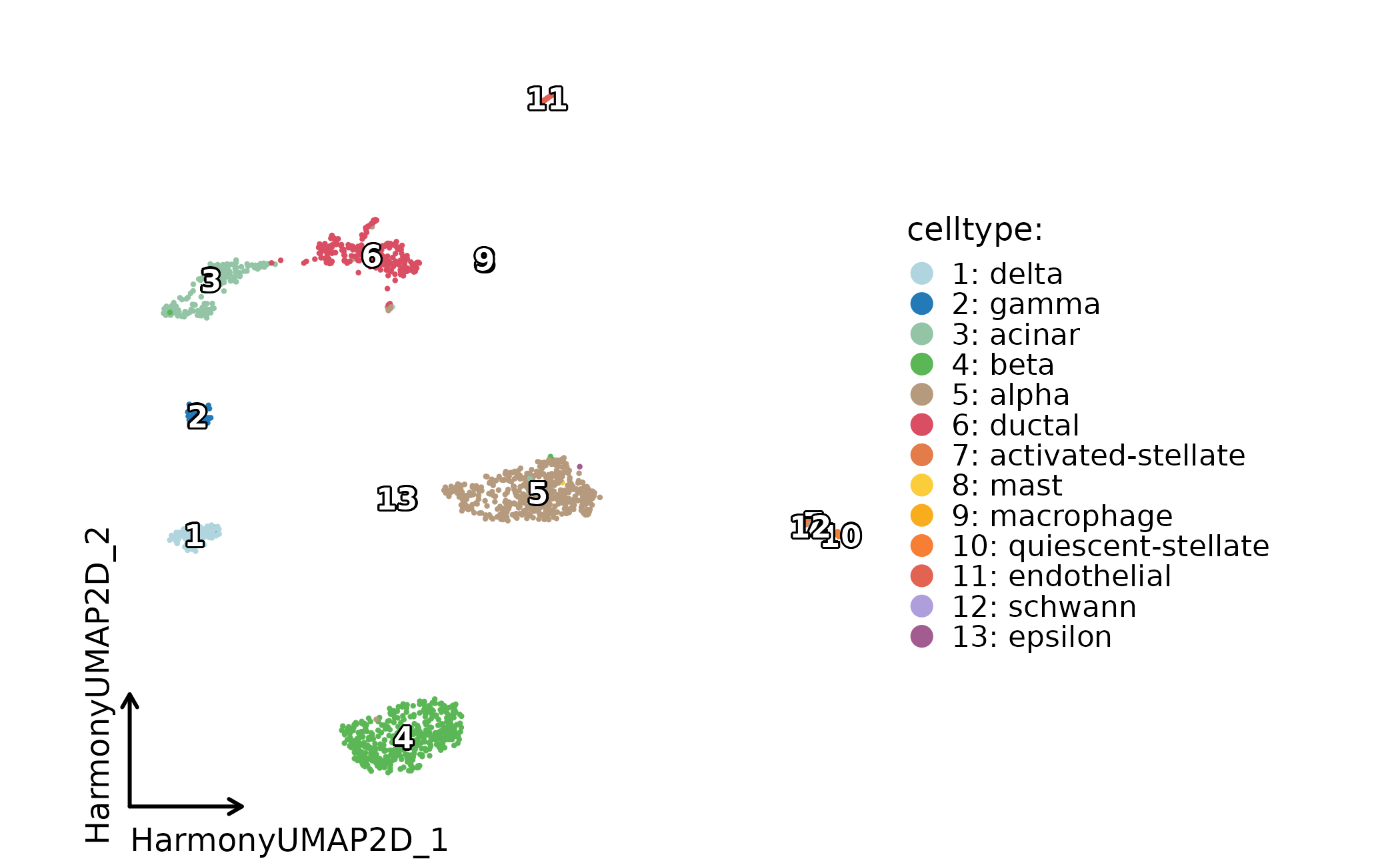

CellDimPlot(
panc8_harmony,
group.by = "celltype",
reduction = "HarmonyUMAP2D",
label = TRUE,
label_repel = TRUE, label.size = 3,
theme_use = "theme_blank"
)

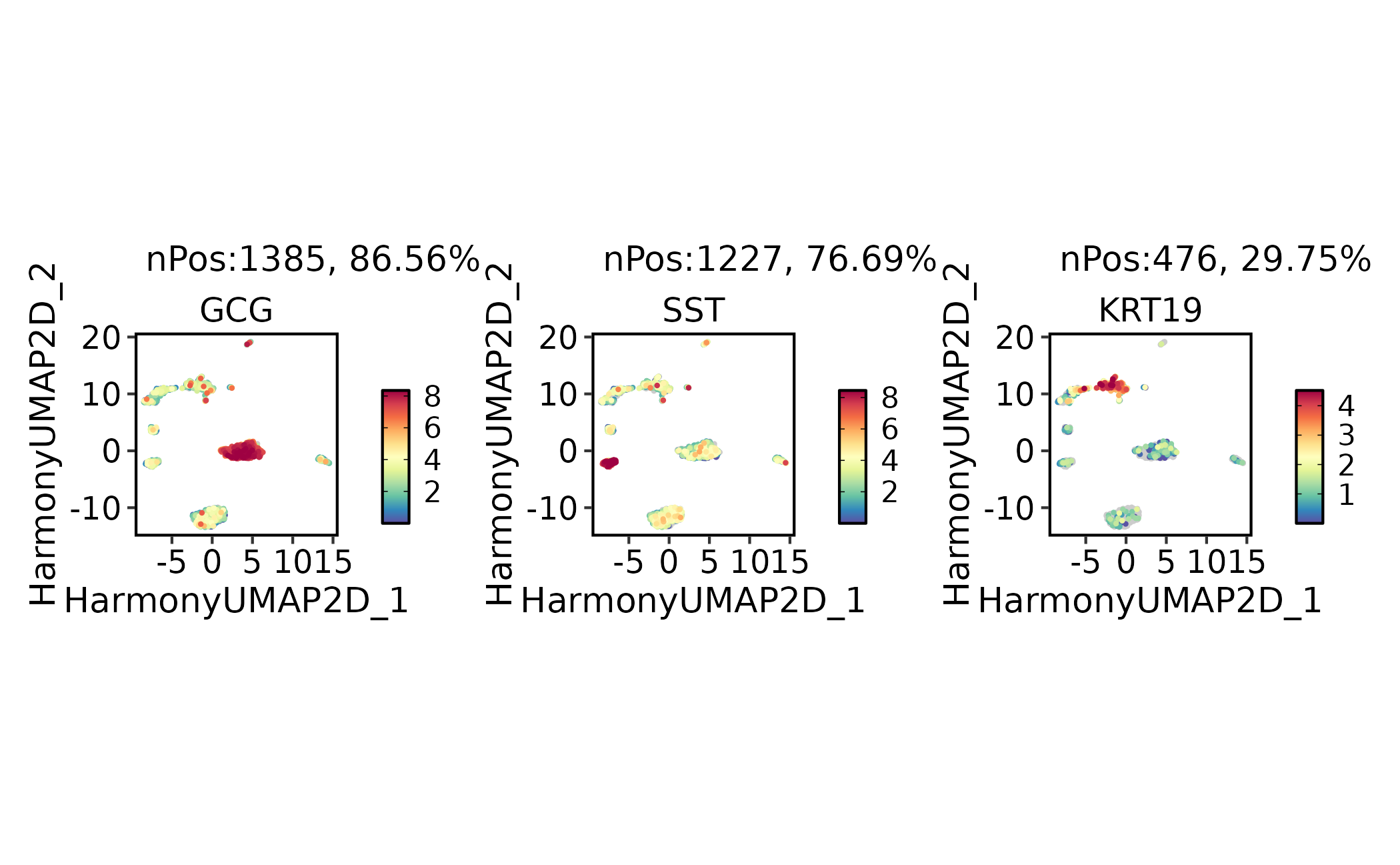

FeatureDimPlot(
panc8_harmony,
features = c("GCG", "SST", "KRT19"),
reduction = "HarmonyUMAP2D"
)
When comparing methods, keep the input object fixed and compare the same metadata labels, marker genes, and diagnostic plots across methods. The unintegrated baseline is useful because it shows what the integration changed. Good integration mixes batches within the same biological state while keeping distinct cell types and marker programs separated. Overcorrection is visible when expected marker-defined groups collapse together.
INS is absent from the supplied feature-filtered object, so this marker check uses measured GCG, SST and KRT19. Missing input genes must not be interpreted as measured zero expression.
Save, reload, and check the hand-off
The build uses a temporary directory so repeated rendering cannot overwrite a previous analysis. For your work, replace it with a new persistent output folder. Save the object and plain-text metadata; a figure alone cannot reproduce the analysis. No cells are sampled for this export.
output_dir <- file.path(tempdir(), "integration-workflow")
dir.create(output_dir, recursive = TRUE, showWarnings = FALSE)
result_file <- file.path(output_dir, "analysis.rds")
saveRDS(panc8_harmony, result_file)
utils::write.csv(panc8_harmony@meta.data, file.path(output_dir, "cell-metadata.csv"))
reloaded <- readRDS(result_file)
stopifnot(identical(colnames(reloaded), colnames(panc8_harmony)),
identical(reloaded@meta.data, panc8_harmony@meta.data),
identical(SeuratObject::Reductions(reloaded),
SeuratObject::Reductions(panc8_harmony)))
data.frame(file = basename(list.files(output_dir, full.names = TRUE)),
bytes = file.info(list.files(output_dir, full.names = TRUE))$size)
#> file bytes
#> 1 analysis.rds 46707848
#> 2 cell-metadata.csv 186170Use your own data and recover common errors
- Replace the
data(...)input withreadRDS("your-object.rds"), or create a Seurat object from a gene-by-cell raw-count matrix. Check that cell IDs are unique and metadata row names equal the expression column names. - Set the assay and grouping columns explicitly. Species, gene identifiers and reference labels must match your experiment; do not copy pancreas labels to unrelated tissue.
- If a reduction or metadata column is missing, inspect
SeuratObject::Reductions(object)andcolnames(object@meta.data), then run its producer chunk. A plot does not create the result it needs. - If a dependency is unavailable, install it in the analysis environment, restart R and rerun from the input chunk. A skipped or failed method is not evidence that it worked. Preserve warnings and the exact error in your report.
Build and analysis provenance
The receipt records the R seed. Python methods retain their documented backend seeds and parameters; setting the R seed alone does not control every backend. Package versions, BLAS libraries and backend changes can alter numerical results. Keep this receipt with the exported object. It describes this page’s actual render.
source_revision <- Sys.getenv("GITHUB_SHA")
if (!nzchar(source_revision) && nzchar(Sys.which("git"))) {
source_revision <- tryCatch(system2("git", c("rev-parse", "HEAD"), stdout = TRUE,
stderr = FALSE)[1], error = function(e) NA_character_)
}
article_source <- knitr::current_input(dir = TRUE)
build_receipt <- data.frame(
article = "integration-workflow",
built_utc = format(Sys.time(), tz = "UTC", usetz = TRUE),
scop = as.character(utils::packageVersion("scop")),
R = as.character(getRversion()),
source_revision = source_revision,
source_has_local_changes = if (nzchar(Sys.which("git")))
length(system2("git", c("status", "--porcelain"), stdout = TRUE, stderr = FALSE)) > 0 else NA,
article_md5 = unname(tools::md5sum(article_source)),
R_seed = 11,
cells_retained = ncol(panc8_harmony),
genes_in_active_assay = nrow(panc8_harmony),
stringsAsFactors = FALSE
)
build_receipt
#> article built_utc scop R
#> 1 integration-workflow 2026-10-12 00:08:13 UTC 0.9.2 4.6.1
#> source_revision source_has_local_changes
#> 1 083f5f31e37220a9e9a5b0110e63ea4ed3f49317 FALSE
#> article_md5 R_seed cells_retained genes_in_active_assay
#> 1 5cc182e499ddcc3f3890dcaf68acde54 11 1600 12932
utils::write.csv(build_receipt, file.path(output_dir, "build-receipt.csv"),
row.names = FALSE)
writeLines(capture.output(sessionInfo()), file.path(output_dir, "session-info.txt"))Show the complete R session used for this page
sessionInfo()
#> R version 4.6.1 (2026-06-24)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Ubuntu 24.04.5 LTS
#>
#> Matrix products: default
#> BLAS: /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
#> LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so; LAPACK version 3.12.0
#>
#> locale:
#> [1] LC_CTYPE=C.UTF-8 LC_NUMERIC=C LC_TIME=C.UTF-8
#> [4] LC_COLLATE=C.UTF-8 LC_MONETARY=C.UTF-8 LC_MESSAGES=C.UTF-8
#> [7] LC_PAPER=C.UTF-8 LC_NAME=C LC_ADDRESS=C
#> [10] LC_TELEPHONE=C LC_MEASUREMENT=C.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: UTC
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats graphics grDevices utils datasets methods base
#>
#> other attached packages:
#> [1] scop_0.9.2
#>
#> loaded via a namespace (and not attached):
#> [1] RColorBrewer_1.1-3 jsonlite_2.0.0 shape_1.4.6.1
#> [4] magrittr_2.0.5 spatstat.utils_3.2-5 farver_2.1.2
#> [7] rmarkdown_2.32 GlobalOptions_0.1.4 fs_2.1.0
#> [10] ragg_1.5.2 vctrs_0.7.3 ROCR_1.0-12
#> [13] Rsamtools_2.28.0 spatstat.explore_3.8-3 RcppRoll_0.4.0
#> [16] htmltools_0.5.9 sass_0.4.10 thisutils_0.5.2
#> [19] sctransform_0.4.3 parallelly_1.48.0 KernSmooth_2.23-26
#> [22] bslib_0.12.0 htmlwidgets_1.6.4 desc_1.4.3
#> [25] ica_1.0-3 plyr_1.8.9 plotly_4.12.1
#> [28] zoo_1.9-1 cachem_1.1.0 igraph_2.3.4
#> [31] mime_0.13 lifecycle_1.0.5 iterators_1.0.14
#> [34] pkgconfig_2.0.3 Matrix_1.7-5 R6_2.6.1
#> [37] fastmap_1.2.0 MatrixGenerics_1.24.0 fitdistrplus_1.2-6
#> [40] future_1.76.0 shiny_1.14.0 clue_0.3-68
#> [43] digest_0.6.39 thisplot_0.4.6 colorspace_2.1-4
#> [46] patchwork_1.3.2 S4Vectors_0.50.3 Seurat_5.6.0
#> [49] tensor_1.5.1 RSpectra_0.16-2 irlba_2.4.1
#> [52] GenomicRanges_1.64.0 textshaping_1.0.5 labeling_0.4.3
#> [55] progressr_1.0.0 spatstat.sparse_3.2-0 httr_1.4.9
#> [58] polyclip_1.10-7 abind_1.4-8 compiler_4.6.1
#> [61] withr_3.0.3 doParallel_1.0.17 S7_0.2.2
#> [64] BiocParallel_1.46.0 fastDummies_1.7.6 ggforce_0.5.0
#> [67] MASS_7.3-65 proxyC_0.5.2 rjson_0.2.23
#> [70] tools_4.6.1 lmtest_0.9-40 otel_0.2.0
#> [73] httpuv_1.6.17 future.apply_1.20.2 goftest_1.2-3
#> [76] glue_1.8.1 nlme_3.1-169 promises_1.5.0
#> [79] grid_4.6.1 Rtsne_0.17 cluster_2.1.8.2
#> [82] reshape2_1.4.5 generics_0.1.4 gtable_0.3.6
#> [85] spatstat.data_3.1-9 tidyr_1.3.2 data.table_1.18.6.1
#> [88] XVector_0.52.0 sp_2.2-3 BiocGenerics_0.58.1
#> [91] spatstat.geom_3.8-3 RcppAnnoy_0.0.23 ggrepel_0.9.8
#> [94] RANN_2.6.3 foreach_1.5.2 pillar_1.11.1
#> [97] stringr_1.6.0 spam_2.11-4 RcppHNSW_0.7.0
#> [100] later_1.4.8 circlize_0.4.18 splines_4.6.1
#> [103] tweenr_2.0.3 dplyr_1.2.1 lattice_0.22-9
#> [106] survival_3.8-6 deldir_2.0-4 tidyselect_1.2.1
#> [109] ComplexHeatmap_2.28.0 Biostrings_2.80.2 miniUI_0.1.2
#> [112] pbapply_1.7-5 knitr_1.52 gridExtra_2.3.1
#> [115] Seqinfo_1.2.0 IRanges_2.46.0 scattermore_1.2
#> [118] RhpcBLASctl_0.23-42 stats4_4.6.1 xfun_0.61
#> [121] matrixStats_1.5.0 UCSC.utils_1.8.0 stringi_1.8.9
#> [124] yaml_2.3.12 evaluate_1.0.5 codetools_0.2-20
#> [127] tibble_3.3.1 cli_3.6.6 uwot_0.2.5
#> [130] RcppParallel_6.2.1 Signac_1.17.1 xtable_1.8-8
#> [133] reticulate_1.47.0 systemfonts_1.3.2 jquerylib_0.1.4
#> [136] harmony_2.0.4 GenomeInfoDb_1.48.0 dichromat_2.0-1
#> [139] Rcpp_1.1.2 spatstat.random_3.5-2 globals_0.19.1
#> [142] png_0.1-9 spatstat.univar_3.2-0 parallel_4.6.1
#> [145] pkgdown_2.2.1 ggplot2_4.0.3 dotCall64_1.2
#> [148] sparseMatrixStats_1.24.0 bitops_1.1-0 listenv_1.1.0
#> [151] viridisLite_0.4.3 scales_1.4.0 ggridges_0.5.7
#> [154] SeuratObject_5.4.0 purrr_1.2.2 crayon_1.5.3
#> [157] GetoptLong_1.1.1 rlang_1.3.0 fastmatch_1.1-8
#> [160] cowplot_1.2.0What to Report
A compact integration report should include:
- the batch column and biological annotation columns used for evaluation;
- the integration method and major parameters;
- the integrated reduction names used for plots;
- before and after plots colored by batch and biological labels;
- marker-gene checks for expected cell types;
- any method-specific dependencies or environment setup needed to reproduce the run.
Integration is a preprocessing decision, not a biological result by itself. Use it only when the integrated representation improves downstream interpretation without hiding real biological differences.
