Use this page when an analysis needs a different data container. You will convert a real Visium dataset to SpatialExperiment, verify what survived, convert back to Seurat, and save a reloadable result. A separate Giotto section checks the installed backend before attempting the same task. Conversion does not run either framework’s biological analysis.

Start with the main spatial workflow for analysis, or the platform page for vendor imports and assay/image choices.

Inputs and preservation boundaries

The executable input is the complete bundled visium_human_pancreas_sub object: 5,000 genes and all 1,986 packaged tissue spots from human PanIN sample GSM8058244, study GSE254829. The package has already selected genes shared with panc8_sub; this article performs no additional feature or spot subsampling. coda_label is supplied microanatomical annotation, not a predicted cell type.

Field	Seurat ↔︎ SpatialExperiment	Seurat ↔︎ Giotto
Expression	One selected assay/layer becomes `scop_input`; reverse conversion places it in Seurat `counts`	The official GiottoClass converter controls layer and assay naming
IDs and metadata	Expression columns and coordinate rows are aligned by ID; `include_meta = TRUE` exports metadata	Check returned IDs and metadata against the selected input; do not assume names are unchanged
Coordinates	Raw coordinates by default; an explicit legacy display export stores an invertible transform	Official converter’s coordinate convention; validate before distance-based analysis
Other Seurat content	Does not round-trip images, reductions, graphs, tools, or all assays	Retention follows the installed GiottoClass converter
Analysis	No target-framework analysis is run	No Giotto analysis or Python environment is initialized

The reverse SpatialExperiment bridge treats its selected expression assay as counts. Therefore this round-trip exports raw counts. Do not export a normalized layer and then describe the returned counts layer as raw data.

library(scop)
stopifnot(requireNamespace("SpatialExperiment", quietly = TRUE))
data(visium_human_pancreas_sub)
spatial <- visium_human_pancreas_sub
assay_name <- "Spatial"
image_name <- "slice1"
counts_before <- GetAssayData5(spatial, assay = assay_name, layer = "counts")
raw_before <- SpatialCoordinates(spatial, image = image_name, space = "raw")

stopifnot(
  identical(dim(counts_before), c(5000L, 1986L)),
  !anyDuplicated(colnames(counts_before)),
  setequal(colnames(counts_before), raw_before$data$cell_id)
)
raw_xy <- as.matrix(raw_before$data[colnames(counts_before), c("x", "y")])
input_receipt <- data.frame(
  source = "GSE254829 / GSM8058244 / complete bundled object",
  features = nrow(counts_before), observations = ncol(counts_before),
  assay = assay_name, layer = "counts", image = image_name,
  coordinate_space = "raw", coordinate_units = "full-resolution pixels"
)
input_receipt
#>                                             source features observations
#> 1 GSE254829 / GSM8058244 / complete bundled object     5000         1986
#>     assay  layer  image coordinate_space       coordinate_units
#> 1 Spatial counts slice1              raw full-resolution pixels
raw_before$source
#> $image
#> [1] "slice1"
#>
#> $coord.cols
#> [1] "x" "y"
#>
#> $image_policy
#> [1] "strict"
#>
#> $coordinate_space
#> [1] "raw"
#>
#> $image_class
#> [1] "VisiumV2"
#> attr(,"package")
#> [1] "Seurat"
#>
#> $image_width
#> [1] 600
#>
#> $image_height
#> [1] 340
#>
#> $scale_name
#> [1] "lowres"
#>
#> $scale_factor
#> [1] 0.078125
#>
#> $coordinate_contract_version
#> [1] 3

The dimension assertion protects this particular example. Replace it with your own expected dimensions when adapting the code. The ID check is general: stop and resolve any mismatch instead of assigning coordinates by row position.

Round-trip through SpatialExperiment

spe <- srt_to_spe(
  spatial, assay = assay_name, layer = "counts", image = image_name,
  include_meta = TRUE, coordinate_space = "raw"
)
spatial_roundtrip <- spe_to_srt(spe, assay = assay_name, layer = "scop_input")
counts_after <- GetAssayData5(spatial_roundtrip, assay = assay_name, layer = "counts")

# Coordinate columns are checked separately because reverse conversion writes x/y.
metadata_columns <- setdiff(colnames(spatial@meta.data), c("x", "y"))
spe_checks <- c(
  observation_order = identical(colnames(spatial_roundtrip), colnames(counts_before)),
  feature_order = identical(rownames(counts_after), rownames(counts_before)),
  counts = isTRUE(all.equal(counts_after, counts_before)),
  metadata = isTRUE(all.equal(
    spatial_roundtrip@meta.data[, metadata_columns, drop = FALSE],
    spatial@meta.data[, metadata_columns, drop = FALSE]
  )),
  raw_coordinates = isTRUE(all.equal(
    as.matrix(spatial_roundtrip@meta.data[, c("x", "y")]), raw_xy,
    check.attributes = FALSE
  )),
  provenance = identical(
    spatial_roundtrip@misc$spatial_coordinate_import,
    S4Vectors::metadata(spe)$scop_spatial_coordinates
  )
)
data.frame(check = names(spe_checks), passed = unname(spe_checks))
#>               check passed
#> 1 observation_order   TRUE
#> 2     feature_order   TRUE
#> 3            counts   TRUE
#> 4          metadata   TRUE
#> 5   raw_coordinates   TRUE
#> 6        provenance   TRUE
stopifnot(all(spe_checks))
SummarizedExperiment::assayNames(spe)
#> [1] "scop_input"
SeuratObject::Images(spatial_roundtrip)
#> NULL

Every displayed check must be TRUE. An empty image list is expected: the lightweight conversion keeps coordinates in metadata but does not reconstruct the raster. The selected count matrix and original metadata are checked, not just the number of spots. Existing Seurat analysis results are outside this bridge’s contract; keep the original object if you need them.

stopifnot("GCG" %in% rownames(counts_after))
SpatialSpotPlot(
  spatial_roundtrip, image = NULL, coord.cols = c("x", "y"),
  features = "GCG", assay = assay_name, layer = "counts",
  overlay_image = FALSE, palette = "YlGnBu", legend.title = "GCG counts"
)

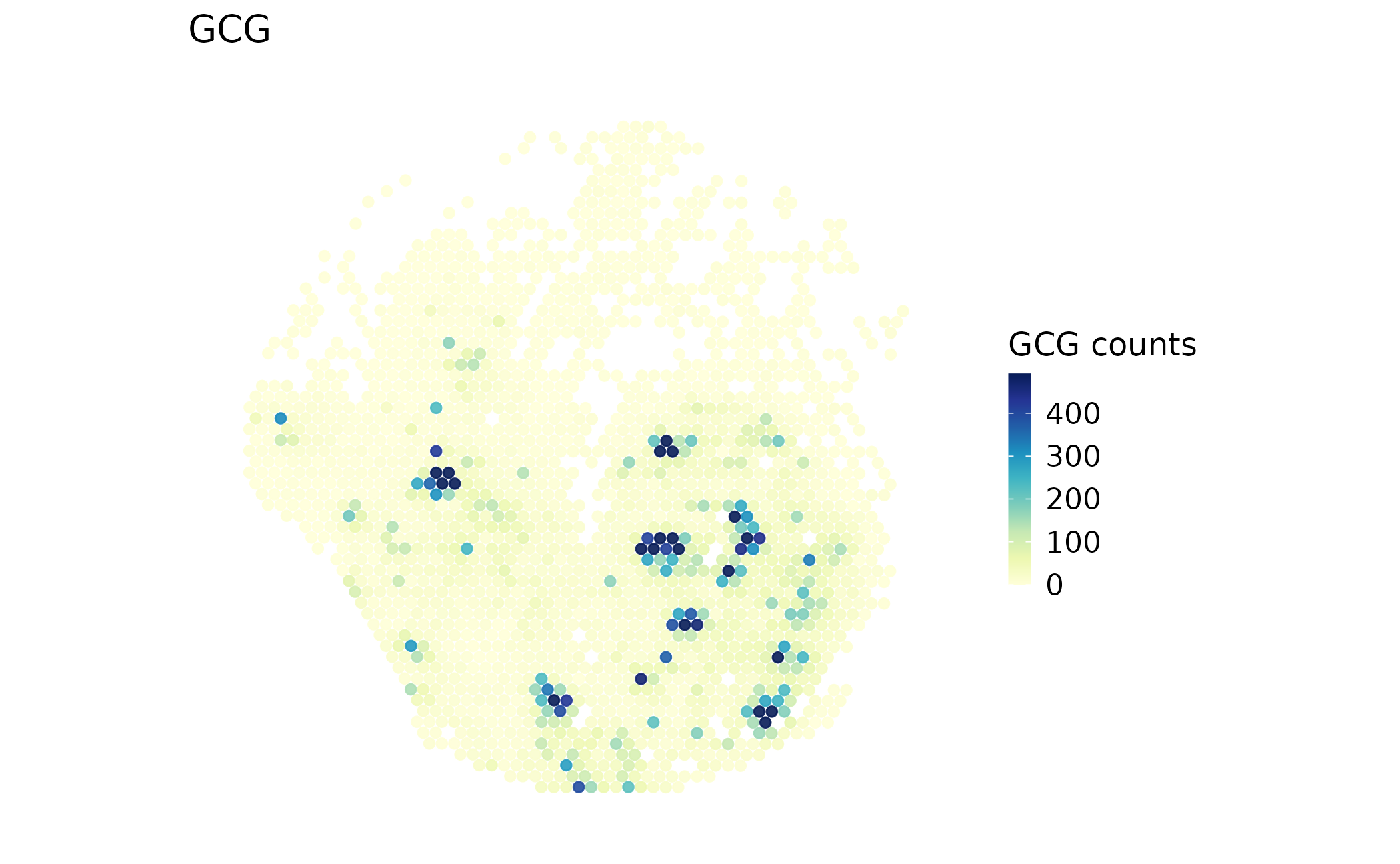

This is the measured GCG count map after conversion, drawn from preserved raw coordinates without a tissue raster. A spatially localized signal is not by itself a cell-type assignment, and the count range is not normalized expression.

Verify a legacy display export can be inverted

Use raw coordinates for new distance-sensitive work. This compatibility check is useful when an older workflow explicitly expects display-scaled and vertically flipped coordinates.

spe_display <- srt_to_spe(
  spatial, assay = assay_name, layer = "counts", image = image_name,
  coordinate_space = "legacy_display"
)
display_provenance <- S4Vectors::metadata(spe_display)$scop_spatial_coordinates
display_provenance
#> $source
#> $source$image
#> [1] "slice1"
#>
#> $source$coord.cols
#> [1] "x" "y"
#>
#> $source$image_policy
#> [1] "strict"
#>
#> $source$coordinate_space
#> [1] "legacy_display"
#>
#> $source$image_class
#> [1] "VisiumV2"
#> attr(,"package")
#> [1] "Seurat"
#>
#> $source$image_width
#> [1] 600
#>
#> $source$image_height
#> [1] 340
#>
#> $source$scale_name
#> [1] "lowres"
#>
#> $source$scale_factor
#> [1] 0.078125
#>
#> $source$coordinate_contract_version
#> [1] 3
#>
#>
#> $transform
#> $transform$scale
#> [1] 0.078125
#>
#> $transform$scale_name
#> [1] "lowres"
#>
#> $transform$y_flip
#> [1] TRUE
#>
#> $transform$image_width
#> [1] 600
#>
#> $transform$image_height
#> [1] 340
#>
#> $transform$raw_x_col
#> [1] "x"
#>
#> $transform$raw_y_col
#> [1] "y"
#>
#> $transform$image_class
#> [1] "VisiumV2"
#> attr(,"package")
#> [1] "Seurat"
#>
#> $transform$coordinate_contract_version
#> [1] 3
from_display <- spe_to_srt(spe_display, assay = assay_name, layer = "scop_input")
display_error <- max(abs(
  as.matrix(from_display@meta.data[, c("x", "y")]) - raw_xy
))
data.frame(max_raw_coordinate_error = display_error, tolerance = 1e-8)
#>   max_raw_coordinate_error tolerance
#> 1                        0     1e-08
stopifnot(is.finite(display_error), display_error < 1e-8)

The error is measured in original pixel units and should be zero or numerical round-off. Preserve the saved transform when passing this object to another person. External SpatialExperiment objects without SCOP provenance are treated as raw coordinates in their supplied units; verify those units yourself.

Optional: round-trip through Giotto

SCOP chooses the official GiottoClass v4/v5 converters for the installed Seurat major version. A single image can be resolved automatically; multiple images require image =. Normalize before export because the official reverse converter needs a nonempty normalized layer. This does not replace raw counts.

The following code is evaluated: it records backend availability, runs the conversion if compatible converters are installed, and reports any error. It never installs a backend during rendering. A missing backend is reported as not_run, and a failed preservation check as failed, never completed. Install GiottoClass separately following the official Giotto instructions and rerun this section to validate your exact package versions.

seurat_major <- as.integer(strsplit(as.character(packageVersion("Seurat")), "\\.")[[1]][1])
converter_suffix <- if (seurat_major >= 5L) "V5" else "V4"
converters <- paste0(c("seuratToGiotto", "giottoToSeurat"), converter_suffix)
giotto_available <- requireNamespace("GiottoClass", quietly = TRUE)
giotto_compatible <- giotto_available && all(vapply(
  converters, exists, logical(1), envir = asNamespace("GiottoClass"), inherits = FALSE
))
giotto_result <- NULL
giotto_receipt <- data.frame(
  backend = "GiottoClass",
  version = if (giotto_available) as.character(packageVersion("GiottoClass")) else NA_character_,
  status = "not_run",
  reason = if (!giotto_available) "GiottoClass is not installed" else
    if (!giotto_compatible) "Required converters are absent" else "Ready to attempt conversion"
)

if (giotto_compatible) {
  giotto_result <- tryCatch({
    giotto_input <- Seurat::NormalizeData(spatial, assay = assay_name, verbose = FALSE)
    native <- srt_to_giotto(giotto_input, image = image_name)
    restored <- giotto_to_srt(native)
    restored_assay <- SeuratObject::DefaultAssay(restored)
    restored_counts <- GetAssayData5(restored, assay = restored_assay, layer = "counts")
    stopifnot(setequal(colnames(restored_counts), colnames(counts_before)),
              setequal(rownames(restored_counts), rownames(counts_before)))
    restored_counts <- restored_counts[rownames(counts_before), colnames(counts_before)]
    restored_xy <- SpatialCoordinates(restored, space = "raw")$data
    checks <- c(
      counts = isTRUE(all.equal(restored_counts, counts_before)),
      coda_annotation = "coda_label" %in% colnames(restored@meta.data) &&
        identical(as.character(restored@meta.data[colnames(counts_before), "coda_label"]),
                  as.character(spatial$coda_label)),
      coordinates = isTRUE(all.equal(
        as.matrix(restored_xy[colnames(counts_before), c("x", "y")]), raw_xy,
        check.attributes = FALSE
      ))
    )
    print(data.frame(check = names(checks), passed = unname(checks)))
    stopifnot(all(checks))
    list(native = native, restored = restored, assay = restored_assay, checks = checks,
         metadata_columns_retained = intersect(colnames(spatial@meta.data), colnames(restored@meta.data)),
         metadata_columns_missing = setdiff(colnames(spatial@meta.data), colnames(restored@meta.data)))
  }, error = function(e) e)
  if (inherits(giotto_result, "error")) {
    giotto_receipt$status <- "failed"
    giotto_receipt$reason <- conditionMessage(giotto_result)
    giotto_result <- NULL
  } else {
    giotto_receipt$status <- "completed"
    giotto_receipt$reason <- "Conversion and count, annotation, and coordinate checks passed"
    print(giotto_result[c("metadata_columns_retained", "metadata_columns_missing")])
  }
}
giotto_receipt
#>       backend version  status                       reason
#> 1 GiottoClass    <NA> not_run GiottoClass is not installed

A successful conversion receipt verifies those named checks only. Read the metadata retention lists before relying on other columns. If this section reports failed, resolve its message and rerun before using the converted object for analysis. Even completed does not mean that Giotto’s own analysis or plotting pipeline has run.

Save, reload, and recheck

Save both the portable object and the receipt. The example uses a temporary directory so a build does not overwrite your work. For a persistent analysis, set SCOP_BRIDGE_OUTPUT_DIR to a new project directory before running it.

output_dir <- Sys.getenv("SCOP_BRIDGE_OUTPUT_DIR", file.path(tempdir(), "scop-bridges"))
dir.create(output_dir, recursive = TRUE, showWarnings = FALSE)
bridge_file <- file.path(output_dir, "panin-spatialexperiment-roundtrip.rds")
bridge_bundle <- list(
  spatial_experiment = spe, seurat = spatial_roundtrip,
  input = input_receipt, checks = spe_checks, giotto_receipt = giotto_receipt,
  giotto = giotto_result, session = utils::sessionInfo()
)
saveRDS(bridge_bundle, bridge_file)
reloaded <- readRDS(bridge_file)
reload_checks <- c(
  file_exists = file.exists(bridge_file),
  observations = identical(colnames(reloaded$seurat), colnames(spatial)),
  counts = isTRUE(all.equal(
    GetAssayData5(reloaded$seurat, assay = assay_name, layer = "counts"), counts_before
  )),
  coordinates = identical(SpatialExperiment::spatialCoords(reloaded$spatial_experiment),
                         SpatialExperiment::spatialCoords(spe)),
  receipt = identical(reloaded$checks, spe_checks)
)
data.frame(check = names(reload_checks), passed = unname(reload_checks))
#>          check passed
#> 1  file_exists   TRUE
#> 2 observations   TRUE
#> 3       counts   TRUE
#> 4  coordinates   TRUE
#> 5      receipt   TRUE
stopifnot(all(reload_checks))

The saved seurat object can be passed directly to the earlier plot call. Reloading or plotting does not rerun conversion, normalization, or a model.

Adapt to your data and recover from errors

Replace the data() input with your imported Seurat object and choose one image with SeuratObject::Images(). Select its matching assay and inspect SeuratObject::Layers() before choosing counts.
Keep the entire selected image unless exclusion has a scientific/QC reason. With a multi-image source, derive expected IDs from the selected image and compare the exported object with that same image’s expression columns.
Replace the fixed example dimension check and GCG with your expected dimensions and an actual feature. Keep the ID, count, and coordinate checks.
Record platform, units, sample, assay/layer, image, input selection, package versions, and whether each bridge completed. Keep the original Seurat object for images and analysis fields that do not cross the bridge.

Symptom	Check and recovery
SpatialExperiment is missing	Install it with Bioconductor in your analysis environment, restart R, and rerun the input section
Multiple spatial images	Supply one valid `image =`; export each sample separately rather than merging unrelated coordinate systems
IDs do not match	Compare `colnames()` and coordinate row names; align by verified IDs, never rename by row position
An assay/layer is missing	Inspect `Assays()`/`Layers()`; restore the intended raw count source instead of relabeling normalized data
Display import needs a scale or height	Restore the original SCOP provenance or export raw coordinates again; do not invent a transform
Giotto conversion fails on normalized data	Run `NormalizeData()` on the input count assay and check compatible converter exports and versions
No image after the SPE round-trip	Expected: use metadata coordinates with `image = NULL`, or retain the original Seurat object when a raster is required

data.frame(
  package = c("scop", "Seurat", "SeuratObject", "SpatialExperiment"),
  version = vapply(c("scop", "Seurat", "SeuratObject", "SpatialExperiment"),
                   function(p) as.character(utils::packageVersion(p)), character(1))
)
#>                             package version
#> scop                           scop   0.9.2
#> Seurat                       Seurat   5.6.0
#> SeuratObject           SeuratObject   5.4.0
#> SpatialExperiment SpatialExperiment  1.22.0

Build provenance

This receipt belongs to the actual rendered source and retained observations. Save it beside the exported object when adapting the workflow.

source_revision <- Sys.getenv("GITHUB_SHA")
if (!nzchar(source_revision) && nzchar(Sys.which("git"))) {
  source_revision <- system2("git", c("rev-parse", "HEAD"), stdout = TRUE,
                             stderr = FALSE)[1]
}
build_receipt <- data.frame(
  article = "spatial-framework-bridges", built_utc = format(Sys.time(), tz = "UTC", usetz = TRUE),
  source_revision = source_revision,
  source_has_local_changes = if (nzchar(Sys.which("git")))
    length(system2("git", c("status", "--porcelain"), stdout = TRUE,
                   stderr = FALSE)) > 0 else NA,
  article_md5 = unname(tools::md5sum(knitr::current_input(dir = TRUE))),
  R = as.character(getRversion()), scop = as.character(utils::packageVersion("scop")),
  retained_observations = ncol(spatial_roundtrip), genes = nrow(spatial_roundtrip)
)
build_receipt
#>                     article               built_utc
#> 1 spatial-framework-bridges 2026-10-12 00:10:29 UTC
#>                            source_revision source_has_local_changes
#> 1 083f5f31e37220a9e9a5b0110e63ea4ed3f49317                    FALSE
#>                        article_md5     R  scop retained_observations genes
#> 1 0fc22a1b03cb3a6e77a033e054ff09d1 4.6.1 0.9.2                  1986  5000
utils::write.csv(build_receipt, file.path(output_dir, "build-receipt.csv"), row.names = FALSE)
writeLines(capture.output(sessionInfo()), file.path(output_dir, "session-info.txt"))
