Run multi-sample spatial integration

Source: R/RunSpatialIntegration.R
RunSpatialIntegration.Rd

Integrate multi-slice or multi-sample spatial transcriptomics data with an optional spatial backend and store standardized embeddings, domains, and aligned coordinates in a Seurat object.

Usage

RunSpatialIntegration(
  object,
  method = "PRECAST",
  sample.by = NULL,
  assay = NULL,
  layer = "counts",
  coord.cols = c("col", "row"),
  features = NULL,
  image = NULL,
  reduction.name = NULL,
  cluster_colname = NULL,
  tool_name = "SpatialIntegration",
  store_results = TRUE,
  verbose = TRUE,
  coordinate_space = c("raw", "legacy_display"),
  ...
)

Arguments

object

A merged spatial Seurat object or a list of spatial Seurat objects.

method

Spatial integration backend.

sample.by

Metadata column identifying samples for a merged Seurat object. For list input, list names are copied into this column.

assay

Assay to use. NULL uses the default assay.

layer

Assay layer used for expression values.

coord.cols

Metadata coordinate columns used when no image is available.

features

Features to score. If NULL, current variable features are used; if no variable features are present, all assay features are used.


Spatial image name. Required when multiple images are present; a single image is selected automatically when NULL.

reduction.name

Name of the integrated embedding reduction. If NULL, a method-specific name is used.

cluster_colname

Metadata column used for spatial domain labels. If NULL, a method-specific name is used.

tool_name

Name used to store detailed results in srt@tools.

store_results

Whether to store the full result in srt@tools.

verbose

Whether to print the message. Default is TRUE.

coordinate_space

Coordinate system used for integration distances and aligned-coordinate input. The default is raw acquisition coordinates; "legacy_display" remains an explicit compatibility option.

...

Additional backend-specific arguments.

Value

A Seurat object with spatial integration results stored in metadata, reductions, and srt@tools[[tool_name]].

Examples

data(visium_human_pancreas_sub)
spatial <- visium_human_pancreas_sub
spatial$sample <- ifelse(spatial$y > stats::median(spatial$y), "slice_a", "slice_b")
spatial$SpatialIntegration_PRECAST_domain <- factor(
  paste0("domain_", (seq_len(ncol(spatial)) - 1) %% 3 + 1)
)
embedding <- cbind(
  SI_1 = as.numeric(scale(spatial$x)),
  SI_2 = as.numeric(scale(spatial$y))
)
rownames(embedding) <- colnames(spatial)
spatial[["SpatialIntegration_PRECAST"]] <- SeuratObject::CreateDimReducObject(
  embeddings = embedding,
  key = "SI_",
  assay = "Spatial"
)
spatial$SpatialIntegration_PRECAST_aligned_x <- spatial$x +
  ifelse(spatial$sample == "slice_b", -stats::median(spatial$x), 0)
spatial$SpatialIntegration_PRECAST_aligned_y <- spatial$y
integration_parameters <- list(
  method = "PRECAST",
  coordinate_contract_version = 2L,
  sample.by = "sample",
  assay = "Spatial",
  layer = "counts",
  coord.cols = c("x", "y"),
  reduction.name = "SpatialIntegration_PRECAST",
  cluster_colname = "SpatialIntegration_PRECAST_domain",
  aligned_coord_cols = c(
    "SpatialIntegration_PRECAST_aligned_x",
    "SpatialIntegration_PRECAST_aligned_y"
  )
)
spatial@tools$SpatialIntegration <- list(
  active_method = "PRECAST",
  methods = list(PRECAST = list(
    coordinate_contract_version = 2L,
    parameters = integration_parameters
  )),
  parameters = integration_parameters,
  samples = unique(spatial$sample),
  cells = colnames(spatial)
)

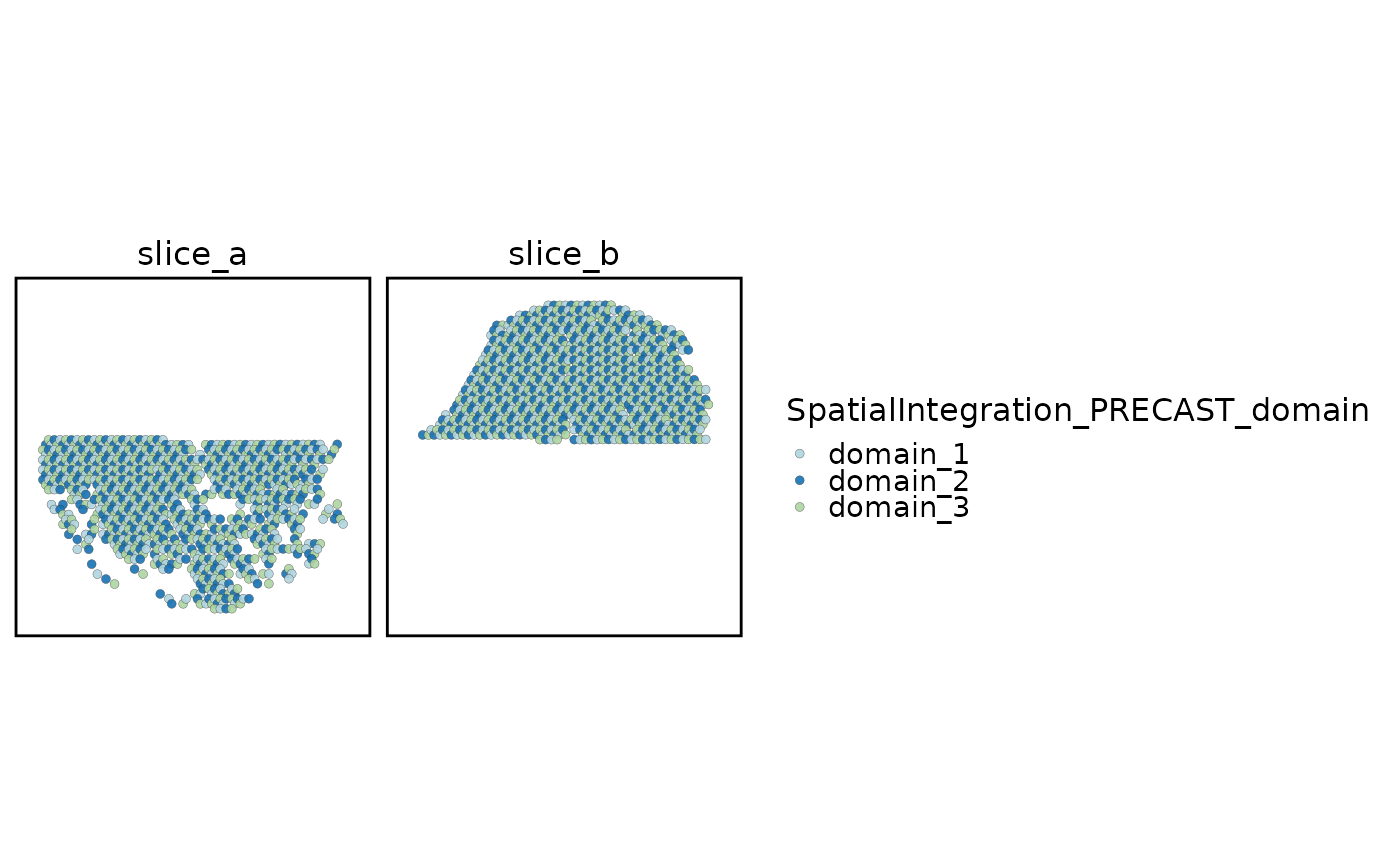

SpatialIntegrationPlot(
  spatial,
  plot_type = "spatial",
  overlay_image = FALSE,
  coord.cols = c("x", "y")
)

SpatialIntegrationPlot(spatial, plot_type = "embedding")

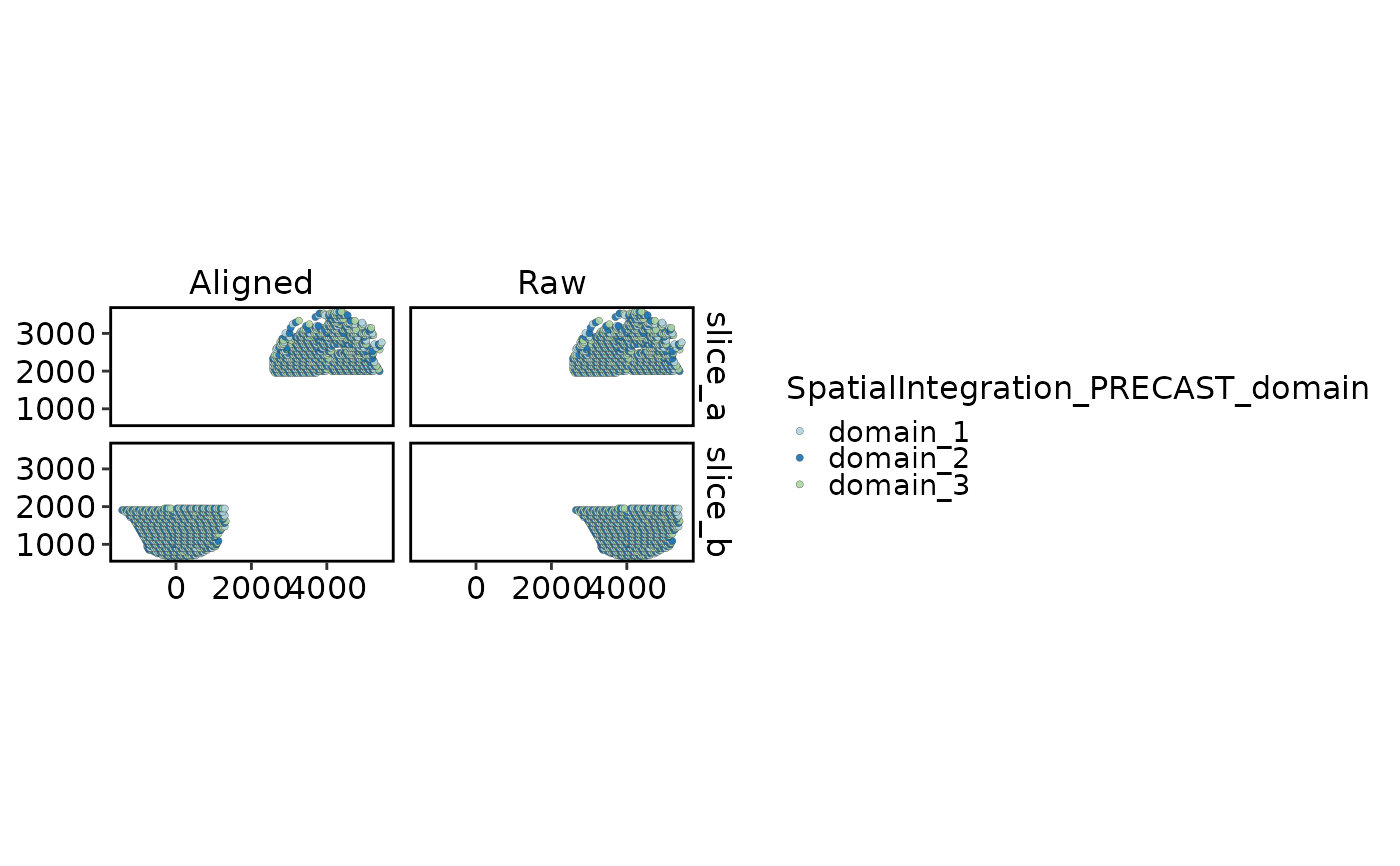

SpatialIntegrationPlot(spatial, plot_type = "alignment")

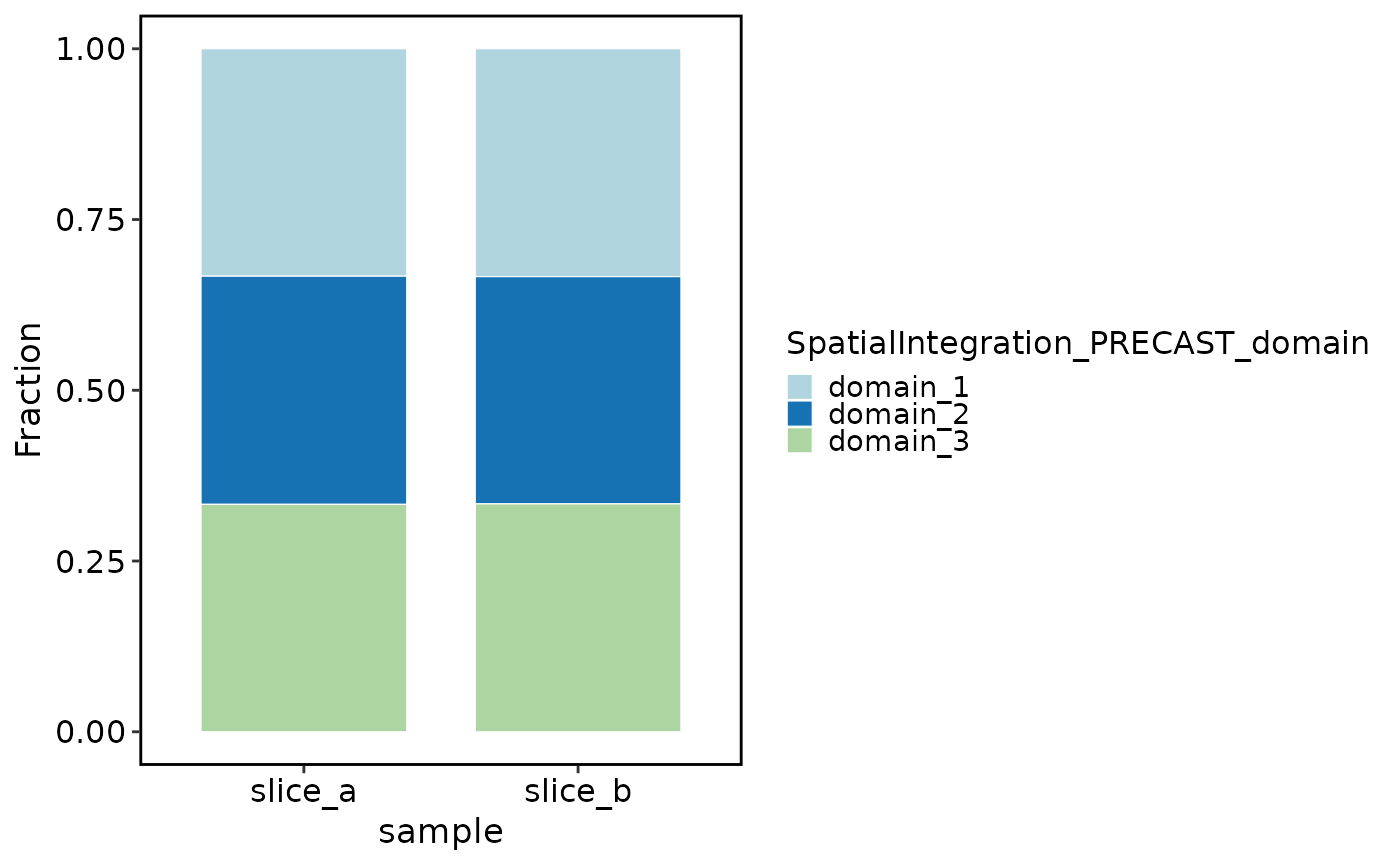

SpatialIntegrationPlot(spatial, plot_type = "composition")


srt <- RunSpatialIntegration(
  object = spatial,
  method = "PRECAST",
  sample.by = "sample",
  assay = "Spatial",
  coord.cols = c("x", "y"),
  features = rownames(spatial)[1:300],
  verbose = FALSE
)
#> Warning: Not validating Centroids objects
#> Warning: Not validating Centroids objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating Seurat objects
#> Warning: Not validating Centroids objects
#> Warning: Not validating Centroids objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating Seurat objects
#> Filter spots and features from Raw count data...
#> Warning: Not validating Centroids objects
#> Warning: Not validating Centroids objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating Seurat objects
#> Warning: Not validating Centroids objects
#> Warning: Not validating Centroids objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating Seurat objects
#>
#>
#> 2026-08-30 05:42:21.901928 : ***** Filtering step for raw count data finished!, 0.004 mins elapsed.
#> Select the variable genes for each data batch...
#> 2026-08-30 05:42:21.905223 : ***** Gene selection finished!, 0 mins elapsed.
#> Warning: Not validating Centroids objects
#> Warning: Not validating Centroids objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating Seurat objects
#> Warning: Not validating Centroids objects
#> Warning: Not validating Centroids objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating Seurat objects
#> Filter spots and features from SVGs(HVGs) count data...
#> Warning: Not validating Centroids objects
#> Warning: Not validating Centroids objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating Seurat objects
#> Warning: Not validating Centroids objects
#> Warning: Not validating Centroids objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating FOV objects
#> Warning: Not validating Seurat objects
#> Normalizing layer: counts
#> Normalizing layer: counts
#> 2026-08-30 05:42:26.421101 : ***** Filtering step for count data with variable genes finished!, 0.073 mins elapsed.
#> Neighbors were identified for 0 out of 991 spots.
#> Neighbors were identified for 0 out of 995 spots.
#> -----Intergrative data info.: 2 samples, 300 genes X 1986 spots------
#> -----Numbers of spots are: 991, 995-----
#> Starting computing initial values using mclust ...
#> Warning: restarting interrupted promise evaluation
#> Warning: internal error 1 in R_decompress1 with libdeflate
#> Error in RunHarmony(princ1$PCs, meta_data = data.frame(batch = factor(sampleID)),     vars_use = "batch", verbose = FALSE): lazy-load database '/home/runner/work/_temp/Library/harmony/R/harmony.rdb' is corrupt
