NMF similarity heatmap

Usage

NMFHeatmap(
  srt,
  plot_type = c("cells", "features"),
  reduction = "nmf",
  dims = NULL,
  cells = NULL,
  features = NULL,
  similarity_metric = "cosine",
  cell_annotation = NULL,
  feature_annotation = NULL,
  assay = NULL,
  border = TRUE,
  heatmap_border = NULL,
  cell_annotation_border = NULL,
  feature_annotation_border = NULL,
  heatmap_border_palcolor = "black",
  cell_annotation_border_palcolor = "black",
  feature_annotation_border_palcolor = "black",
  heatmap_border_size = 1,
  cell_annotation_border_size = 1,
  feature_annotation_border_size = 1,
  show_row_names = FALSE,
  row_names_wrap = NULL,
  show_column_names = FALSE,
  row_names_side = "left",
  column_names_side = "top",
  row_names_rot = 0,
  column_names_rot = 90,
  row_title = NULL,
  column_title = NULL,
  anno_terms = FALSE,
  anno_keys = FALSE,
  anno_features = FALSE,
  terms_width = grid::unit(4, "in"),
  terms_stat_width = grid::unit(1.35, "in"),
  terms_fontsize = 8,
  terms_stat = "none",
  terms_stat_digits = 2,
  terms_stat_label = "value",
  terms_stat_axis = FALSE,
  terms_stat_background_palcolor = NULL,
  terms_stat_border = NULL,
  terms_stat_border_palcolor = NULL,
  terms_stat_border_size = NULL,
  terms_stat_label_palcolor = NULL,
  terms_group_background = FALSE,
  terms_background_palcolor = "grey98",
  terms_background_alpha = 1,
  terms_border = TRUE,
  terms_border_palcolor = "black",
  terms_border_size = 0.8,
  terms_text_palcolor = NULL,
  terms_bar_palcolor = NULL,
  keys_width = grid::unit(2, "in"),
  keys_fontsize = c(6, 10),
  features_width = grid::unit(2, "in"),
  features_fontsize = c(6, 10),
  IDtype = "symbol",
  species = "Homo_sapiens",
  db_update = FALSE,
  db_version = "latest",
  db_combine = FALSE,
  convert_species = FALSE,
  Ensembl_version = NULL,
  mirror = NULL,
  db = "GO_BP",
  TERM2GENE = NULL,
  TERM2NAME = NULL,
  minGSSize = 10,
  maxGSSize = 500,
  GO_simplify = FALSE,
  GO_simplify_cutoff = "p.adjust < 0.05",
  simplify_method = "Wang",
  simplify_similarityCutoff = 0.7,
  pvalueCutoff = NULL,
  padjustCutoff = 0.05,
  topTerm = 5,
  show_termid = FALSE,
  topWord = 20,
  words_excluded = NULL,
  heatmap_palette = "simspec",
  heatmap_palcolor = c("#ffffe5", "#d9f0d3", "#74add1", "#2166ac"),
  heatmap_limits = NULL,
  cluster_palette = "simspec",
  cluster_palcolor = NULL,
  cell_annotation_palette = "Chinese",
  cell_annotation_palcolor = NULL,
  feature_annotation_palette = "Dark2",
  feature_annotation_palcolor = NULL,
  use_raster = NULL,
  raster_device = "png",
  raster_by_magick = FALSE,
  height = NULL,
  width = NULL,
  units = "inch",
  cores = 1,
  seed = 11,
  legend.position = "right",
  ht_params = list(),
  verbose = TRUE
)

Arguments

srt

A Seurat object containing an NMF dimensional reduction.

plot_type

Plot type. "cells" plots cell/spot similarity from NMF embeddings. "features" plots feature similarity from NMF loadings.

reduction

Name of the NMF reduction.

dims

Dimensions/components from the NMF reduction to use. If NULL, all available dimensions are used.

cells

Cells/spots to include when plot_type = "cells".

features

Features to include when plot_type = "features". If NULL, variable features shared with the loading matrix are used; if none are found, all features in the loading matrix are used.

similarity_metric

Similarity metric.

cell_annotation

Metadata columns to show as column annotations in cell mode.

feature_annotation

Feature metadata columns to show as column annotations in feature mode.

assay

Assay to use. NULL uses the default assay.

border

Draw borders. Kept for compatibility; more specific *_border arguments inherit this when NULL.

heatmap_border, cell_annotation_border, feature_annotation_border

Borders for the heatmap body and annotations. NULL inherits border.

heatmap_border_palcolor, cell_annotation_border_palcolor, feature_annotation_border_palcolor

Border colors when the matching border argument is TRUE.

heatmap_border_size, cell_annotation_border_size, feature_annotation_border_size

Border line widths when the matching border argument is TRUE.

show_row_names

Whether to draw row/column names for the heatmap body.

row_names_wrap

Maximum number of characters per displayed row-name line. When set to a positive number, underscores are displayed as spaces and labels are wrapped without changing the underlying item identifiers. NULL disables wrapping.

show_column_names

Whether to draw row/column names for the heatmap body.

row_names_side, column_names_side, row_names_rot, column_names_rot

Name placement.

row_title

The title for the row names in the heatmap. If not provided, the default is to use the query grouping variable.

column_title

The title for the column names in the heatmap. Default is to use the reference grouping variable.

anno_terms, anno_keys, anno_features

Enrichment annotations.

terms_width, terms_stat_width, terms_fontsize

Term annotation size.

terms_stat

Enrichment statistic for term bars: "none", "score" (-log10 of the active p-value), or an enrichment column such as "p.adjust".

terms_stat_digits, terms_stat_label, terms_stat_axis

Statistic labels ("none", "value", "significance", "both") and shared axis.

terms_stat_background_palcolor, terms_stat_border, terms_stat_border_palcolor, terms_stat_border_size, terms_stat_label_palcolor

Statistic-panel appearance. NULL inherits the matching terms_* setting.

terms_group_background, terms_background_palcolor, terms_background_alpha, terms_border, terms_border_palcolor, terms_border_size, terms_text_palcolor, terms_bar_palcolor

Term-block appearance. terms_text_palcolor = NULL maps text to enrichment significance; terms_bar_palcolor = NULL matches bar color to term text.

keys_width, keys_fontsize, features_width, features_fontsize

Key and feature annotations.

IDtype, species, db_combine, mirror, db, TERM2GENE, TERM2NAME, minGSSize, maxGSSize

Gene-set database (see PrepareDB).

db_update

Force a refresh. FALSE loads the cache when available.

db_version

Database version to retrieve.

convert_species

Use a species-converted database when the annotation is missing for species.

Ensembl_version

Ensembl version. NULL uses the latest.

GO_simplify, GO_simplify_cutoff, simplify_method, simplify_similarityCutoff

GO simplification.

pvalueCutoff, padjustCutoff, topTerm, show_termid, topWord, words_excluded

Enrichment filters.

heatmap_palette

Palette used for CNV heatmap values.

heatmap_palcolor

Palette used for CNV heatmap values.

heatmap_limits

Numeric breaks for the heatmap color scale. If NULL, defaults to c(0, 0.35, 0.75, 1).

cluster_palette

Palette used for NMF cluster/program annotations.

cluster_palcolor

Optional custom colors for NMF cluster/program annotations.

cell_annotation_palette

Color palette for cell-type annotations.

cell_annotation_palcolor

Custom colors for cell-type annotations.

feature_annotation_palette

Color palette for feature annotations.

feature_annotation_palcolor

Custom colors for feature annotations.

use_raster, raster_device, raster_by_magick

Raster device (NULL chooses automatically).

width, height, units

Heatmap size. NULL sizes from matrix dimensions.

cores

The number of worker processes to use for parallelization. Default is 1.

seed

Optional integer seed. When supplied, every input receives a deterministic independent L'Ecuyer-CMRG random-number stream, making results reproducible across worker counts and scheduling order. The caller's random number state is restored when the call finishes.

legend.position

Legend side ("right", "left", "top", "bottom"). Gap to the heatmap grows automatically when long row names are on the right.

ht_params

Extra arguments passed to ComplexHeatmap::Heatmap, overriding defaults.

verbose

Whether to print the message. Default is TRUE.

Value

A list with the following elements:

  • plot: The heatmap plot as a patchwork/ggplot object.

  • similarity_matrix: The ordered similarity matrix used for plotting.

  • nmf_cluster: The ordered NMF cluster/program assignment.

  • order: The ordered row/column names.

  • metadata: Ordered cell or feature metadata used for annotations.

  • enrichment: Enrichment results for feature mode when requested, otherwise NULL.

See also

RunNMF

Examples

library(Matrix)
data(pancreas_sub)
pancreas_sub <- NormalizeData(pancreas_sub)
pancreas_sub <- FindVariableFeatures(
  pancreas_sub,
  nfeatures = 1000
)
pancreas_sub <- RunNMF(
  pancreas_sub,
  features = SeuratObject::VariableFeatures(pancreas_sub),
  nbes = 5,
  maxit = 50
)
#> ℹ [2026-08-30 04:35:29] Running NMF...
#> ℹ BE_ 1
#> ℹ Positive:  Spp1, Clu, Ttr, Krt18, Ptma, Rpl12, Sparc, Dbi, Gapdh, Mt1
#> ℹ 	   Cd24a, Mgst1, H19, Pebp1, Myl12a, Cldn3, Clps, Atp1b1, Sox4, Gnas
#> ℹ 	   Vim, Ambp, Cdkn1c, Jun, Mdk, Serpinh1, Eno1, Anxa2, Acot1, Tmsb4x
#> ℹ Negative:  Klk11, Gm42984, Fam198b, Lrrc6, Fam71b, Il1r2, Serpini1, Gng4, Cdca2, Sulf2
#> ℹ 	   Pgf, Ucn3, Dusp26, Entpd3, Gm13373, Megf11, Acvr1c, Krtap16-1, Mmel1, Nrp2
#> ℹ 	   Pabpn1l, Sept3, Hepacam2, Rnf138rt1, Scn9a, Tex36, Syt13, Bace2, Igsf21, Ripply3
#> ℹ BE_ 2
#> ℹ Positive:  Gnas, Pyy, Rbp4, Chgb, Chga, Cpe, Slc25a5, Hmgn3, Ttr, Pcsk1n
#> ℹ 	   Bex2, Isl1, Aplp1, Fam183b, Rap1b, Glud1, Lrpprc, Fev, Slc38a5, Mid1ip1
#> ℹ 	   Akr1c19, Cck, Gch1, Tm4sf4, Ptma, Map1b, Sec61b, Clps, Tuba1a, 1700086L19Rik
#> ℹ Negative:  Klk11, Gsg1l, 1810034E14Rik, Tmem100, Fam71b, Fscn1, Cdca2, Traip, Gm8113, C2cd4c
#> ℹ 	   Plpp2, Sulf2, Col1a1, Megf11, Bcl2, Gm28875, Ugt2b35, Ugt2b36, A730098A19Rik, Serpinb6b
#> ℹ 	   Eya2, AA986860, Palmd, Vps8, Crybb1, Pabpn1l, Il18, Gjb1, Pdlim1, Ctsh
#> ℹ BE_ 3
#> ℹ Positive:  Tmsb4x, Neurog3, Mdk, Cck, Sox4, Btg2, Btbd17, Gadd45a, Ptma, Selm
#> ℹ 	   Krt7, Gnas, Hn1, Cdkn1a, Hes6, Cd24a, Smarcd2, Camk2n1, Rpl12, Cotl1
#> ℹ 	   Cldn6, Map1b, Clps, Aplp1, Tubb3, Pax4, Slc25a5, Gpx2, Igfbpl1, Nkx6-1
#> ℹ Negative:  Gm6410, RP23-182F18.2, Doc2a, Fam198b, Nlgn1, Afap1l2, Lrrc6, Hoxb2, Tmem100, Il1r2
#> ℹ 	   Wdr86, Angptl4, Cdca2, Traip, Slc16a10, Ucn3, Dusp26, Entpd3, Gmfg, Acvr1c
#> ℹ 	   Col27a1, Kctd8, Mdm1, C530044C16Rik, Gm28875, Adora2b, Ugt2b35, Ugt2b36, Fosb, A730098A19Rik
#> ℹ BE_ 4
#> ℹ Positive:  Iapp, Pyy, Nnat, Ins2, Ins1, Rbp4, Gnas, Ttr, Dlk1, Sec61b
#> ℹ 	   Pcsk2, Calr, Ppp1r1a, Hspa5, Pdia6, Sdf2l1, Hsp90b1, Gng12, Tuba1a, Pcsk1n
#> ℹ 	   Hadh, Cpe, Clps, Ptma, Mafb, Chgb, Scg2, Gapdh, Fkbp2, Chga
#> ℹ Negative:  Klk11, Fam198b, Hoxb2, Tmem100, Serpini1, Lrrn1, Angptl4, Traip, Cmtm3, Pgf
#> ℹ 	   Gm13373, Gmfg, Mmel1, Nrp2, Ugt2b35, Ugt2b36, A730098A19Rik, Serpinb6b, Tyrobp, AA986860
#> ℹ 	   Palmd, Lmo4, Gjb1, Pdlim1, Scara3, Tex36, P2ry14, Cdc42ep1, Ramp3, Fam159a
#> ℹ BE_ 5
#> ℹ Positive:  Tuba1b, Hmgb2, Tubb5, 2810417H13Rik, Ptma, H2afz, Ran, H2afx, Ranbp1, Tubb4b
#> ℹ 	   Birc5, Cks1b, Mif, Slc25a5, H1f0, Spc24, Hn1, Gapdh, Cks2, Mdk
#> ℹ 	   Rpl12, Cdk1, Spp1, Dut, Hmgb1, Snrpd1, Anp32b, Ldha, Cdca3, Hspe1
#> ℹ Negative:  Gm6410, RP23-182F18.2, Doc2a, Gsg1l, Nlgn1, Afap1l2, Lrrc6, 1810034E14Rik, Tmem100, Fam71b
#> ℹ 	   Gng4, Prodh2, Lingo1, Mpzl1, Angptl4, Slc16a10, Gm8113, C2cd4c, Dpysl3, Entpd3
#> ℹ 	   Col1a1, Rem2, Acvr1c, Bcl2, Kctd8, C530044C16Rik, Gm28875, Adora2b, C1qa, Serpinb6b
#> ✔ [2026-08-30 04:40:04] NMF compute completed
ht_cells <- NMFHeatmap(
  pancreas_sub,
  plot_type = "cells",
  cell_annotation = "CellType"
)
#> ℹ [2026-08-30 04:40:04] `NMFHeatmap()` input: 1000 cells x 5 NMF dimensions. Computing a 1000 x 1000 similarity matrix (~0.01 GiB dense numeric matrix).
#> ℹ [2026-08-30 04:40:04] Ordering `NMFHeatmap()` rows and columns ...
#> ℹ [2026-08-30 04:40:04] Building ComplexHeatmap object for `NMFHeatmap()` ...
#> ℹ [2026-08-30 04:40:04] Calculating `NMFHeatmap()` render size ...
#> ℹ [2026-08-30 04:40:04] Drawing `NMFHeatmap()`; this can take time for large similarity matrices ...
#> ℹ [2026-08-30 04:40:05] Assembling `NMFHeatmap()` plot object ...

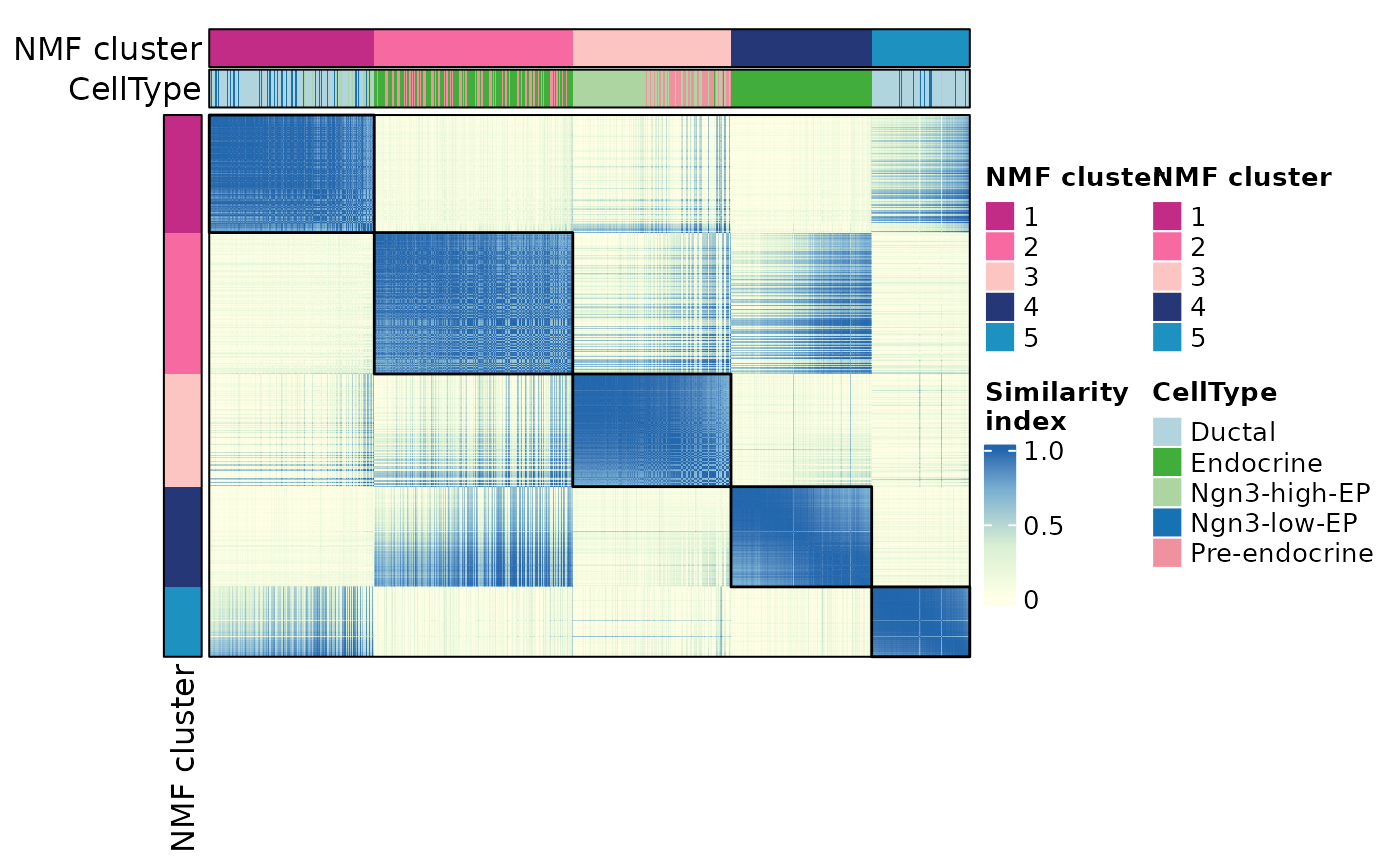

ht_cells$plot


ht_features <- NMFHeatmap(
  pancreas_sub,
  plot_type = "features"
)
#> ℹ [2026-08-30 04:40:06] `NMFHeatmap()` input: 1000 features x 5 NMF dimensions. Computing a 1000 x 1000 similarity matrix (~0.01 GiB dense numeric matrix).
#> ℹ [2026-08-30 04:40:06] Ordering `NMFHeatmap()` rows and columns ...
#> ℹ [2026-08-30 04:40:06] Building ComplexHeatmap object for `NMFHeatmap()` ...
#> ℹ [2026-08-30 04:40:06] Calculating `NMFHeatmap()` render size ...
#> ℹ [2026-08-30 04:40:06] Drawing `NMFHeatmap()`; this can take time for large similarity matrices ...
#> ℹ [2026-08-30 04:40:07] Assembling `NMFHeatmap()` plot object ...

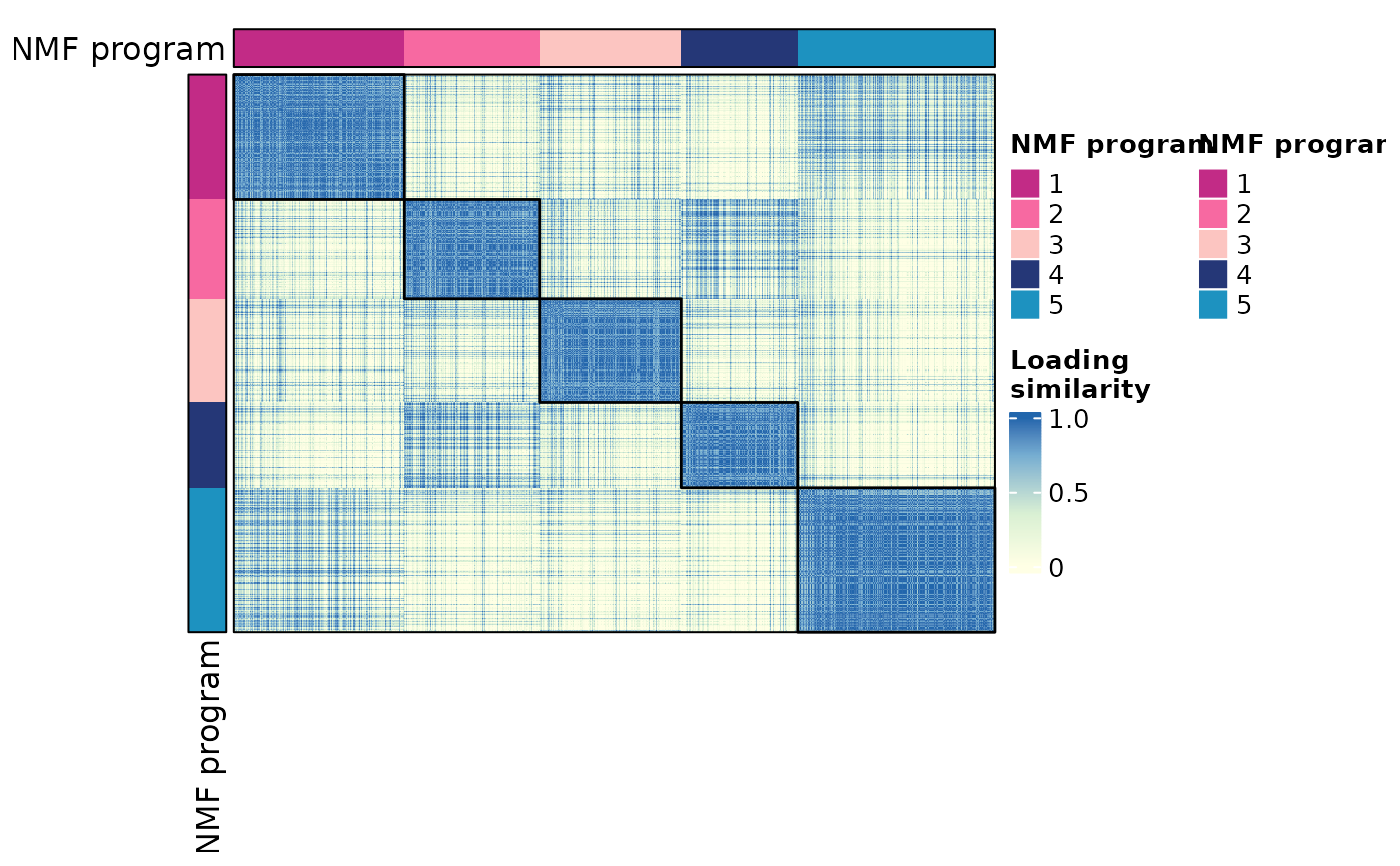

ht_features$plot
