Single-cell reference mapping with Symphony method

Usage

RunSymphonyMap(
  srt_query,
  srt_ref,
  query_assay = NULL,
  ref_assay = srt_ref[[ref_pca]]@assay.used,
  ref_pca = NULL,
  ref_harmony = NULL,
  ref_umap = NULL,
  ref_group = NULL,
  projection_method = c("model", "knn"),
  nn_method = NULL,
  k = 30,
  distance_metric = "cosine",
  vote_fun = "mean"
)

Arguments

srt_query: An object of class Seurat storing the query cells.
srt_ref: An object of class Seurat storing the reference cells.
query_assay: A character string specifying the assay name for the query cells. If not provided, the default assay for the query object will be used.
ref_assay: A character string specifying the assay name for the reference cells. If not provided, the default assay for the reference object will be used.
ref_pca: The PCA reduction in the reference object to use for calculating the distance metric.
ref_harmony: The Harmony reduction in the reference object to use for calculating the distance metric.
ref_umap: A character string specifying the name of the UMAP reduction in the reference object. If not provided, the first UMAP reduction found in the reference object will be used.
ref_group: A character string specifying a metadata column name in the reference object to use for grouping.
projection_method: A character string specifying the projection method to use. Options are "model" and "knn". If "model" is selected, the function will try to use a pre-trained UMAP model in the reference object for projection. If "knn" is selected, the function will directly find the nearest neighbors using the distance metric.
nn_method: A character string specifying the nearest neighbor search method to use. Options are "raw", "annoy", and "rann". If "raw" is selected, the function will use the brute-force method to find the nearest neighbors. If "annoy" is selected, the function will use the Annoy library for approximate nearest neighbor search. If "rann" is selected, the function will use the RANN library for approximate nearest neighbor search. If not provided, the function will choose the search method based on the size of the query and reference datasets.
k: A number of nearest neighbors to find for each cell in the query object.
distance_metric: A character string specifying the distance metric to use for calculating the pairwise distances between cells. Options include: "pearson", "spearman", "cosine", "correlation", "jaccard", "ejaccard", "dice", "edice", "hamman", "simple matching", and "faith". Additional distance metrics can also be used, such as "euclidean", "manhattan", "hamming", etc.
vote_fun: A character string specifying the function to be used for aggregating the nearest neighbors in the reference object. Options are "mean", "median", "sum", "min", "max", "sd", "var", etc. If not provided, the default is "mean".

Examples

data(panc8_sub)
panc8_sub <- standard_scop(panc8_sub)
#> ℹ [2025-11-13 12:41:46] Start standard scop workflow...
#> ℹ [2025-11-13 12:41:47] Checking a list of <Seurat> object...
#> ! [2025-11-13 12:41:47] Data 1/1 of the `srt_list` is "unknown"
#> ℹ [2025-11-13 12:41:47] Perform `NormalizeData()` with `normalization.method = 'LogNormalize'` on the data 1/1 of the `srt_list`...
#> ℹ [2025-11-13 12:41:50] Perform `Seurat::FindVariableFeatures()` on the data 1/1 of the `srt_list`...
#> ℹ [2025-11-13 12:41:50] Use the separate HVF from srt_list
#> ℹ [2025-11-13 12:41:50] Number of available HVF: 2000
#> ℹ [2025-11-13 12:41:50] Finished check
#> ℹ [2025-11-13 12:41:51] Perform `Seurat::ScaleData()`
#> ℹ [2025-11-13 12:41:51] Perform pca linear dimension reduction
#> StandardPC_ 1
#> Positive:  CHGA, PCSK1N, G6PC2, PCSK1, IAPP, ARFGEF3, CRYBA2, PRUNE2, CDKN1C, SORL1
#> 	   EDN3, CADM1, FXYD2, ELMO1, HADH, PAPPA2, GRIA3, RBP4, DLK1, ANXA6
#> 	   HMGN2, GNAZ, AMPD2, IGF2, ROBO2, DNAJA4, PDK4, SEPT3, CD99L2, SYT17
#> Negative:  IFITM3, ZFP36L1, SOX4, ANXA4, KRT7, TPM1, PMEPA1, SERPING1, TM4SF1, CD44
#> 	   CDC42EP1, TMSB10, NFIB, SAT1, SDC4, SPTBN1, LCN2, KRT18, PDZK1IP1, MSN
#> 	   SMAD3, CLDN10, CFTR, NOTCH2, KRT19, CTSH, SERPINA5, FLRT2, C3, EPS8
#> StandardPC_ 2
#> Positive:  SPARC, COL4A1, COL15A1, COL1A2, COL3A1, PXDN, PDGFRB, COL5A1, BGN, COL5A2
#> 	   COL1A1, LAMA4, TIMP3, COL6A2, IGFBP4, AEBP1, SFRP2, THBS2, FBN1, COL6A1
#> 	   CDH11, VCAN, SERPINE1, WNT5A, FN1, TPM2, FMOD, MMP2, SNAI1, DCN
#> Negative:  KRT8, SPINK1, PRSS1, ELF3, GATM, MUC1, KRT18, CPA2, CTRB1, SDC4
#> 	   PRSS3, CLDN4, LCN2, ANPEP, CPA1, PDZK1IP1, PLA2G1B, CTRC, CPB1, PNLIP
#> 	   KLK1, CELA2A, CELA3A, KRT7, GSTA1, CD44, PNLIPRP1, PNLIPRP2, CELA3B, GSTA2
#> StandardPC_ 3
#> Positive:  FTO, SORL1, TBC1D24, CASR, PCYOX1, UTRN, ADH5, ENPP5, RNF14, PHKB
#> 	   MAP1A, C2CD5, TTC17, RAB22A, PRR14L, AP3B1, MTR, HERC1, EXPH5, SMCHD1
#> 	   ROBO1, ABHD10, PRUNE2, SPEN, BTBD3, IBTK, ARFGEF2, TSC1, PARP4, RMND5A
#> Negative:  HSPB1, CELA3A, CELA3B, CLPS, CTRB1, SYCN, CELA2A, EIF4A1, VIM, PNLIPRP1
#> 	   PLA2G1B, KLK1, CPA1, CTRC, DDIT4, PLTP, BGN, DYNLL2, ANGPTL4, COL6A2
#> 	   IFITM1, IGFBP4, IGFBP2, TMSB10, PRSS1, CTRL, PDGFRB, CPA2, PRSS3, PXDN
#> StandardPC_ 4
#> Positive:  CPA2, PNLIP, PRSS1, CTRC, CPA1, CPB1, PLA2G1B, PNLIPRP2, PRSS3, BCAT1
#> 	   CEL, KLK1, CELA2A, CTRB1, PNLIPRP1, SPINK1, GSTA2, MGST1, CELA3A, LDHB
#> 	   ALB, CTRL, CELA3B, CLPS, ALDOB, REG3G, FAM129A, GSTA1, SYCN, CBS
#> Negative:  CFTR, MMP7, KRT19, SERPINA5, TINAGL1, AQP1, SPP1, SERPING1, PMEPA1, KRT23
#> 	   ALDH1A3, TSPAN8, PROM1, IGFBP7, VCAM1, LGALS4, ONECUT2, TRPV6, CCL2, ANXA3
#> 	   TNFAIP2, CTSH, SDC1, SLC3A1, CLDN10, ANXA9, CCND1, KRT80, VNN1, PDGFD
#> StandardPC_ 5
#> Positive:  COL5A1, COL1A2, COL1A1, SFRP2, COL5A2, COL3A1, VCAN, FN1, PDGFRB, THBS2
#> 	   FMOD, BGN, ANTXR1, MXRA8, COL6A1, AEBP1, TPM2, CDH11, DCN, ISLR
#> 	   TGFB3, COL6A2, LTBP2, DDR2, EDNRA, ANO1, LTBP1, GFPT2, WNT5A, HEYL
#> Negative:  CD93, PLVAP, PODXL, ACVRL1, ESAM, S1PR1, CXCR4, ECSCR, DYSF, CALCRL
#> 	   ADGRF5, STC1, CD34, AFAP1L1, IFI27, SH3BP5, ACKR3, ANGPT2, DLL4, MMRN2
#> 	   MCAM, PNP, IL3RA, SPARCL1, TCF4, FAM198B, RAPGEF5, ARHGAP31, P2RY6, F2RL3
#> ℹ [2025-11-13 12:41:53] Perform `Seurat::FindClusters()` with louvain and `cluster_resolution` = 0.6
#> ℹ [2025-11-13 12:41:53] Reorder clusters...
#> ℹ [2025-11-13 12:41:53] Perform umap nonlinear dimension reduction
#> ℹ [2025-11-13 12:41:53] Non-linear dimensionality reduction (umap) using (Standardpca) dims (1-50) as input
#> ℹ [2025-11-13 12:41:53] UMAP will return its model
#> ℹ [2025-11-13 12:41:58] Non-linear dimensionality reduction (umap) using (Standardpca) dims (1-50) as input
#> ℹ [2025-11-13 12:41:58] UMAP will return its model
#> ✔ [2025-11-13 12:42:03] Run scop standard workflow done
srt_ref <- panc8_sub[, panc8_sub$tech != "fluidigmc1"]
srt_query <- panc8_sub[, panc8_sub$tech == "fluidigmc1"]
srt_ref <- integration_scop(
  srt_ref,
  batch = "tech",
  integration_method = "Harmony"
)
#> ◌ [2025-11-13 12:42:03] Run Harmony integration...
#> ℹ [2025-11-13 12:42:03] Spliting `srt_merge` into `srt_list` by column "tech"...
#> ℹ [2025-11-13 12:42:04] Checking a list of <Seurat> object...
#> ℹ [2025-11-13 12:42:05] Data 1/4 of the `srt_list` has been log-normalized
#> ℹ [2025-11-13 12:42:05] Perform `Seurat::FindVariableFeatures()` on the data 1/4 of the `srt_list`...
#> ℹ [2025-11-13 12:42:05] Data 2/4 of the `srt_list` has been log-normalized
#> ℹ [2025-11-13 12:42:05] Perform `Seurat::FindVariableFeatures()` on the data 2/4 of the `srt_list`...
#> ℹ [2025-11-13 12:42:06] Data 3/4 of the `srt_list` has been log-normalized
#> ℹ [2025-11-13 12:42:06] Perform `Seurat::FindVariableFeatures()` on the data 3/4 of the `srt_list`...
#> ℹ [2025-11-13 12:42:06] Data 4/4 of the `srt_list` has been log-normalized
#> ℹ [2025-11-13 12:42:06] Perform `Seurat::FindVariableFeatures()` on the data 4/4 of the `srt_list`...
#> ℹ [2025-11-13 12:42:07] Use the separate HVF from srt_list
#> ℹ [2025-11-13 12:42:07] Number of available HVF: 2000
#> ℹ [2025-11-13 12:42:07] Finished check
#> ℹ [2025-11-13 12:42:09] Perform `Seurat::ScaleData()`
#> ℹ [2025-11-13 12:42:10] Perform linear dimension reduction("pca")
#> ℹ [2025-11-13 12:42:11] Perform Harmony integration
#> ℹ [2025-11-13 12:42:11] Harmony integration using "Harmonypca", dims:1-10 as input
#> ✔ [2025-11-13 12:42:11] harmony installed successfully
#> ℹ [2025-11-13 12:42:12] Perform FindClusters (louvain)
#> ℹ [2025-11-13 12:42:12] Reorder clusters...
#> ℹ [2025-11-13 12:42:12] Perform nonlinear dimension reduction (umap)
#> ℹ [2025-11-13 12:42:12] Non-linear dimensionality reduction (umap) using (Harmony) dims (1-10) as input
#> ℹ [2025-11-13 12:42:17] Non-linear dimensionality reduction (umap) using (Harmony) dims (1-10) as input
#> ✔ [2025-11-13 12:42:24] Run Harmony integration done
CellDimPlot(srt_ref, group.by = c("celltype", "tech"))


# Projection
srt_query <- RunSymphonyMap(
  srt_query = srt_query,
  srt_ref = srt_ref,
  ref_pca = "Harmonypca",
  ref_harmony = "Harmony",
  ref_umap = "HarmonyUMAP2D"
)
#> ◌ [2025-11-13 12:42:24] Installing: symphony...
#>
#> → Will install 2 packages.
#> → All 2 packages (0 B) are cached.
#> + RANN       2.6.2
#> + symphony   0.1.2 [bld][cmp] (GitHub: 91e2ca1)
#> ✔ All system requirements are already installed.
#>
#> ℹ No downloads are needed, 2 pkgs are cached
#> ✔ Got symphony 0.1.2 (source) (4.19 MB)
#> ℹ Installing system requirements
#> ℹ Executing `sudo sh -c apt-get -y update`
#> Get:1 file:/etc/apt/apt-mirrors.txt Mirrorlist [144 B]
#> Hit:6 https://packages.microsoft.com/repos/azure-cli noble InRelease
#> Hit:7 https://packages.microsoft.com/ubuntu/24.04/prod noble InRelease
#> Hit:2 http://azure.archive.ubuntu.com/ubuntu noble InRelease
#> Hit:3 http://azure.archive.ubuntu.com/ubuntu noble-updates InRelease
#> Hit:4 http://azure.archive.ubuntu.com/ubuntu noble-backports InRelease
#> Hit:5 http://azure.archive.ubuntu.com/ubuntu noble-security InRelease
#> Reading package lists...
#> ℹ Executing `sudo sh -c apt-get -y install libicu-dev`
#> Reading package lists...
#> Building dependency tree...
#> Reading state information...
#> libicu-dev is already the newest version (74.2-1ubuntu3.1).
#> 0 upgraded, 0 newly installed, 0 to remove and 23 not upgraded.
#> ✔ Installed RANN 2.6.2  (1s)
#> ℹ Packaging symphony 0.1.2
#> ✔ Packaged symphony 0.1.2 (713ms)
#> ℹ Building symphony 0.1.2
#> ✔ Built symphony 0.1.2 (20.8s)
#> ✔ Installed symphony 0.1.2 (github::immunogenomics/symphony@91e2ca1) (49ms)
#> ✔ 1 pkg + 44 deps: kept 43, added 2, dld 1 (NA B) [28.4s]
#> ✔ [2025-11-13 12:42:53] immunogenomics/symphony installed successfully
#> ℹ [2025-11-13 12:42:53] Data type is log-normalized
#> ℹ [2025-11-13 12:42:53] Detected srt_query data type: "log_normalized_counts"
#> ℹ [2025-11-13 12:42:54] Data type is log-normalized
#> ℹ [2025-11-13 12:42:54] Detected srt_ref data type: "log_normalized_counts"
#> ℹ [2025-11-13 12:42:54] Build reference
#> ℹ [2025-11-13 12:42:54] Saved embeddings
#> ℹ [2025-11-13 12:42:54] Saved soft cluster assignments
#> ℹ [2025-11-13 12:42:54] Saved variable gene information for 2000 genes
#> ℹ [2025-11-13 12:42:54] Saved PCA loadings
#> ℹ [2025-11-13 12:42:54] Saved metadata
#> ℹ [2025-11-13 12:42:54] Calculate final L2 normalized reference centroids (Y_cos)
#> ℹ [2025-11-13 12:42:54] Calculate reference compression terms (Nr and C)
#> ℹ [2025-11-13 12:42:54] Run mapQuery
#> ℹ [2025-11-13 12:42:54] Scaling and synchronizing query gene expression
#> ℹ [2025-11-13 12:42:54] Found 2000 reference variable genes in query dataset
#> ℹ [2025-11-13 12:42:54] Project query cells using reference gene loadings
#> ℹ [2025-11-13 12:42:54] Clustering query cells to reference centroids
#> ℹ [2025-11-13 12:42:54] Correcting query batch effects
#> ℹ [2025-11-13 12:42:54] Run UMAP projection
#> ℹ [2025-11-13 12:42:54] Use the reduction to calculate distance metric
#> ℹ [2025-11-13 12:42:54] Use raw method to find neighbors
#> ℹ [2025-11-13 12:42:54] Running UMAP projection
#> ℹ [2025-11-13 12:42:54] Run SymphonyMap finished

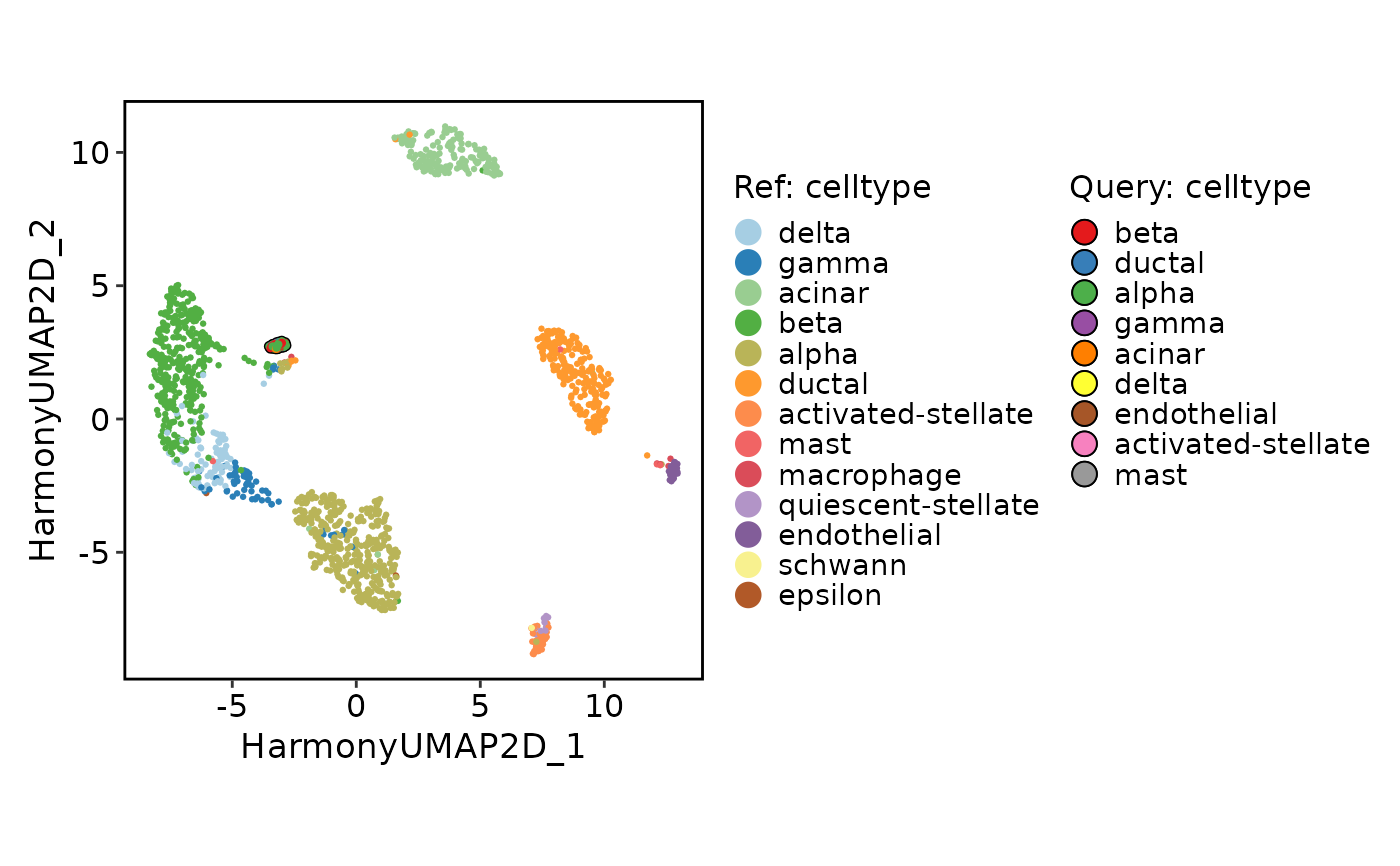

ProjectionPlot(
  srt_query = srt_query,
  srt_ref = srt_ref,
  query_group = "celltype",
  ref_group = "celltype"
)
#> Scale for x is already present.
#> Adding another scale for x, which will replace the existing scale.
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.
