Single-cell reference mapping with Seurat method

Single-cell reference mapping with Seurat method

Usage

RunSeuratMap(
  srt_query,
  srt_ref,
  query_assay = NULL,
  ref_pca = NULL,
  ref_assay = srt_ref[[ref_pca]]@assay.used,
  ref_dims = 1:30,
  ref_umap = NULL,
  ref_group = NULL,
  normalization.method = "LogNormalize",
  reduction_project_method = "pcaproject",
  k.anchor = 5,
  k.filter = 200,
  k.score = 30,
  k.weight = 100,
  projection_method = c("model", "knn"),
  nn_method = NULL,
  k = 30,
  distance_metric = "cosine",
  vote_fun = "mean"
)

Arguments

srt_query

An object of class Seurat storing the query cells.

srt_ref

An object of class Seurat storing the reference cells.

query_assay

A character string specifying the assay name for the query cells. If not provided, the default assay for the query object will be used.

ref_pca

A character string specifying the name of the PCA reduction in the reference object to use for calculating the distance metric.

ref_assay

A character string specifying the assay name for the reference cells. If not provided, the default assay for the reference object will be used.

ref_dims

A numeric vector specifying the dimension indices from the reference reduction to be used for calculating the distance metric.

ref_umap

A character string specifying the name of the UMAP reduction in the reference object. If not provided, the first UMAP reduction found in the reference object will be used.

ref_group

A character string specifying a metadata column name in the reference object to use for grouping.

normalization.method

The normalization method to use. Default is `"LogNormalize"`.

reduction_project_method

Dimensional reduction to perform when finding anchors. Default is `"pcaproject"`.

k.anchor

How many neighbors (k) to use when finding anchors. Default is `5`.

k.filter

How many neighbors (k) to use when filtering anchors. Set to NA to turn off filtering. Default is `200`.

k.score

How many neighbors (k) to use when scoring anchors. Default is `30`.

k.weight

Number of neighbors to consider when weighting anchors. Default is `100`.

projection_method

A character string specifying the projection method to use. Options are "model" and "knn". If "model" is selected, the function will try to use a pre-trained UMAP model in the reference object for projection. If "knn" is selected, the function will directly find the nearest neighbors using the distance metric.

nn_method

A character string specifying the nearest neighbor search method to use. Options are "raw", "annoy", and "rann". If "raw" is selected, the function will use the brute-force method to find the nearest neighbors. If "annoy" is selected, the function will use the Annoy library for approximate nearest neighbor search. If "rann" is selected, the function will use the RANN library for approximate nearest neighbor search. If not provided, the function will choose the search method based on the size of the query and reference datasets.

k

A number of nearest neighbors to find for each cell in the query object.

distance_metric

A character string specifying the distance metric to use for calculating the pairwise distances between cells. Options include: "pearson", "spearman", "cosine", "correlation", "jaccard", "ejaccard", "dice", "edice", "hamman", "simple matching", and "faith". Additional distance metrics can also be used, such as "euclidean", "manhattan", "hamming", etc.

vote_fun

A character string specifying the function to be used for aggregating the nearest neighbors in the reference object. Options are "mean", "median", "sum", "min", "max", "sd", "var", etc. If not provided, the default is "mean".

Examples

data(panc8_sub)
panc8_sub <- standard_scop(panc8_sub)
#> ℹ [2025-11-13 12:31:50] Start standard scop workflow...
#> ℹ [2025-11-13 12:31:50] Checking a list of <Seurat> object...
#> ! [2025-11-13 12:31:50] Data 1/1 of the `srt_list` is "unknown"
#> ℹ [2025-11-13 12:31:50] Perform `NormalizeData()` with `normalization.method = 'LogNormalize'` on the data 1/1 of the `srt_list`...
#> ℹ [2025-11-13 12:31:53] Perform `Seurat::FindVariableFeatures()` on the data 1/1 of the `srt_list`...
#> ℹ [2025-11-13 12:31:53] Use the separate HVF from srt_list
#> ℹ [2025-11-13 12:31:53] Number of available HVF: 2000
#> ℹ [2025-11-13 12:31:54] Finished check
#> ℹ [2025-11-13 12:31:54] Perform `Seurat::ScaleData()`
#> ℹ [2025-11-13 12:31:54] Perform pca linear dimension reduction
#> StandardPC_ 1
#> Positive:  CHGA, PCSK1N, G6PC2, PCSK1, IAPP, ARFGEF3, CRYBA2, PRUNE2, CDKN1C, SORL1
#> 	   EDN3, CADM1, FXYD2, ELMO1, HADH, PAPPA2, GRIA3, RBP4, DLK1, ANXA6
#> 	   HMGN2, GNAZ, AMPD2, IGF2, ROBO2, DNAJA4, PDK4, SEPT3, CD99L2, SYT17
#> Negative:  IFITM3, ZFP36L1, SOX4, ANXA4, KRT7, TPM1, PMEPA1, SERPING1, TM4SF1, CD44
#> 	   CDC42EP1, TMSB10, NFIB, SAT1, SDC4, SPTBN1, LCN2, KRT18, PDZK1IP1, MSN
#> 	   SMAD3, CLDN10, CFTR, NOTCH2, KRT19, CTSH, SERPINA5, FLRT2, C3, EPS8
#> StandardPC_ 2
#> Positive:  SPARC, COL4A1, COL15A1, COL1A2, COL3A1, PXDN, PDGFRB, COL5A1, BGN, COL5A2
#> 	   COL1A1, LAMA4, TIMP3, COL6A2, IGFBP4, AEBP1, SFRP2, THBS2, FBN1, COL6A1
#> 	   CDH11, VCAN, SERPINE1, WNT5A, FN1, TPM2, FMOD, MMP2, SNAI1, DCN
#> Negative:  KRT8, SPINK1, PRSS1, ELF3, GATM, MUC1, KRT18, CPA2, CTRB1, SDC4
#> 	   PRSS3, CLDN4, LCN2, ANPEP, CPA1, PDZK1IP1, PLA2G1B, CTRC, CPB1, PNLIP
#> 	   KLK1, CELA2A, CELA3A, KRT7, GSTA1, CD44, PNLIPRP1, PNLIPRP2, CELA3B, GSTA2
#> StandardPC_ 3
#> Positive:  FTO, SORL1, TBC1D24, CASR, PCYOX1, UTRN, ADH5, ENPP5, RNF14, PHKB
#> 	   MAP1A, C2CD5, TTC17, RAB22A, PRR14L, AP3B1, MTR, HERC1, EXPH5, SMCHD1
#> 	   ROBO1, ABHD10, PRUNE2, SPEN, BTBD3, IBTK, ARFGEF2, TSC1, PARP4, RMND5A
#> Negative:  HSPB1, CELA3A, CELA3B, CLPS, CTRB1, SYCN, CELA2A, EIF4A1, VIM, PNLIPRP1
#> 	   PLA2G1B, KLK1, CPA1, CTRC, DDIT4, PLTP, BGN, DYNLL2, ANGPTL4, COL6A2
#> 	   IFITM1, IGFBP4, IGFBP2, TMSB10, PRSS1, CTRL, PDGFRB, CPA2, PRSS3, PXDN
#> StandardPC_ 4
#> Positive:  CPA2, PNLIP, PRSS1, CTRC, CPA1, CPB1, PLA2G1B, PNLIPRP2, PRSS3, BCAT1
#> 	   CEL, KLK1, CELA2A, CTRB1, PNLIPRP1, SPINK1, GSTA2, MGST1, CELA3A, LDHB
#> 	   ALB, CTRL, CELA3B, CLPS, ALDOB, REG3G, FAM129A, GSTA1, SYCN, CBS
#> Negative:  CFTR, MMP7, KRT19, SERPINA5, TINAGL1, AQP1, SPP1, SERPING1, PMEPA1, KRT23
#> 	   ALDH1A3, TSPAN8, PROM1, IGFBP7, VCAM1, LGALS4, ONECUT2, TRPV6, CCL2, ANXA3
#> 	   TNFAIP2, CTSH, SDC1, SLC3A1, CLDN10, ANXA9, CCND1, KRT80, VNN1, PDGFD
#> StandardPC_ 5
#> Positive:  COL5A1, COL1A2, COL1A1, SFRP2, COL5A2, COL3A1, VCAN, FN1, PDGFRB, THBS2
#> 	   FMOD, BGN, ANTXR1, MXRA8, COL6A1, AEBP1, TPM2, CDH11, DCN, ISLR
#> 	   TGFB3, COL6A2, LTBP2, DDR2, EDNRA, ANO1, LTBP1, GFPT2, WNT5A, HEYL
#> Negative:  CD93, PLVAP, PODXL, ACVRL1, ESAM, S1PR1, CXCR4, ECSCR, DYSF, CALCRL
#> 	   ADGRF5, STC1, CD34, AFAP1L1, IFI27, SH3BP5, ACKR3, ANGPT2, DLL4, MMRN2
#> 	   MCAM, PNP, IL3RA, SPARCL1, TCF4, FAM198B, RAPGEF5, ARHGAP31, P2RY6, F2RL3
#> ℹ [2025-11-13 12:31:56] Perform `Seurat::FindClusters()` with louvain and `cluster_resolution` = 0.6
#> ℹ [2025-11-13 12:31:56] Reorder clusters...
#> ℹ [2025-11-13 12:31:56] Perform umap nonlinear dimension reduction
#> ℹ [2025-11-13 12:31:56] Non-linear dimensionality reduction (umap) using (Standardpca) dims (1-50) as input
#> ℹ [2025-11-13 12:31:56] UMAP will return its model
#> ℹ [2025-11-13 12:32:01] Non-linear dimensionality reduction (umap) using (Standardpca) dims (1-50) as input
#> ℹ [2025-11-13 12:32:01] UMAP will return its model
#> ✔ [2025-11-13 12:32:06] Run scop standard workflow done
srt_ref <- panc8_sub[, panc8_sub$tech != "fluidigmc1"]
srt_query <- panc8_sub[, panc8_sub$tech == "fluidigmc1"]
srt_ref <- integration_scop(
  srt_ref,
  batch = "tech",
  integration_method = "Uncorrected"
)
#> ◌ [2025-11-13 12:32:07] Run Uncorrected integration...
#> ℹ [2025-11-13 12:32:07] Spliting `srt_merge` into `srt_list` by column "tech"...
#> ℹ [2025-11-13 12:32:08] Checking a list of <Seurat> object...
#> ℹ [2025-11-13 12:32:08] Data 1/4 of the `srt_list` has been log-normalized
#> ℹ [2025-11-13 12:32:08] Perform `Seurat::FindVariableFeatures()` on the data 1/4 of the `srt_list`...
#> ℹ [2025-11-13 12:32:08] Data 2/4 of the `srt_list` has been log-normalized
#> ℹ [2025-11-13 12:32:09] Perform `Seurat::FindVariableFeatures()` on the data 2/4 of the `srt_list`...
#> ℹ [2025-11-13 12:32:09] Data 3/4 of the `srt_list` has been log-normalized
#> ℹ [2025-11-13 12:32:09] Perform `Seurat::FindVariableFeatures()` on the data 3/4 of the `srt_list`...
#> ℹ [2025-11-13 12:32:10] Data 4/4 of the `srt_list` has been log-normalized
#> ℹ [2025-11-13 12:32:10] Perform `Seurat::FindVariableFeatures()` on the data 4/4 of the `srt_list`...
#> ℹ [2025-11-13 12:32:10] Use the separate HVF from srt_list
#> ℹ [2025-11-13 12:32:10] Number of available HVF: 2000
#> ℹ [2025-11-13 12:32:11] Finished check
#> ℹ [2025-11-13 12:32:12] Perform Uncorrected integration
#> ℹ [2025-11-13 12:32:13] Perform `Seurat::ScaleData()`
#> ℹ [2025-11-13 12:32:13] Perform linear dimension reduction("pca")
#> ℹ [2025-11-13 12:32:15] Perform FindClusters ("louvain")
#> ℹ [2025-11-13 12:32:15] Reorder clusters...
#> ℹ [2025-11-13 12:32:15] Perform nonlinear dimension reduction ("umap")
#> ℹ [2025-11-13 12:32:15] Non-linear dimensionality reduction (umap) using (Uncorrectedpca) dims (1-10) as input
#> ℹ [2025-11-13 12:32:20] Non-linear dimensionality reduction (umap) using (Uncorrectedpca) dims (1-10) as input
#> ✔ [2025-11-13 12:32:27] Run Uncorrected integration done
CellDimPlot(srt_ref, group.by = c("celltype", "tech"))


# Projection
srt_query <- RunSeuratMap(
  srt_query = srt_query,
  srt_ref = srt_ref,
  ref_pca = "Uncorrectedpca",
  ref_umap = "UncorrectedUMAP2D",
  k.weight = 50
)
#> ℹ [2025-11-13 12:32:27] Data type is log-normalized
#> ℹ [2025-11-13 12:32:27] Detected srt_query data type: log_normalized_counts
#> ℹ [2025-11-13 12:32:28] Data type is log-normalized
#> ℹ [2025-11-13 12:32:28] Detected srt_ref data type: log_normalized_counts
#> ℹ [2025-11-13 12:32:28] Run FindTransferAnchors
#> Projecting cell embeddings
#> Finding neighborhoods
#> Finding anchors
#> 	Found 471 anchors
#> Filtering anchors
#> 	Retained 471 anchors
#> Requested to reuse weights matrix, but no weights found. Computing new weights.
#>
#> Integrating dataset 2 with reference dataset
#> Finding integration vectors
#> Finding integration vector weights
#> Integrating data
#> ℹ [2025-11-13 12:32:33] Run UMAP projection
#> ℹ [2025-11-13 12:32:33] Use the reduction to calculate distance metric
#> ℹ [2025-11-13 12:32:33] Use raw method to find neighbors
#> ℹ [2025-11-13 12:32:33] Running UMAP projection

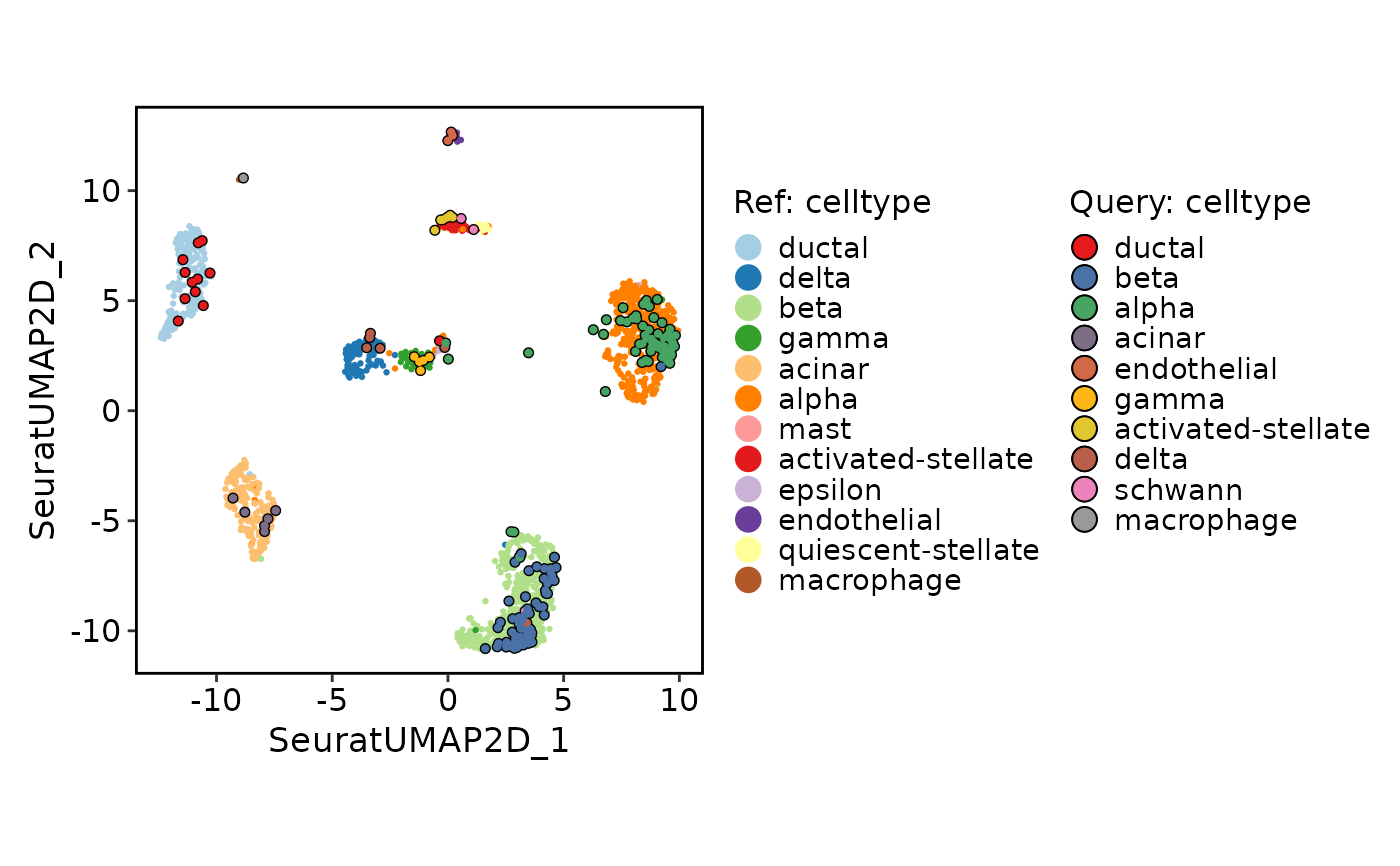

ProjectionPlot(
  srt_query = srt_query,
  srt_ref = srt_ref,
  query_group = "celltype",
  ref_group = "celltype"
)
#> Scale for x is already present.
#> Adding another scale for x, which will replace the existing scale.
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.
