Visualize metacell partitions on a dimensionality reduction

Usage

MetaCellPlot(
  srt,
  reduction = NULL,
  show_cells = FALSE,
  group.by = NULL,
  color.by = NULL,
  dims = c(1, 2),
  label = FALSE,
  palette = "Chinese",
  palcolor = NULL,
  palette_metacell = "Chinese",
  palcolor_metacell = NULL,
  pt.size = 1.2,
  pt.alpha = 1,
  cell.alpha = 1,
  cell.size = 0.7,
  stroke = 0.5,
  show_metacell_size = TRUE,
  metacell_size_range = NULL,
  cell_param = list(),
  metacell_param = list(),
  legend.position = "right",
  legend.direction = "vertical",
  theme_use = "theme_scop",
  theme_args = list(),
  return_layer = FALSE,
  ...
)

Arguments

srt: A Seurat object with metacell results from RunMetaCell().
reduction: Reduction to plot. NULL uses DefaultReduction.
show_cells: Logical. If TRUE, the original single-cell points are drawn as a semi-transparent background layer behind the metacell centroids.
group.by: Metadata column(s) used to color cells.
color.by: Metadata column in the metacell Seurat used to color centroids. If NULL, metacell centroids use one fixed color.
dims: Length-2 vector of dimensions to plot.
label: Group labels. label_insitu = FALSE uses numbers instead of group names.
palette, palcolor: Palette name (thisplot::show_palettes) or custom colors.
palette_metacell: Color palette for the metacell centroid layer.
palcolor_metacell: Custom colors for the metacell centroid layer.
pt.size, pt.alpha: Point size and transparency. pt.size = NULL scales with sqrt(n) (minimum 0.3). Rasterized points keep at least a two-pixel radius at raster.dpi = c(512, 512) and scale with raster.dpi.
cell.alpha: Alpha value for the original single-cell background layer.
cell.size: Point size for the original single-cell background layer.
stroke: Point border stroke width for metacell centroids.
show_metacell_size: Whether to map metacell_size to centroid size.
metacell_size_range: Point-size range used when show_metacell_size = TRUE.
cell_param: A named list of extra arguments passed to CellDimPlot() for the original single-cell background layer.
metacell_param: A named list of extra arguments passed to CellDimPlot() for the metacell centroid/query layer.
legend.position: Legend placement ("none", "left", "right", "bottom", "top"), direction, and title. legend.title = NULL uses the group name.
legend.direction: Legend direction: "horizontal" or "vertical".
theme_use, theme_args: Theme name or function, plus extra theme arguments.
return_layer: Logical. If TRUE, returns a named list of ggplot2 layers/scales (cells, fill_scale, centroids, scale_fill, scale_size, labels) instead of a complete plot.
...: Additional arguments passed to geom_point() for metacell centroids.

Value

A ggplot object, or a named list of ggplot2 layers when return_layer = TRUE.

Examples

data(pancreas_sub)
pancreas_sub <- RunStandardWorkflow(pancreas_sub, verbose = FALSE)
#> ℹ [2026-08-30 04:34:10] Skip `log1p()` because `layer = data` is not "counts"
mc <- RunMetaCell(
  pancreas_sub,
  method = "supercell",
  gamma = 20
)
#> ℹ [2026-08-30 04:35:03] Running SuperCell with gamma = 20, k.knn = 5 on 1000 cells
#> ℹ [2026-08-30 04:35:04] `RunMetaCell()` ("supercell") built 50 metacells from 1000 cells
#> ℹ [2026-08-30 04:35:04] Metacell size summary: min 5, median 16.5, mean 20, max 56 cells
#> Warning: Data is of class dgeMatrix. Coercing to dgCMatrix.
#> ✔ [2026-08-30 04:35:04] `RunMetaCell()` returned metacell Seurat with 50 metacells. Original cells in `@misc[["original_srt"]]`

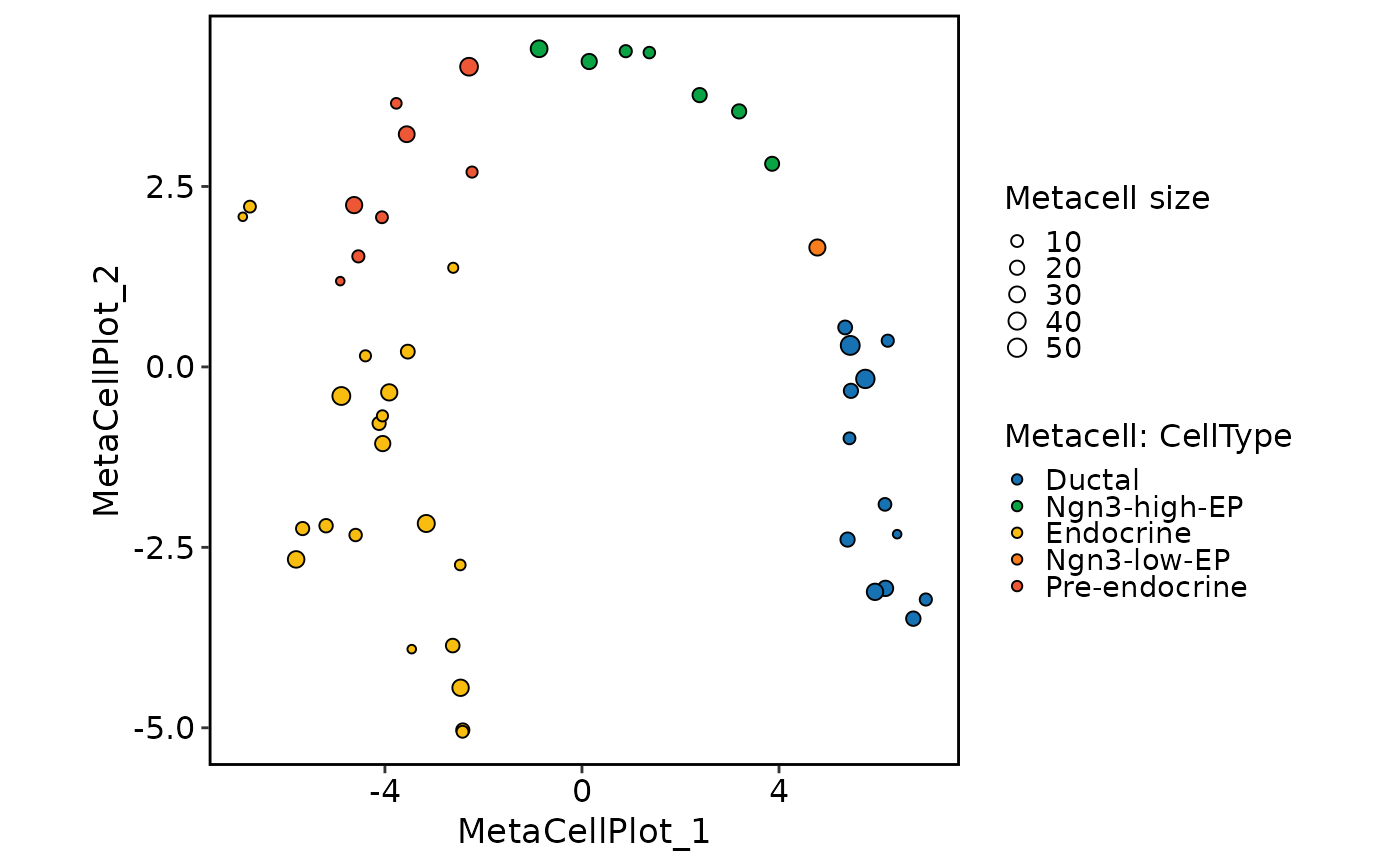

MetaCellPlot(
  mc,
  group.by = "CellType",
  palette_metacell = "ChineseSet8"
)

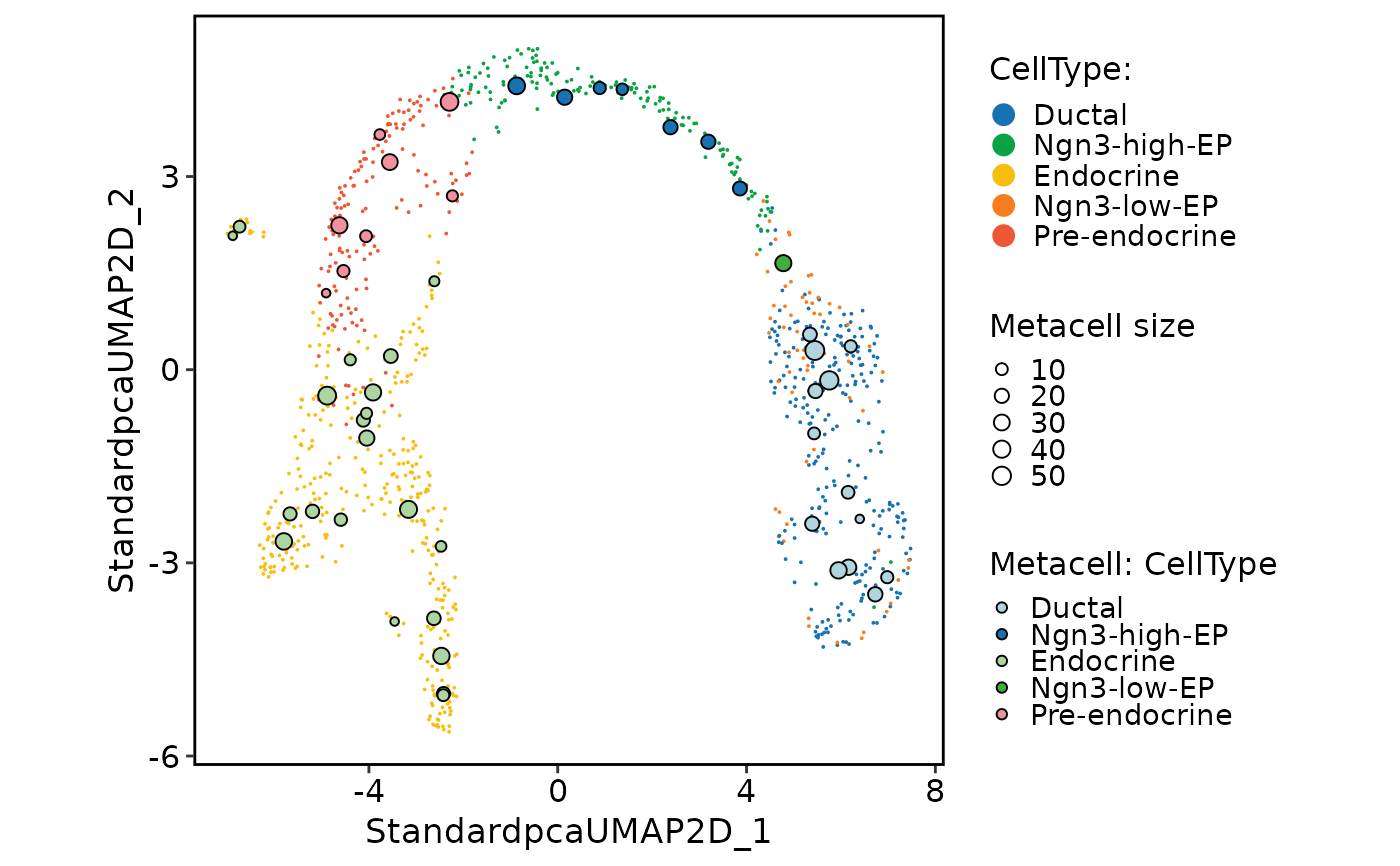

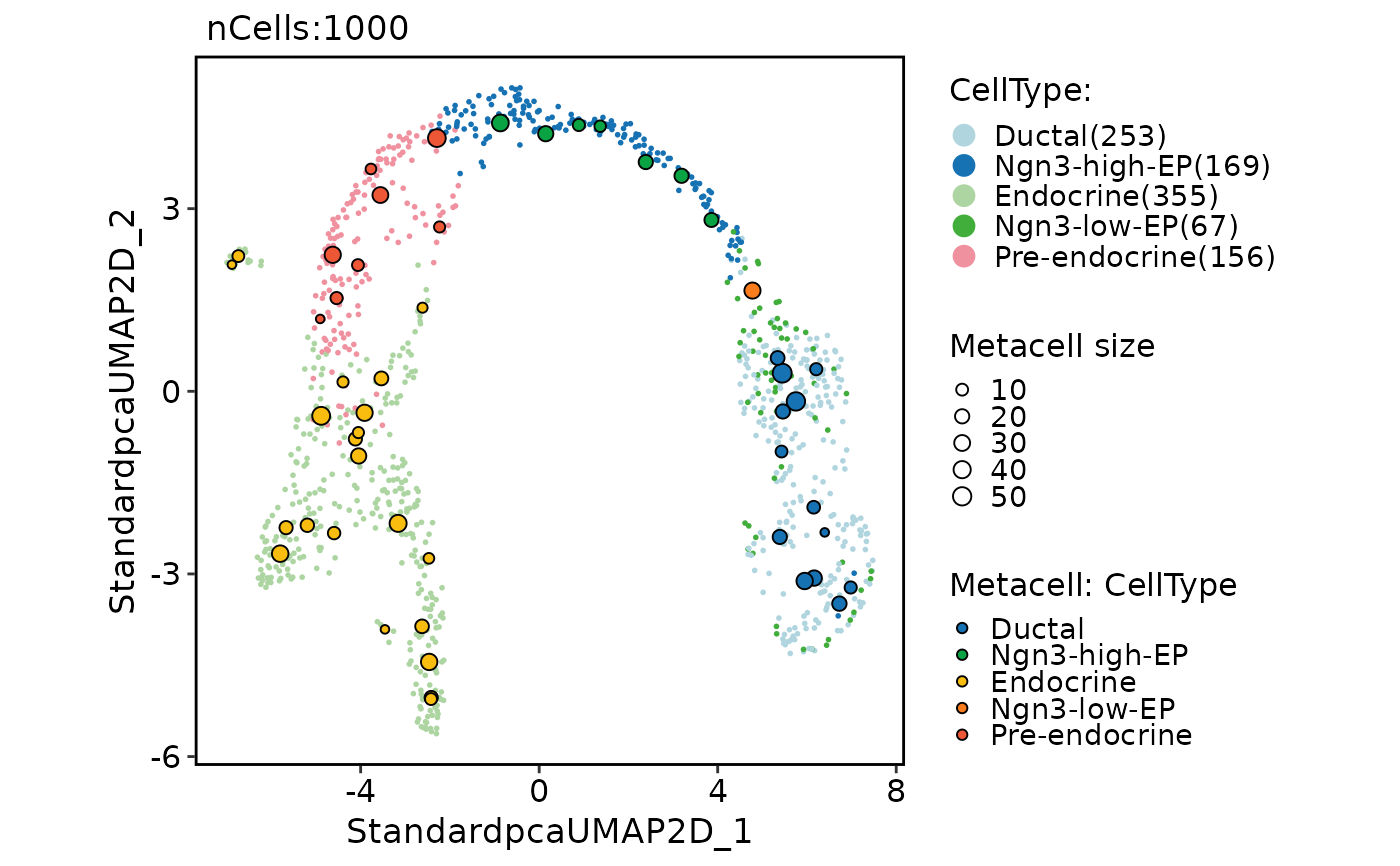

MetaCellPlot(
  mc,
  group.by = "CellType",
  reduction = "umap",
  palette = "ChineseSet8",
  show_cells = TRUE
)


CellDimPlot(
  pancreas_sub,
  group.by = "CellType"
) +
  MetaCellPlot(
    mc,
    group.by = "CellType",
    return_layer = TRUE,
    palette_metacell = "ChineseSet8"
  )
