Set the panel width/height of a plot to a fixed value

The ggplot object, when stored, can only specify the height and width of the entire plot, not the panel. The latter is obviously more important to control the final result of a plot. This function can set the panel width/height of plot to a fixed value and rasterize it.

Usage

panel_fix(
  x = NULL,
  panel_index = NULL,
  respect = NULL,
  width = NULL,
  height = NULL,
  margin = 1,
  padding = 0,
  units = "in",
  raster = FALSE,
  dpi = 300,
  return_grob = FALSE,
  bg_color = "white",
  save = NULL,
  verbose = FALSE,
  ...
)

panel_fix_overall(
  x,
  panel_index = NULL,
  respect = NULL,
  width = NULL,
  height = NULL,
  margin = 1,
  units = "in",
  raster = FALSE,
  dpi = 300,
  return_grob = FALSE,
  bg_color = "white",
  save = NULL,
  verbose = TRUE
)

Arguments

x: A ggplot object, a grob object, or a combined plot made by patchwork or cowplot package.
panel_index: Specify the panel to be fixed. If NULL, will fix all panels.
respect: Whether row heights and column widths should respect each other.
width: The desired width of the fixed panels.
height: The desired height of the fixed panels.
margin: The margin to add around each panel, in inches. Default is 1.
padding: The padding to add around each panel, in inches. Default is 0.
units: The units in which height, width and margin are given. Can be "mm", "cm", "in", etc. See grid::unit.
raster: Whether to rasterize the panel.
dpi: Plot resolution.
return_grob: Whether to return a grob object instead of a wrapped patchwork object. Default is FALSE.
bg_color: The background color of the plot.
save: NULL or the file name used to save the plot.
verbose: Whether to print the message. Default is TRUE.
...: Additional arguments passed to other functions.

Examples

library(ggplot2)
p <- ggplot(
  data = mtcars, aes(x = mpg, y = wt, colour = cyl)
) +
  geom_point() +
  facet_wrap(~gear, nrow = 2)
# fix the size of panel

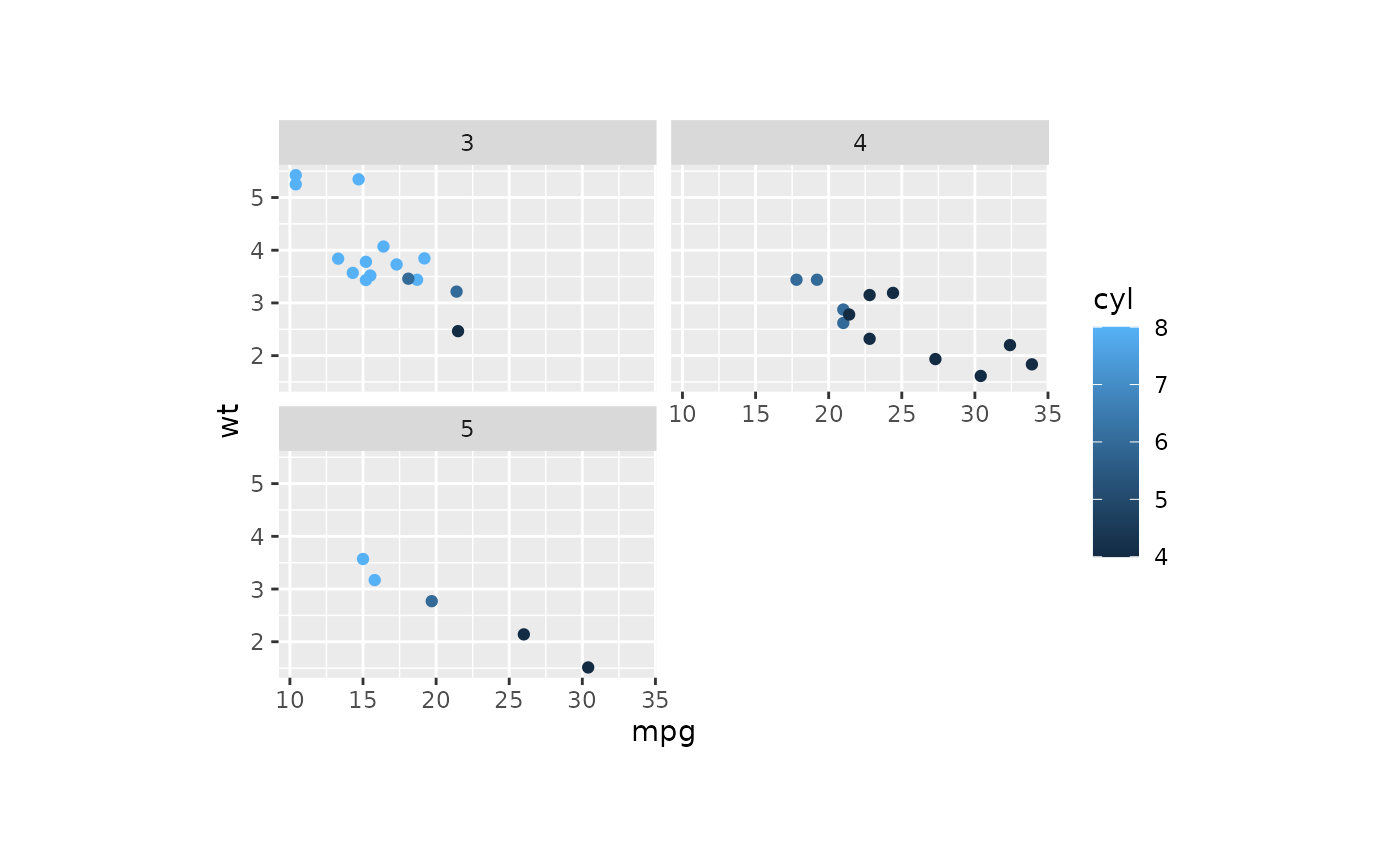

panel_fix(
  p,
  width = 5,
  height = 3,
  units = "cm"
)

# rasterize the panel

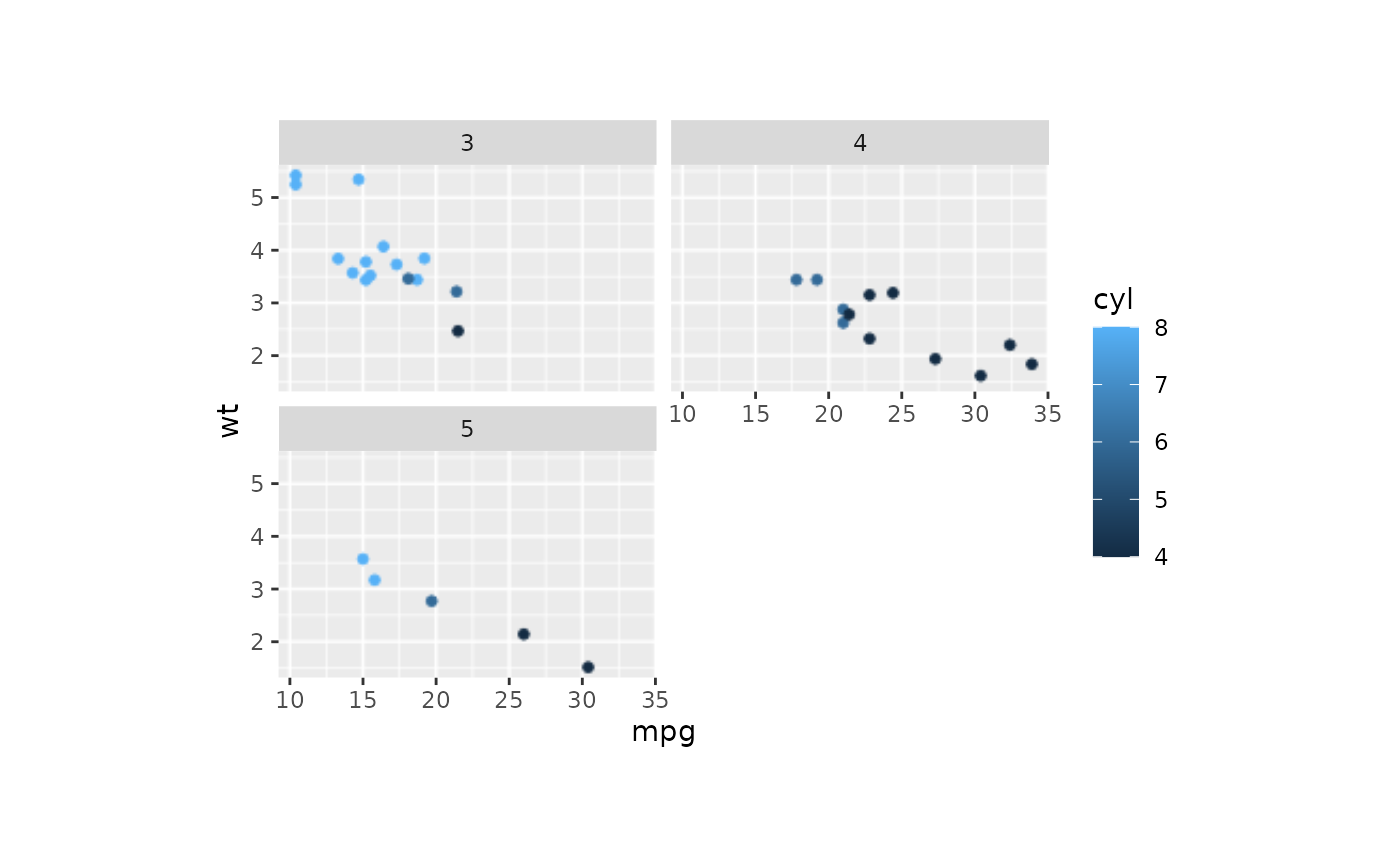

panel_fix(
  p,
  width = 5,
  height = 3,
  units = "cm",
  raster = TRUE,
  dpi = 90
)
#> ℹ [2025-09-20 14:06:47] png and ragg installed successfully
#> ℹ [2025-09-20 14:06:47] png and ragg installed successfully
#> ℹ [2025-09-20 14:06:47] png and ragg installed successfully


# `panel_fix` will build and render the plot when the input is a ggplot object.
# so after `panel_fix`, the size of the object will be changed.
object.size(p)
#> 368016 bytes
object.size(
  panel_fix(
    p,
    width = 5,
    height = 3,
    units = "cm"
  )
)
#> 1377056 bytes

## save the plot with appropriate size
# p_fix <- panel_fix(
#   p,
#   width = 5,
#   height = 3,
#   units = "cm"
# )
# plot_size <- attr(p_fix, "size")
# ggsave(
#   filename = "p_fix.png",
#   plot = p_fix,
#   units = plot_size$units,
#   width = plot_size$width,
#   height = plot_size$height
# )
## or save the plot directly
# p_fix <- panel_fix(
#   p,
#   width = 5,
#   height = 3,
#   units = "cm",
#   save = "p_fix.png"
# )

# fix the panel of the plot combined by `patchwork`
data(pancreas_sub)
pancreas_sub <- standard_scop(pancreas_sub)
#> ℹ [2025-09-20 14:06:48] Start standard scop workflow...
#> ℹ [2025-09-20 14:06:49] Checking a list of <Seurat> object...
#> ! [2025-09-20 14:06:49] Data 1/1 of the `srt_list` is "unknown"
#> ℹ [2025-09-20 14:06:49] Perform `NormalizeData()` with `normalization.method = 'LogNormalize'` on the data 1/1 of the `srt_list`...
#> ℹ [2025-09-20 14:06:51] Perform `Seurat::FindVariableFeatures()` on the data 1/1 of the `srt_list`...
#> ℹ [2025-09-20 14:06:51] Use the separate HVF from srt_list
#> ℹ [2025-09-20 14:06:51] Number of available HVF: 2000
#> ℹ [2025-09-20 14:06:52] Finished check
#> ℹ [2025-09-20 14:06:52] Perform `Seurat::ScaleData()`
#> Warning: Different features in new layer data than already exists for scale.data
#> ℹ [2025-09-20 14:06:52] Perform pca linear dimension reduction
#> StandardPC_ 1
#> Positive:  Aplp1, Cpe, Gnas, Fam183b, Map1b, Hmgn3, Pcsk1n, Chga, Tuba1a, Bex2
#> 	   Syt13, Isl1, 1700086L19Rik, Pax6, Chgb, Scgn, Rbp4, Scg3, Gch1, Camk2n1
#> 	   Cryba2, Pcsk2, Pyy, Tspan7, Mafb, Hist3h2ba, Dbpht2, Abcc8, Rap1b, Slc38a5
#> Negative:  Spp1, Anxa2, Sparc, Dbi, 1700011H14Rik, Wfdc2, Gsta3, Adamts1, Clu, Mgst1
#> 	   Bicc1, Ldha, Vim, Cldn3, Cyr61, Rps2, Mt1, Ptn, Phgdh, Nudt19
#> 	   Smtnl2, Smco4, Habp2, Mt2, Col18a1, Rpl12, Galk1, Cldn10, Acot1, Ccnd1
#> StandardPC_ 2
#> Positive:  Rbp4, Tagln2, Tuba1b, Fkbp2, Pyy, Pcsk2, Iapp, Tmem27, Meis2, Tubb4b
#> 	   Pcsk1n, Dbpht2, Rap1b, Dynll1, Tubb2a, Sdf2l1, Scgn, 1700086L19Rik, Scg2, Abcc8
#> 	   Atp1b1, Hspa5, Fam183b, Papss2, Slc38a5, Scg3, Mageh1, Tspan7, Ppp1r1a, Ociad2
#> Negative:  Neurog3, Btbd17, Gadd45a, Ppp1r14a, Neurod2, Sox4, Smarcd2, Mdk, Pax4, Btg2
#> 	   Sult2b1, Hes6, Grasp, Igfbpl1, Gpx2, Cbfa2t3, Foxa3, Shf, Mfng, Tmsb4x
#> 	   Amotl2, Gdpd1, Cdc14b, Epb42, Rcor2, Cotl1, Upk3bl, Rbfox3, Cldn6, Cer1
#> StandardPC_ 3
#> Positive:  Nusap1, Top2a, Birc5, Aurkb, Cdca8, Pbk, Mki67, Tpx2, Plk1, Ccnb1
#> 	   2810417H13Rik, Incenp, Cenpf, Ccna2, Prc1, Racgap1, Cdk1, Aurka, Cdca3, Hmmr
#> 	   Spc24, Kif23, Sgol1, Cenpe, Cdc20, Hist1h1b, Cdca2, Mxd3, Kif22, Ska1
#> Negative:  Anxa5, Pdzk1ip1, Acot1, Tpm1, Anxa2, Dcdc2a, Capg, Sparc, Ttr, Pamr1
#> 	   Clu, Cxcl12, Ndrg2, Hnf1aos1, Gas6, Gsta3, Krt18, Ces1d, Atp1b1, Muc1
#> 	   Hhex, Acadm, Spp1, Enpp2, Bcl2l14, Sat1, Smtnl2, 1700011H14Rik, Tgm2, Fam159a
#> StandardPC_ 4
#> Positive:  Glud1, Tm4sf4, Akr1c19, Cldn4, Runx1t1, Fev, Pou3f4, Gm43861, Pgrmc1, Arx
#> 	   Cd200, Lrpprc, Hmgn3, Ppp1r14c, Pam, Etv1, Tsc22d1, Slc25a5, Akap17b, Pgf
#> 	   Fam43a, Emb, Jun, Krt8, Dnajc12, Mid1ip1, Ids, Rgs17, Uchl1, Alcam
#> Negative:  Ins2, Ins1, Ppp1r1a, Nnat, Calr, Sytl4, Sdf2l1, Iapp, Pdia6, Mapt
#> 	   G6pc2, C2cd4b, Npy, Gng12, P2ry1, Ero1lb, Adra2a, Papss2, Arhgap36, Fam151a
#> 	   Dlk1, Creld2, Gip, Tmem215, Gm27033, Cntfr, Prss53, C2cd4a, Lyve1, Ociad2
#> StandardPC_ 5
#> Positive:  Pdx1, Nkx6-1, Npepl1, Cldn4, Cryba2, Fev, Jun, Chgb, Gng12, Adra2a
#> 	   Mnx1, Sytl4, Pdk3, Gm27033, Nnat, Chga, Ins2, 1110012L19Rik, Enho, Krt7
#> 	   Mlxipl, Tmsb10, Flrt1, Pax4, Tubb3, Prrg2, Gars, Frzb, BC023829, Gm2694
#> Negative:  Irx2, Irx1, Gcg, Ctxn2, Tmem27, Ctsz, Tmsb15l, Nap1l5, Pou6f2, Gria2
#> 	   Ghrl, Peg10, Smarca1, Arx, Lrpap1, Rgs4, Ttr, Gast, Tmsb15b2, Serpina1b
#> 	   Slc16a10, Wnk3, Ly6e, Auts2, Sct, Arg1, Dusp10, Sphkap, Dock11, Edn3
#> ℹ [2025-09-20 14:06:53] Perform `Seurat::FindClusters()` with louvain and `cluster_resolution` = 0.6
#> ℹ [2025-09-20 14:06:53] Reorder clusters...
#> ! [2025-09-20 14:06:53] Using `Seurat::AggregateExpression()` to calculate pseudo-bulk data for <Assay5>
#> ℹ [2025-09-20 14:06:53] Perform umap nonlinear dimension reduction
#> ℹ [2025-09-20 14:06:53] Non-linear dimensionality reduction (umap) using (Standardpca) dims (1-50) as input
#> ℹ [2025-09-20 14:06:53] UMAP will return its model
#> ℹ [2025-09-20 14:06:58] Non-linear dimensionality reduction (umap) using (Standardpca) dims (1-50) as input
#> ℹ [2025-09-20 14:06:58] UMAP will return its model
#> ✔ [2025-09-20 14:07:03] Run scop standard workflow done
p1 <- CellDimPlot(
  pancreas_sub,
  "Phase",
  aspect.ratio = 1
)
p2 <- FeatureDimPlot(
  pancreas_sub,
  "Ins1",
  aspect.ratio = 0.5
)
p <- p1 / p2
# fix the panel size for each plot,
# the width will be calculated automatically based on `aspect.ratio`

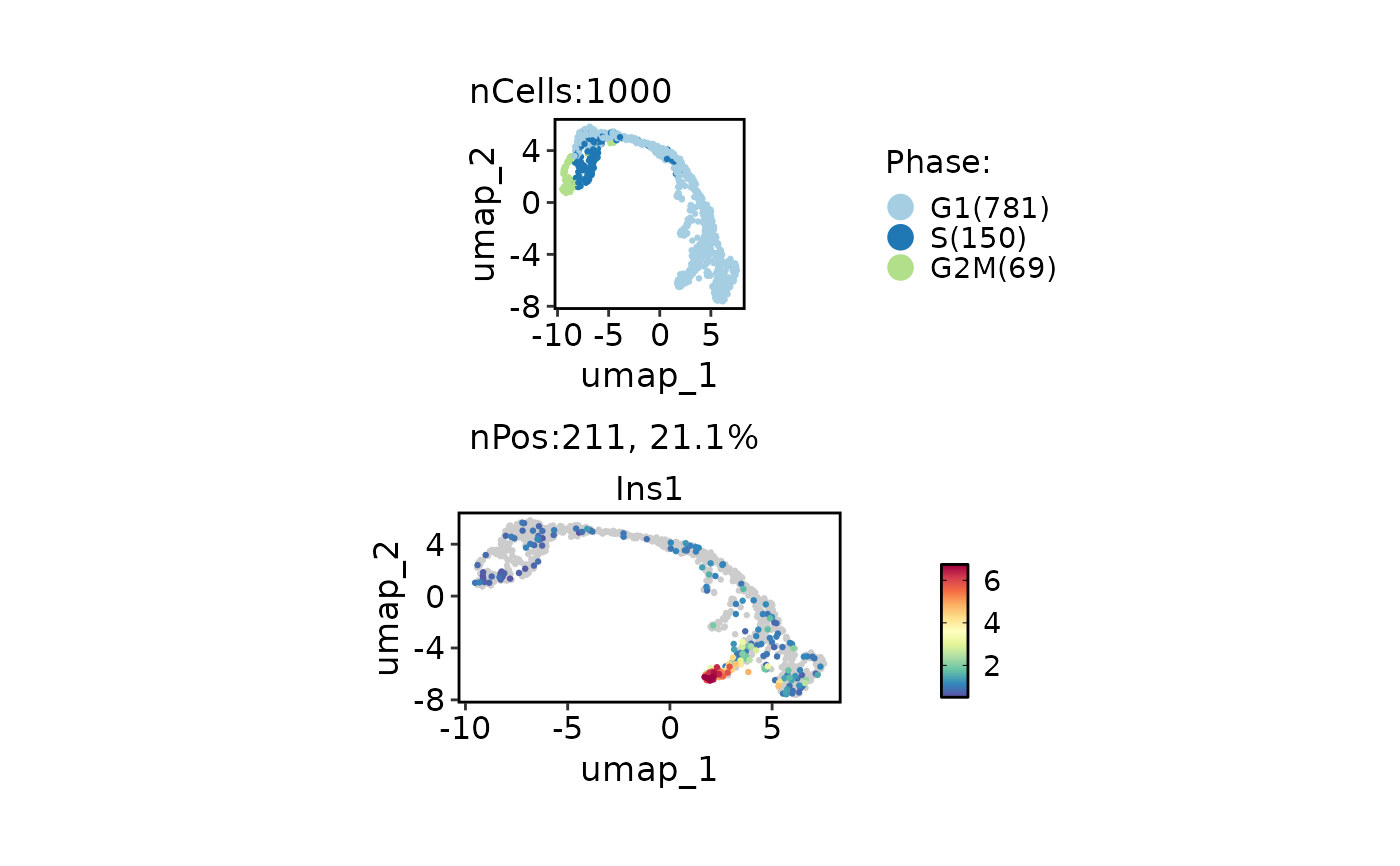

panel_fix(p, height = 1)
#> Warning: No shared levels found between `names(values)` of the manual scale and the
#> data's fill values.


# fix the panel of the plot combined by plot_grid
if (requireNamespace("cowplot", quietly = TRUE)) {
  p1 <- CellDimPlot(
    pancreas_sub,
    c("Phase", "SubCellType"),
    label = TRUE
  )
  p2 <- FeatureDimPlot(
    pancreas_sub,
    c("Ins1", "Gcg"),
    label = TRUE
  )
  p <- cowplot::plot_grid(
    p1,
    p2,
    nrow = 2
  )
  # plot is combined by plot_grid
  # fix the size of panel for each plot

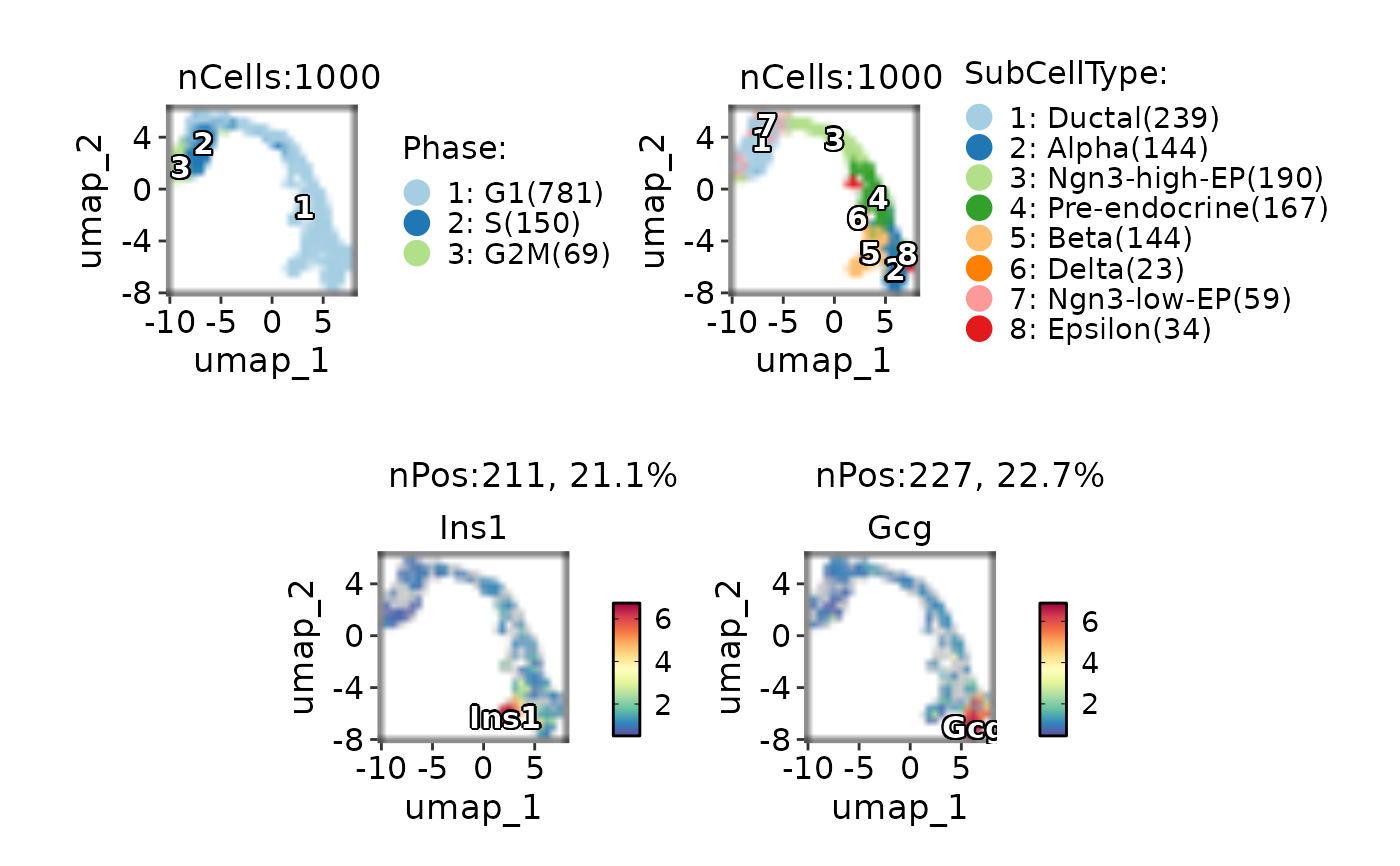

  panel_fix(p, height = 1)
  # rasterize the panel while keeping all labels and text in vector format
  panel_fix(p, height = 1, raster = TRUE, dpi = 30)
}
#> Warning: No shared levels found between `names(values)` of the manual scale and the
#> data's fill values.
#> Warning: No shared levels found between `names(values)` of the manual scale and the
#> data's fill values.
#> ℹ [2025-09-20 14:07:04] png and ragg installed successfully
#> ℹ [2025-09-20 14:07:04] png and ragg installed successfully
#> ℹ [2025-09-20 14:07:04] png and ragg installed successfully
#> ℹ [2025-09-20 14:07:05] png and ragg installed successfully


# fix the panel of the heatmap
ht <- GroupHeatmap(pancreas_sub,
  features = c(
    "Sox9", "Anxa2", "Bicc1", # Ductal
    "Neurog3", "Hes6", # EPs
    "Fev", "Neurod1", # Pre-endocrine
    "Rbp4", "Pyy", # Endocrine
    "Ins1", "Gcg", "Sst", "Ghrl"
    # Beta, Alpha, Delta, Epsilon
  ),
  group.by = c("CellType", "SubCellType"),
  show_row_names = TRUE
)
#> 'magick' package is suggested to install to give better rasterization.
#>
#> Set `ht_opt$message = FALSE` to turn off this message.
# the size of the heatmap is not fixed and can be resized by zooming the viewport
ht$plot

# fix the size of the heatmap according the current viewport

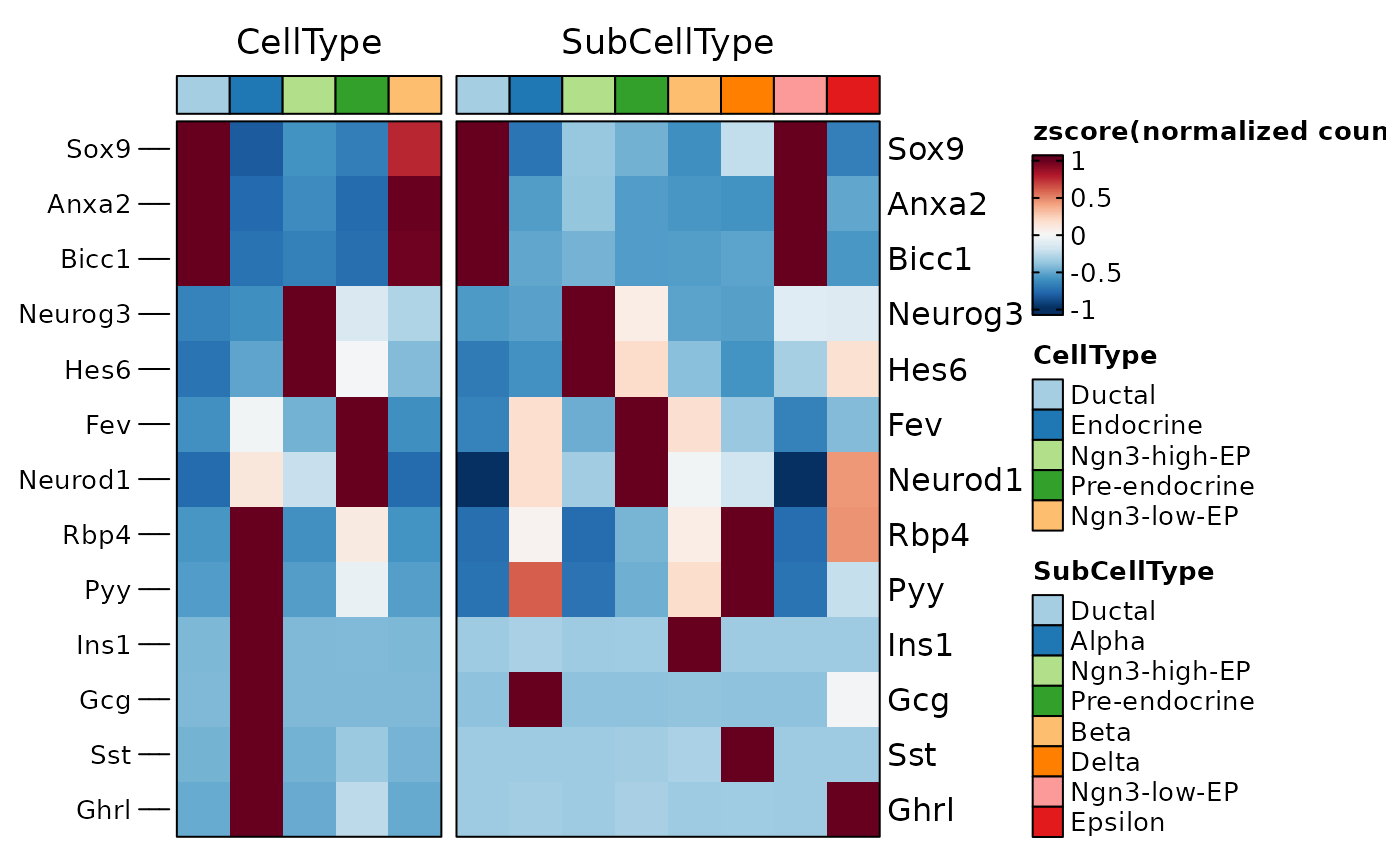

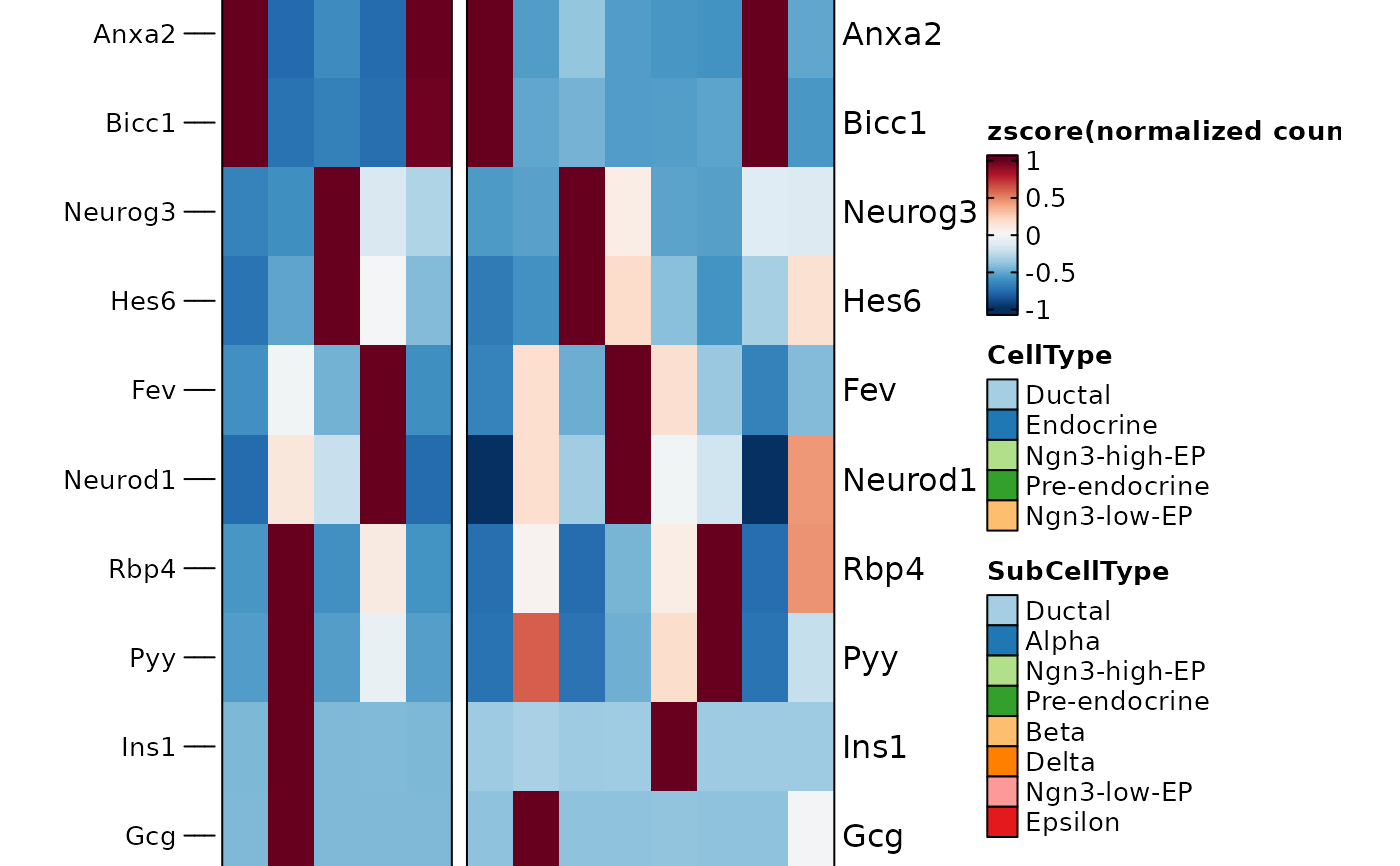

panel_fix(ht$plot)

# rasterize the heatmap body

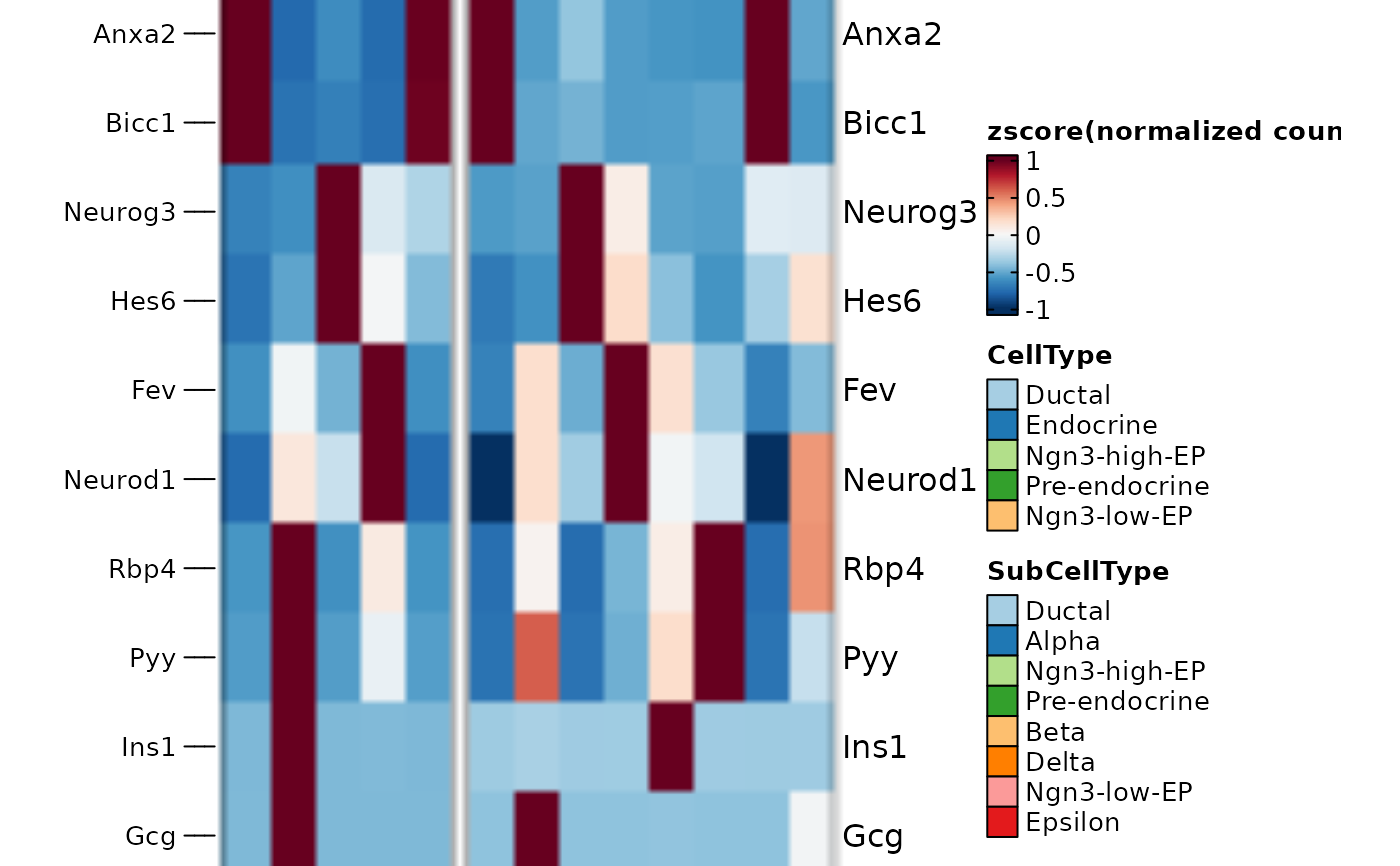

panel_fix(ht$plot, raster = TRUE, dpi = 30)
#> ℹ [2025-09-20 14:07:06] png and ragg installed successfully

# fix the size of overall heatmap including annotation and legend

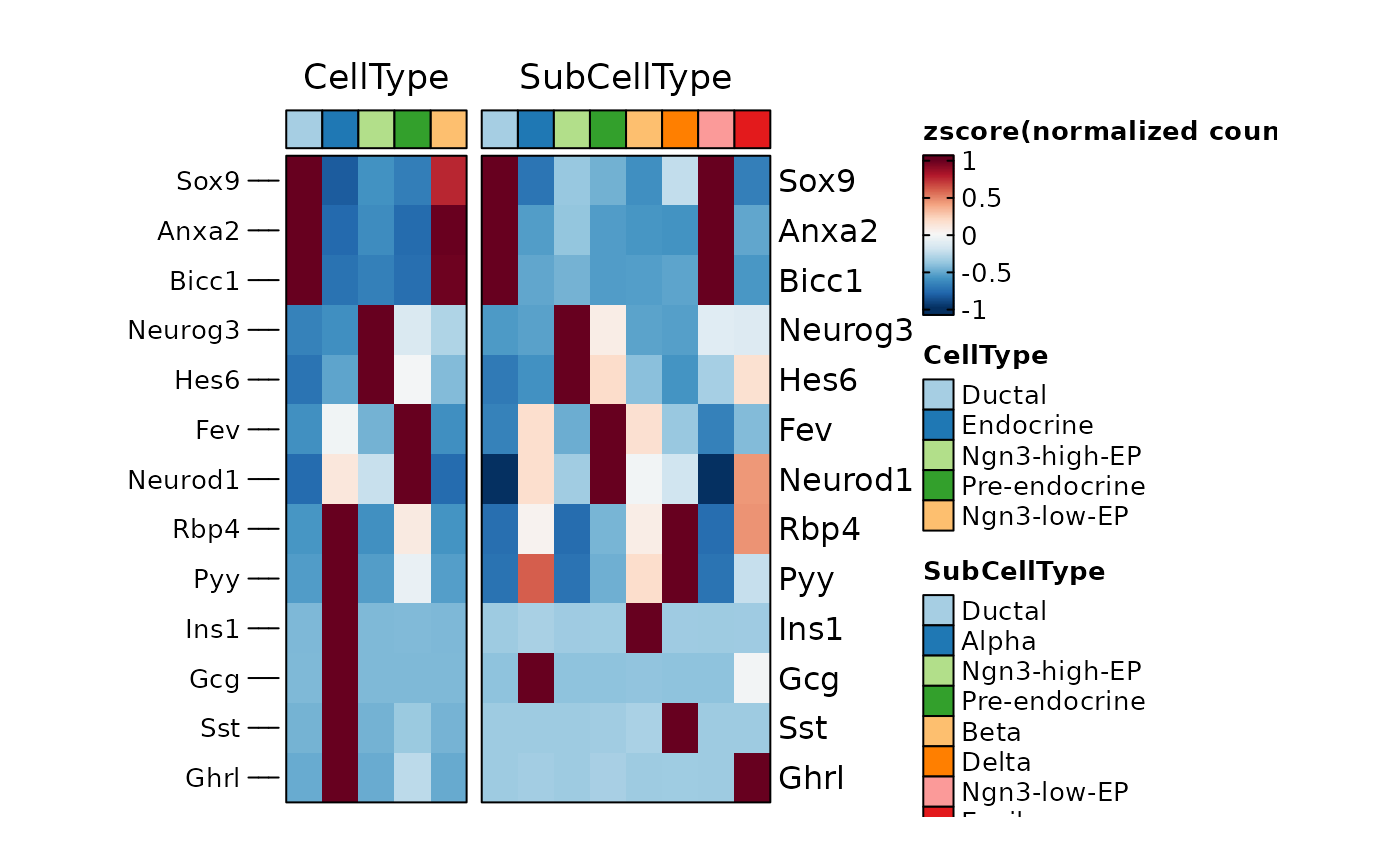

panel_fix(ht$plot, height = 4, width = 6)
