Cluster tree plot — ClusterTreePlot • scop

Visualize how cells move between clusters across multiple Seurat clustering resolutions. In the default direction, nodes are bottom-aligned so the tree expands from lower left to upper right; the direction can be reversed or transposed. Automatically detected resolutions are ordered numerically; explicit cluster_cols keep the supplied order.

Usage

ClusterTreePlot(
  object,
  cluster_cols = NULL,
  prefix = NULL,
  resolutions = NULL,
  features = NULL,
  assay = NULL,
  layer = "data",
  edge_threshold = 0,
  node_palette = "Spectral",
  node_palcolor = NULL,
  edge_palette = "YlOrRd",
  edge_palcolor = NULL,
  node_size = c(4, 8.5),
  edge_size = c(0.35, 2),
  label = TRUE,
  label.size = 2.8,
  label.fg = "auto",
  title = NULL,
  subtitle = NULL,
  xlab = "Resolution",
  ylab = "Cluster",
  legend.position = "auto",
  theme_use = "theme_scop",
  theme_args = list(),
  combine = TRUE,
  ncol = NULL,
  return_data = FALSE,
  verbose = TRUE,
  family = "Arial",
  direction = c("left-to-right", "right-to-left", "top-to-bottom", "bottom-to-top"),
  srt = NULL
)

Arguments

object: A Seurat object.
cluster_cols: Metadata columns containing clustering results at different resolutions. If NULL, columns generated by Seurat::FindClusters(resolution = c(...)) are detected automatically.
prefix: Optional prefix used to filter automatically detected clustering columns, for example "RNA_snn".
resolutions: Optional numeric vector used to filter automatically detected resolutions.
features: Features to plot: a character vector or a named list of assay gene names or numeric metadata columns.
assay: Assay to use. NULL uses the default assay.
layer: Assay layer to use.
edge_threshold: Minimum incoming proportion required to draw an edge. Edges below this threshold are still available when return_data = TRUE.
node_palette, node_palcolor: Palette used for node colors.
edge_palette, edge_palcolor: Palette used for edge colors.
node_size: Numeric range used for node sizes.
edge_size: Numeric range used for edge widths.
label: Whether to draw cluster IDs inside nodes.
label.size, label.fg: Size and color of cluster-ID labels. label.fg = "auto" chooses black or white for each node from its fill.
title: Plot title. NULL (the default) hides the redundant overall cluster-tree title; feature names are still shown as panel subtitles.
subtitle: Optional plot subtitle. When features are supplied and subtitle = NULL, the feature or feature-set name is used.
xlab, ylab: Axis titles.
legend.position: The position of the legend. The default is "auto": horizontal trees place a compact guide row above the panel, aligned to the starting side, while vertical trees place guides on the right. Use "inside" to force an in-panel legend.
theme_use, theme_args: Plot theme and additional theme arguments.
combine: Combine plots with patchwork. combine = FALSE returns a list of ggplots.
ncol: Number of columns of the combined plot.
return_data: Whether to return plot data along with the plot.
verbose: Whether to print messages.
family: Font family used for node labels, axes, titles, and legends.
direction: Tree direction: "left-to-right", "right-to-left", "top-to-bottom", or "bottom-to-top".
srt: Deprecated alias for object; supply exactly one of the two. It will be removed in scop 1.0.0.

Value

A ggplot, patchwork, list of ggplot objects, or a list with plot data when return_data = TRUE.

Examples

data(pancreas_sub)
pancreas_sub <- RunStandardWorkflow(pancreas_sub, verbose = FALSE)
#> ℹ [2026-10-11 22:31:56] Skip `log1p()` because `layer = data` is not "counts"
pancreas_sub <- Seurat::FindNeighbors(
  pancreas_sub,
  reduction = "Standardpca",
  dims = 1:20,
  verbose = FALSE
)
pancreas_sub <- Seurat::FindClusters(
  pancreas_sub,
  resolution = seq(0.2, 1, by = 0.2),
  verbose = FALSE
)

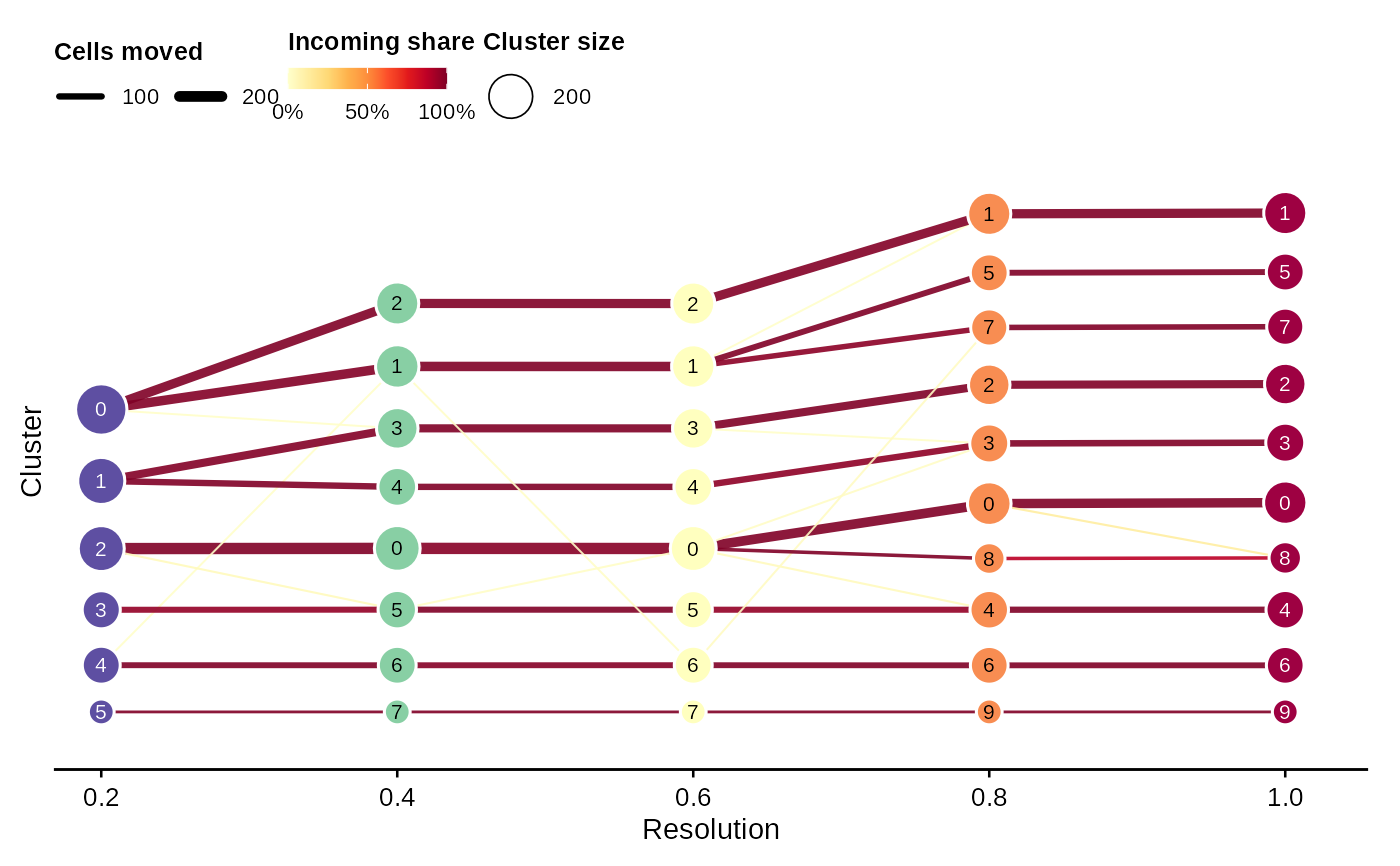

ClusterTreePlot(pancreas_sub)
#> ℹ [2026-10-11 22:32:02] Multiple clustering prefixes detected. Use "RNA_snn" for `ClusterTreePlot()`. Pass `prefix` to choose another prefix.

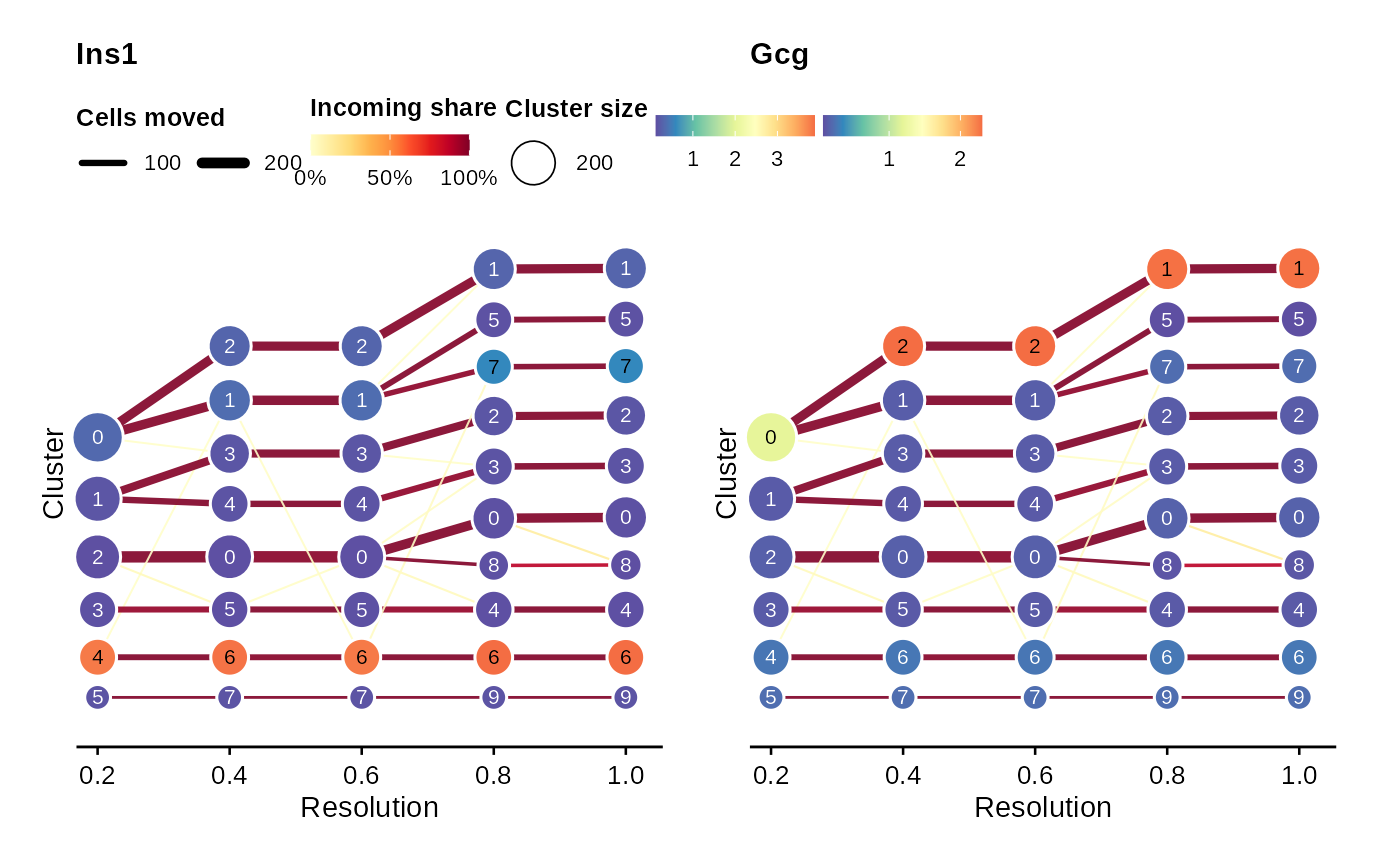

ClusterTreePlot(
  pancreas_sub,
  features = c("Ins1", "Gcg")
)
#> ℹ [2026-10-11 22:32:02] Multiple clustering prefixes detected. Use "RNA_snn" for `ClusterTreePlot()`. Pass `prefix` to choose another prefix.
