Plot benchmark metrics

Visualize benchmark results stored in a Seurat object or a summary data.frame. Per-cell metrics such as LISI are shown as feature plots and/or boxplots. Summary metrics such as integration or mapping benchmark scores are shown as barplots or a funkyheatmap.

Usage

BenchmarkPlot(
  srt = NULL,
  data = NULL,
  features = NULL,
  metrics = NULL,
  tool_name = NULL,
  reduction = NULL,
  plot_type = c("auto", "feature", "boxplot", "bar", "funkyheatmap"),
  plot_boxplot = TRUE,
  boxplot_jitter = FALSE,
  combine = TRUE,
  nrow = NULL,
  ncol = NULL,
  byrow = TRUE,
  pt.size = NULL,
  pt.alpha = 1,
  palette = "Chinese",
  palcolor = NULL,
  theme_use = "theme_scop",
  theme_args = list(),
  verbose = TRUE,
  ...
)

Arguments

srt

A Seurat object.

data

Optional summary benchmark data.frame containing at least metric and value, and optionally method and workflow.

features

Metadata columns containing per-cell benchmark scores. Default is NULL.

metrics

One or more summary metric names to visualize. Default is NULL, which uses all available summary metrics.

tool_name

Tool entries created by benchmark-related workflows. This can be a character vector. For per-cell metrics, benchmark columns are resolved from tool entries that contain colnames; for summary metrics, entries containing summary or metrics$summary are used.

reduction

Dimensional reduction used for per-cell feature plots. Default is NULL, which uses the reduction stored in tool_name when available, otherwise DefaultReduction().

plot_type

Plot type. One of "auto", "feature", "boxplot", "bar", or "funkyheatmap".

plot_boxplot

Whether to add the summary boxplot when per-cell metrics are shown. Default is TRUE.

boxplot_jitter

Whether to overlay jittered points on the boxplot. Default is FALSE.

combine

Combine plots into a single patchwork object. If FALSE, return a list of ggplot objects.

nrow

Number of rows in the combined plot. Default is NULL, which means determined automatically based on the number of plots.

ncol

Number of columns in the combined plot. Default is NULL, which means determined automatically based on the number of plots.

byrow

Whether to arrange the plots by row in the combined plot. Default is TRUE.

pt.size

The size of the points in the plot.

pt.alpha

The transparency of the data points. Default is 1.

palette

Color palette name. Available palettes can be found in thisplot::show_palettes. Default is "Chinese".

palcolor

Custom colors used to create a color palette. Default is NULL.

theme_use

Theme used. Can be a character string or a theme function. Default is "theme_scop".

theme_args

Other arguments passed to the theme_use. Default is list().

verbose

Whether to print the message. Default is TRUE.

...

The message to print.

Value

A ggplot, patchwork plot, or funkyheatmap object depending on the selected mode. If combine = FALSE in per-cell mode, a named list of plots is returned.

Examples

if (requireNamespace("labeling", quietly = TRUE)) {
  metrics_df <- data.frame(
    method = c("Raw", "Raw", "Harmony", "Harmony"),
    metric = c("batch_ASW_mixing", "celltype_ASW", "batch_ASW_mixing", "celltype_ASW"),
    value = c(0.42, 0.71, 0.68, 0.66)
  )
  BenchmarkPlot(
    data = metrics_df,
    plot_type = "bar"
  )

  pbmc_small <- UpdateSeuratObject(pbmc_small)
  pbmc_small[["Raw_batch_LISI"]] <- seq_len(ncol(pbmc_small)) / ncol(pbmc_small)
  pbmc_small[["Harmony_batch_LISI"]] <- rev(pbmc_small[["Raw_batch_LISI", drop = TRUE]])

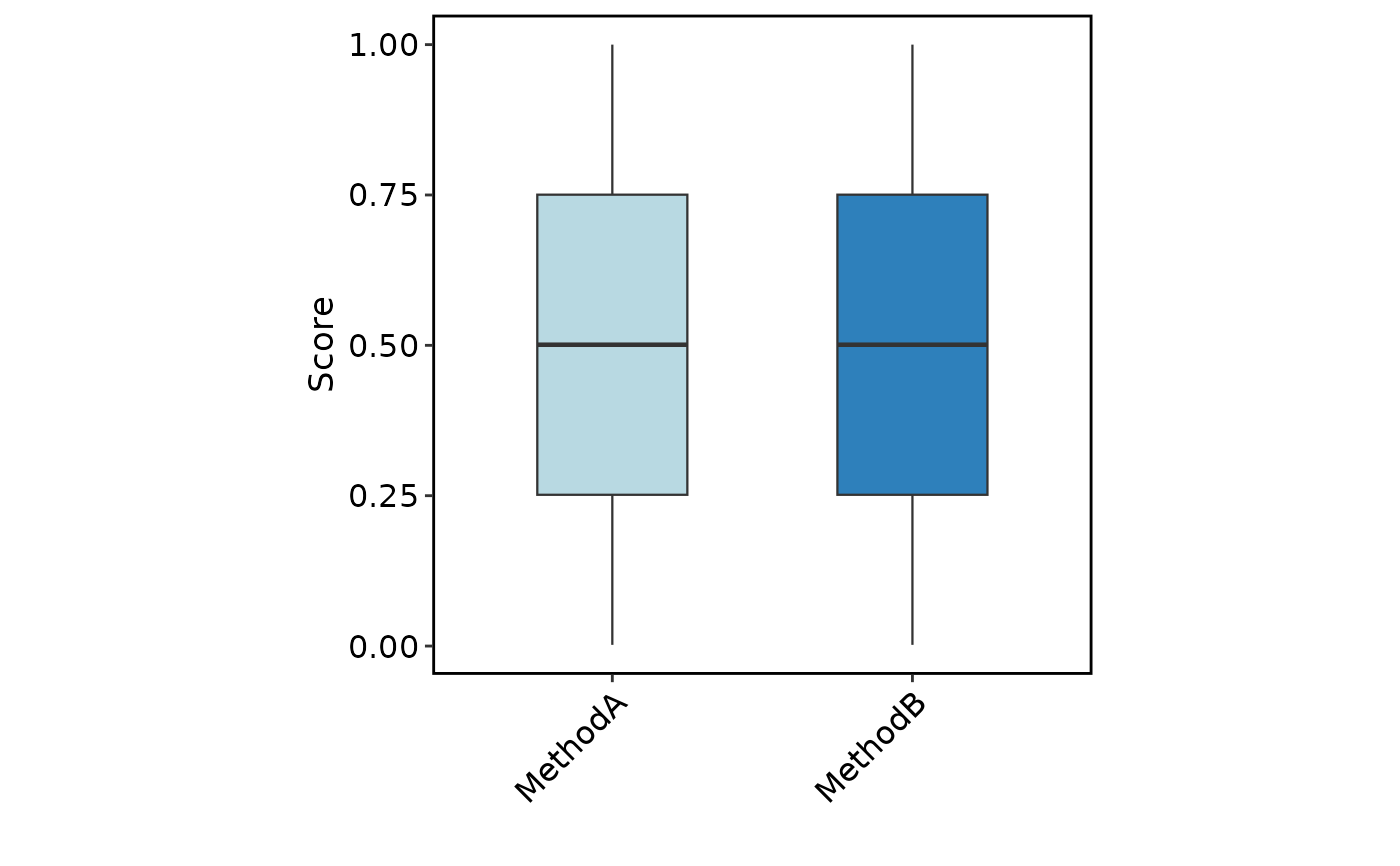

  BenchmarkPlot(
    pbmc_small,
    features = c("Raw_batch_LISI", "Harmony_batch_LISI"),
    plot_type = "boxplot"
  )
}
#> Error in UpdateSeuratObject(pbmc_small): could not find function "UpdateSeuratObject"
