Color palettes collected in scop.
Usage
palette_scop(
x,
n = 100,
palette = "Paired",
palcolor = NULL,
type = "auto",
matched = FALSE,
reverse = FALSE,
NA_keep = FALSE,
NA_color = "grey80"
)Arguments
- x
A vector of character/factor or numeric values. If missing, numeric values 1:n will be used as x.
- n
The number of colors to return for numeric values.
- palette
Palette name. All available palette names can be queried with
show_palettes().- palcolor
Custom colors used to create a color palette.
- type
Type of
x. Can be one of "auto", "discrete" or "continuous". The default is "auto", which automatically detects ifxis a numeric value.- matched
If
TRUE, will return a color vector of the same length asx.- reverse
Whether to invert the colors.
- NA_keep
Whether to keep the color assignment to NA in
x.- NA_color
Color assigned to NA if NA_keep is
TRUE.
Examples
x <- c(1:3, NA, 3:5)
(pal1 <- palette_scop(
x,
palette = "Spectral"
))
#> [1,1.04] (1.04,1.08] (1.08,1.12] (1.12,1.16] (1.16,1.2] (1.2,1.24]
#> "#5E4FA2" "#5954A4" "#555AA7" "#5060AA" "#4C66AC" "#476BAF"
#> (1.24,1.28] (1.28,1.32] (1.32,1.36] (1.36,1.4] (1.4,1.44] (1.44,1.48]
#> "#4371B2" "#3E77B5" "#3A7DB7" "#3682BA" "#3288BC" "#378EBA"
#> (1.48,1.52] (1.52,1.56] (1.56,1.6] (1.6,1.64] (1.64,1.68] (1.68,1.72]
#> "#3D94B7" "#429AB5" "#47A0B3" "#4CA5B0" "#52ABAE" "#57B1AB"
#> (1.72,1.76] (1.76,1.8] (1.8,1.84] (1.84,1.88] (1.88,1.92] (1.92,1.96]
#> "#5CB7A9" "#61BDA6" "#67C2A4" "#6EC5A4" "#75C8A4" "#7CCAA4"
#> (1.96,2] (2,2.04] (2.04,2.08] (2.08,2.12] (2.12,2.16] (2.16,2.2]
#> "#83CDA4" "#8AD0A4" "#91D2A4" "#98D5A4" "#9FD8A4" "#A6DBA4"
#> (2.2,2.24] (2.24,2.28] (2.28,2.32] (2.32,2.36] (2.36,2.4] (2.4,2.44]
#> "#ACDDA3" "#B2E0A2" "#B8E2A1" "#BEE5A0" "#C4E79E" "#CAE99D"
#> (2.44,2.48] (2.48,2.52] (2.52,2.56] (2.56,2.6] (2.6,2.64] (2.64,2.68]
#> "#D0EC9C" "#D6EE9B" "#DCF199" "#E2F398" "#E7F599" "#E9F69D"
#> (2.68,2.72] (2.72,2.76] (2.76,2.8] (2.8,2.84] (2.84,2.88] (2.88,2.92]
#> "#ECF7A1" "#EEF8A5" "#F1F9A9" "#F3FAAD" "#F6FBB1" "#F8FCB5"
#> (2.92,2.96] (2.96,3] (3,3.04] (3.04,3.08] (3.08,3.12] (3.12,3.16]
#> "#FBFDB9" "#FDFEBD" "#FEFDBC" "#FEFAB7" "#FEF7B1" "#FEF4AC"
#> (3.16,3.2] (3.2,3.24] (3.24,3.28] (3.28,3.32] (3.32,3.36] (3.36,3.4]
#> "#FEF0A7" "#FEEDA2" "#FEEA9C" "#FEE797" "#FEE492" "#FEE18D"
#> (3.4,3.44] (3.44,3.48] (3.48,3.52] (3.52,3.56] (3.56,3.6] (3.6,3.64]
#> "#FDDC88" "#FDD784" "#FDD27F" "#FDCD7B" "#FDC877" "#FDC373"
#> (3.64,3.68] (3.68,3.72] (3.72,3.76] (3.76,3.8] (3.8,3.84] (3.84,3.88]
#> "#FDBE6F" "#FDB96A" "#FDB466" "#FDAF62" "#FCA95E" "#FBA25B"
#> (3.88,3.92] (3.92,3.96] (3.96,4] (4,4.04] (4.04,4.08] (4.08,4.12]
#> "#FA9C58" "#F99555" "#F88F52" "#F7884F" "#F6824C" "#F67B49"
#> (4.12,4.16] (4.16,4.2] (4.2,4.24] (4.24,4.28] (4.28,4.32] (4.32,4.36]
#> "#F57446" "#F46E43" "#F16943" "#EE6445" "#EB5F46" "#E85A47"
#> (4.36,4.4] (4.4,4.44] (4.44,4.48] (4.48,4.52] (4.52,4.56] (4.56,4.6]
#> "#E45648" "#E1514A" "#DE4C4B" "#DB474C" "#D8434D" "#D53E4E"
#> (4.6,4.64] (4.64,4.68] (4.68,4.72] (4.72,4.76] (4.76,4.8] (4.8,4.84]
#> "#CF384D" "#CA324C" "#C42C4B" "#BF2549" "#B91F48" "#B41947"
#> (4.84,4.88] (4.88,4.92] (4.92,4.96] (4.96,5]
#> "#AE1345" "#A90D44" "#A30743" "#9E0142"
(pal2 <- palette_scop(
x,
palcolor = c("red", "white", "blue")
))
#> [1,1.04] (1.04,1.08] (1.08,1.12] (1.12,1.16] (1.16,1.2] (1.2,1.24]
#> "#FF0000" "#FF0505" "#FF0A0A" "#FF0F0F" "#FF1414" "#FF1919"
#> (1.24,1.28] (1.28,1.32] (1.32,1.36] (1.36,1.4] (1.4,1.44] (1.44,1.48]
#> "#FF1E1E" "#FF2424" "#FF2929" "#FF2E2E" "#FF3333" "#FF3838"
#> (1.48,1.52] (1.52,1.56] (1.56,1.6] (1.6,1.64] (1.64,1.68] (1.68,1.72]
#> "#FF3D3D" "#FF4242" "#FF4848" "#FF4D4D" "#FF5252" "#FF5757"
#> (1.72,1.76] (1.76,1.8] (1.8,1.84] (1.84,1.88] (1.88,1.92] (1.92,1.96]
#> "#FF5C5C" "#FF6161" "#FF6767" "#FF6C6C" "#FF7171" "#FF7676"
#> (1.96,2] (2,2.04] (2.04,2.08] (2.08,2.12] (2.12,2.16] (2.16,2.2]
#> "#FF7B7B" "#FF8080" "#FF8585" "#FF8B8B" "#FF9090" "#FF9595"
#> (2.2,2.24] (2.24,2.28] (2.28,2.32] (2.32,2.36] (2.36,2.4] (2.4,2.44]
#> "#FF9A9A" "#FF9F9F" "#FFA4A4" "#FFAAAA" "#FFAFAF" "#FFB4B4"
#> (2.44,2.48] (2.48,2.52] (2.52,2.56] (2.56,2.6] (2.6,2.64] (2.64,2.68]
#> "#FFB9B9" "#FFBEBE" "#FFC3C3" "#FFC8C8" "#FFCECE" "#FFD3D3"
#> (2.68,2.72] (2.72,2.76] (2.76,2.8] (2.8,2.84] (2.84,2.88] (2.88,2.92]
#> "#FFD8D8" "#FFDDDD" "#FFE2E2" "#FFE7E7" "#FFECEC" "#FFF2F2"
#> (2.92,2.96] (2.96,3] (3,3.04] (3.04,3.08] (3.08,3.12] (3.12,3.16]
#> "#FFF7F7" "#FFFCFC" "#FCFCFF" "#F7F7FF" "#F2F2FF" "#ECECFF"
#> (3.16,3.2] (3.2,3.24] (3.24,3.28] (3.28,3.32] (3.32,3.36] (3.36,3.4]
#> "#E7E7FF" "#E2E2FF" "#DDDDFF" "#D8D8FF" "#D3D3FF" "#CECEFF"
#> (3.4,3.44] (3.44,3.48] (3.48,3.52] (3.52,3.56] (3.56,3.6] (3.6,3.64]
#> "#C8C8FF" "#C3C3FF" "#BEBEFF" "#B9B9FF" "#B4B4FF" "#AFAFFF"
#> (3.64,3.68] (3.68,3.72] (3.72,3.76] (3.76,3.8] (3.8,3.84] (3.84,3.88]
#> "#A9A9FF" "#A4A4FF" "#9F9FFF" "#9A9AFF" "#9595FF" "#9090FF"
#> (3.88,3.92] (3.92,3.96] (3.96,4] (4,4.04] (4.04,4.08] (4.08,4.12]
#> "#8B8BFF" "#8585FF" "#8080FF" "#7B7BFF" "#7676FF" "#7171FF"
#> (4.12,4.16] (4.16,4.2] (4.2,4.24] (4.24,4.28] (4.28,4.32] (4.32,4.36]
#> "#6C6CFF" "#6767FF" "#6161FF" "#5C5CFF" "#5757FF" "#5252FF"
#> (4.36,4.4] (4.4,4.44] (4.44,4.48] (4.48,4.52] (4.52,4.56] (4.56,4.6]
#> "#4D4DFF" "#4848FF" "#4242FF" "#3D3DFF" "#3838FF" "#3333FF"
#> (4.6,4.64] (4.64,4.68] (4.68,4.72] (4.72,4.76] (4.76,4.8] (4.8,4.84]
#> "#2E2EFF" "#2929FF" "#2424FF" "#1E1EFF" "#1919FF" "#1414FF"
#> (4.84,4.88] (4.88,4.92] (4.92,4.96] (4.96,5]
#> "#0F0FFF" "#0A0AFF" "#0505FF" "#0000FF"
(pal3 <- palette_scop(
x,
palette = "Spectral",
n = 10
))
#> [1,1.4] (1.4,1.8] (1.8,2.2] (2.2,2.6] (2.6,3] (3,3.4] (3.4,3.8] (3.8,4.2]
#> "#5E4FA2" "#3288BD" "#66C2A5" "#ABDDA4" "#E6F598" "#FFFFBF" "#FEE08B" "#FDAE61"
#> (4.2,4.6] (4.6,5]
#> "#F46D43" "#D53E4F"
(pal4 <- palette_scop(
x,
palette = "Spectral",
n = 10,
reverse = TRUE
))
#> (4.6,5] (4.2,4.6] (3.8,4.2] (3.4,3.8] (3,3.4] (2.6,3] (2.2,2.6] (1.8,2.2]
#> "#D53E4F" "#F46D43" "#FDAE61" "#FEE08B" "#FFFFBF" "#E6F598" "#ABDDA4" "#66C2A5"
#> (1.4,1.8] [1,1.4]
#> "#3288BD" "#5E4FA2"
(pal5 <- palette_scop(
x,
palette = "Spectral",
matched = TRUE
))
#> [1,1.04] (1.96,2] (2.96,3] <NA> (2.96,3] (3.96,4] (4.96,5]
#> "#5E4FA2" "#83CDA4" "#FDFEBD" NA "#FDFEBD" "#F88F52" "#9E0142"
(pal6 <- palette_scop(
x,
palette = "Spectral",
matched = TRUE,
NA_keep = TRUE
))
#> [1,1.04] (1.96,2] (2.96,3] <NA> (2.96,3] (3.96,4] (4.96,5]
#> "#5E4FA2" "#83CDA4" "#FDFEBD" "grey80" "#FDFEBD" "#F88F52" "#9E0142"

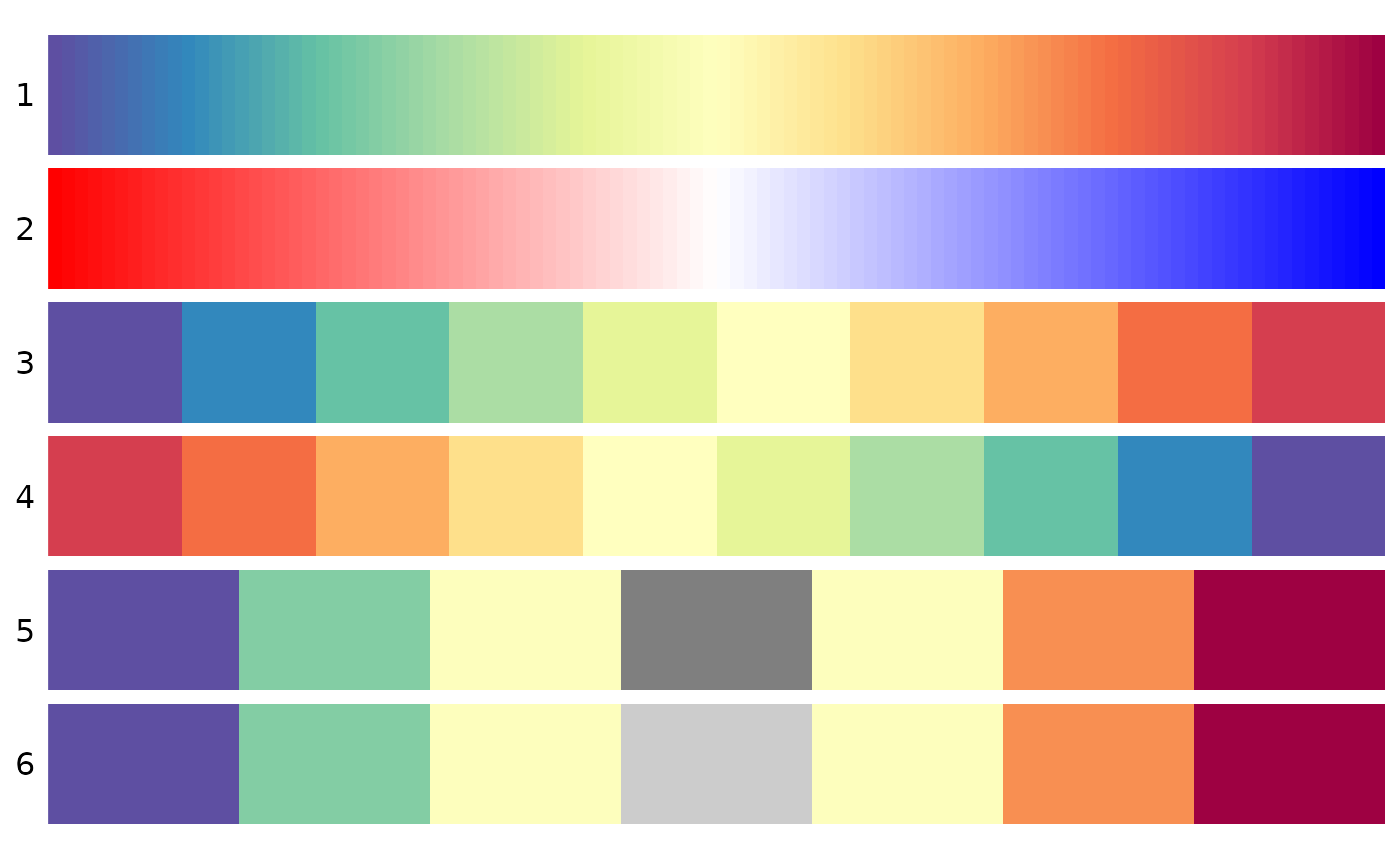

show_palettes(
list(pal1, pal2, pal3, pal4, pal5, pal6)
)
#> [1] "1" "2" "3" "4" "5" "6"
all_palettes <- show_palettes(return_palettes = TRUE)
names(all_palettes)
#> [1] "BrBG" "PiYG" "PRGn"
#> [4] "PuOr" "RdBu" "RdGy"
#> [7] "RdYlBu" "RdYlGn" "Spectral"
#> [10] "Accent" "Dark2" "Paired"
#> [13] "Pastel1" "Pastel2" "Set1"
#> [16] "Set2" "Set3" "Blues"
#> [19] "BuGn" "BuPu" "GnBu"
#> [22] "Greens" "Greys" "Oranges"
#> [25] "OrRd" "PuBu" "PuBuGn"
#> [28] "PuRd" "Purples" "RdPu"
#> [31] "Reds" "YlGn" "YlGnBu"
#> [34] "YlOrBr" "YlOrRd" "npg"
#> [37] "aaas" "nejm" "lancet"
#> [40] "jama" "jco" "ucscgb"
#> [43] "d3-category10" "d3-category20" "d3-category20b"
#> [46] "d3-category20c" "igv" "locuszoom"
#> [49] "uchicago-default" "uchicago-light" "uchicago-dark"
#> [52] "cosmic" "simpsons" "futurama"
#> [55] "rickandmorty" "startrek" "tron"
#> [58] "frontiers" "flatui" "gsea"
#> [61] "material-red" "material-pink" "material-purple"
#> [64] "material-deep-purple" "material-indigo" "material-blue"
#> [67] "material-light-blue" "material-cyan" "material-teal"
#> [70] "material-green" "material-light-green" "material-lime"
#> [73] "material-yellow" "material-amber" "material-orange"
#> [76] "material-deep-orange" "material-brown" "material-grey"
#> [79] "material-blue-grey" "dPBIYlBu" "dPBIYlPu"
#> [82] "dPBIPuGn" "dPBIPuOr" "dPBIRdBu"
#> [85] "dPBIRdGy" "dPBIRdGn" "qMSOStd"
#> [88] "qMSO12" "qMSO15" "qMSOBuWarm"
#> [91] "qMSOBu" "qMSOBu2" "qMSOBuGn"
#> [94] "qMSOGn" "qMSOGnYl" "qMSOYl"
#> [97] "qMSOYlOr" "qMSOOr" "qMSOOrRd"
#> [100] "qMSORdOr" "qMSORd" "qMSORdPu"
#> [103] "qMSOPu" "qMSOPu2" "qMSOMed"
#> [106] "qMSOPap" "qMSOMrq" "qMSOSlp"
#> [109] "qMSOAsp" "qPBI" "sPBIGn"
#> [112] "sPBIGy1" "sPBIRd" "sPBIYl"
#> [115] "sPBIGy2" "sPBIBu" "sPBIOr"
#> [118] "sPBIPu" "sPBIYlGn" "sPBIRdPu"
#> [121] "ag_GrnYl" "ag_Sunset" "ArmyRose"
#> [124] "Earth" "Fall" "Geyser"
#> [127] "TealRose" "Temps" "Tropic"
#> [130] "Antique" "Bold" "Pastel"
#> [133] "Prism" "Safe" "Vivid"
#> [136] "BluGrn" "BluYl" "BrwnYl"
#> [139] "Burg" "BurgYl" "DarkMint"
#> [142] "Emrld" "Magenta" "Mint"
#> [145] "OrYel" "Peach" "PinkYl"
#> [148] "Purp" "PurpOr" "RedOr"
#> [151] "Sunset" "SunsetDark" "Teal"
#> [154] "TealGrn" "polarnight" "snowstorm"
#> [157] "frost" "aurora" "lumina"
#> [160] "mountain_forms" "silver_mine" "lake_superior"
#> [163] "victory_bonds" "halifax_harbor" "moose_pond"
#> [166] "algoma_forest" "rocky_mountain" "red_mountain"
#> [169] "baie_mouton" "afternoon_prarie" "magma"
#> [172] "inferno" "plasma" "viridis"
#> [175] "cividis" "rocket" "mako"
#> [178] "turbo" "ocean.algae" "ocean.deep"
#> [181] "ocean.dense" "ocean.gray" "ocean.haline"
#> [184] "ocean.ice" "ocean.matter" "ocean.oxy"
#> [187] "ocean.phase" "ocean.solar" "ocean.thermal"
#> [190] "ocean.turbid" "ocean.balance" "ocean.curl"
#> [193] "ocean.delta" "ocean.amp" "ocean.speed"
#> [196] "ocean.tempo" "BrowntoBlue.10" "BrowntoBlue.12"
#> [199] "BluetoDarkOrange.12" "BluetoDarkOrange.18" "DarkRedtoBlue.12"
#> [202] "DarkRedtoBlue.18" "BluetoGreen.14" "BluetoGray.8"
#> [205] "BluetoOrangeRed.14" "BluetoOrange.10" "BluetoOrange.12"
#> [208] "BluetoOrange.8" "LightBluetoDarkBlue.10" "LightBluetoDarkBlue.7"
#> [211] "Categorical.12" "GreentoMagenta.16" "SteppedSequential.5"
#> [214] "jcolors-default" "jcolors-pal2" "jcolors-pal3"
#> [217] "jcolors-pal4" "jcolors-pal5" "jcolors-pal6"
#> [220] "jcolors-pal7" "jcolors-pal8" "jcolors-pal9"
#> [223] "jcolors-pal10" "jcolors-pal11" "jcolors-pal12"
#> [226] "jcolors-rainbow" "jet" "simspec"
#> [229] "GdRd"
