Compose plots at their preferred sizes — plot

Calculate each plot's preferred physical size and keep every plot at that size. The default publication layout searches compact asymmetric placements with aligned edges, while the ordered layout packs shorter rows continuously and centers them. Apply plot-specific styling before composing.

Usage

plot_autocompose(
  plots,
  ncol = NULL,
  nrow = NULL,
  panel_width = 45,
  panel_height = 35,
  margin = 2,
  units = "mm",
  save = NULL,
  dpi = 300,
  base_size = "auto",
  label_autosize = TRUE,
  target_aspect = 1.6,
  target_width = NULL,
  layout = c("publication", "rows"),
  gutter = 4
)

Arguments

plots: A plot or list of plots accepted by plot_autosize().
ncol, nrow: Number of columns and rows. Supplying either uses the ordered row layout.
panel_width, panel_height: Base panel width and height.
margin: Outer margin.
units: Units for panel dimensions and margin. See grid::unit().
save: NULL or a file name to save the fitted plot.
dpi: Resolution used when saving raster output.
base_size: "auto" to harmonize ggplot and grid text to one inferred base size in points, a positive point size, or NULL to preserve each component's typography.
label_autosize: Whether to enlarge constant geom_text, geom_label, and ggrepel label sizes when the panel has enough horizontal space.
target_aspect: Preferred overall width-to-height ratio when ncol and nrow are both NULL.
target_width: Optional publication target width in units. Limits canvas width to fit journal single-column (e.g. 85 mm) or double-column (e.g. 180 mm) constraints.
layout: "publication" for compact asymmetric placement or "rows" to preserve input order in rows.
gutter: Space between components in units for the publication layout.

Value

A wrapped plot with size and autosize attributes. Component sizes are stored in attr(x, "autosize")$components.

Examples

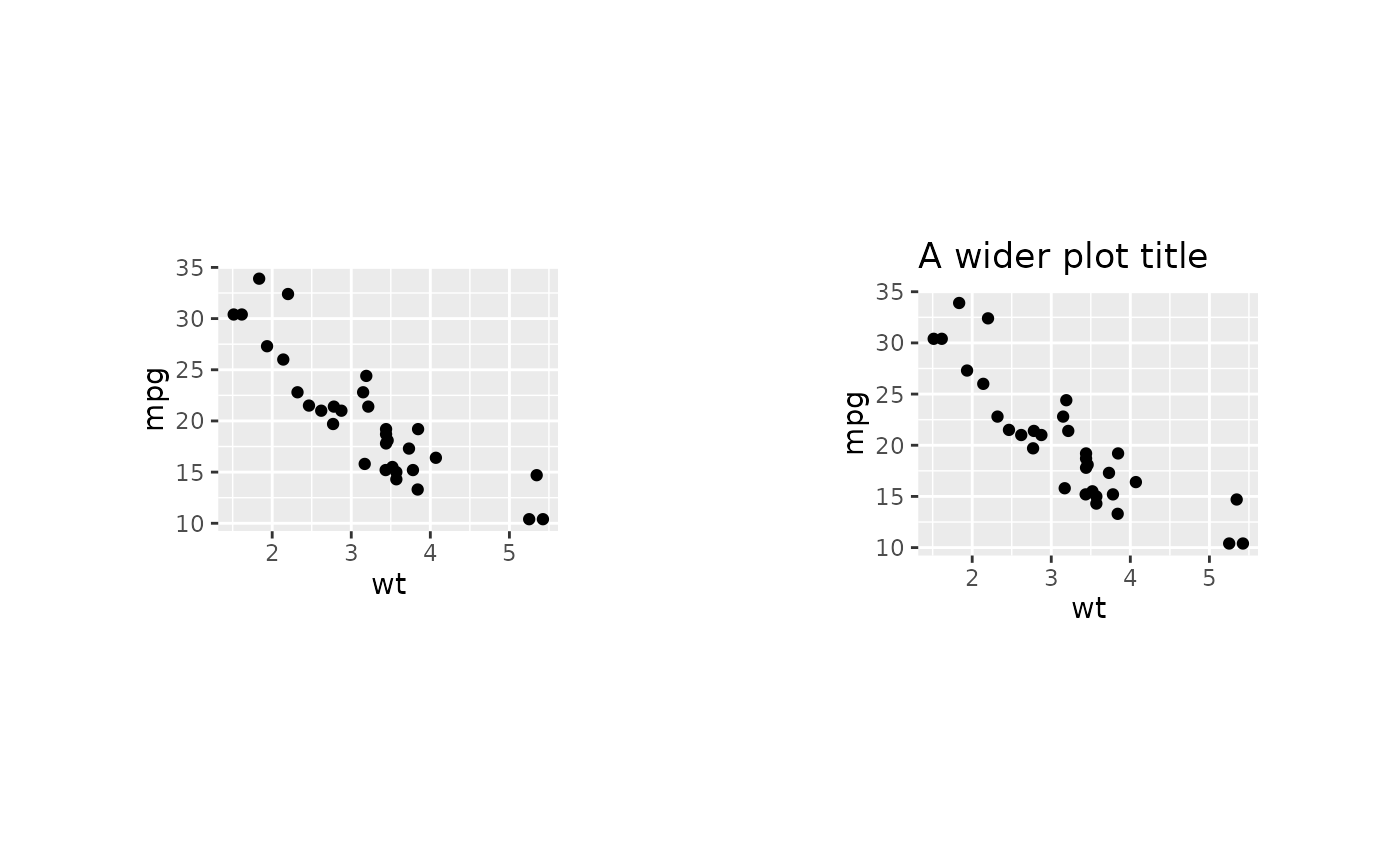

p1 <- ggplot2::ggplot(mtcars, ggplot2::aes(wt, mpg)) +
  ggplot2::geom_point()
p2 <- p1 + ggplot2::labs(title = "A wider plot title")
plot_autocompose(list(p1, p2), ncol = 2)
