Network Plot

Usage

NetworkPlot(
  edge,
  node = NULL,
  from = "from",
  to = "to",
  weight = "weight",
  node_name = NULL,
  edge_group = NULL,
  edge_palcolor = NULL,
  edge_palette = "Chinese",
  node_group = NULL,
  node_palcolor = NULL,
  node_palette = "Chinese",
  node_shape = NULL,
  node_shape_values = NULL,
  node_size = NULL,
  node_size_range = NULL,
  layout = c("fr", "kk", "circle", "none"),
  node_coord = c("x", "y"),
  edge_width = c(0.2, 1),
  edge_width_legend = FALSE,
  edge_alpha = 0.7,
  edge_curvature = 0,
  edge_arrow = FALSE,
  label = TRUE,
  label_nodes = NULL,
  label.size = 3.5,
  label_size = NULL,
  label_face = NULL,
  label.fg = "black",
  label.bg = "white",
  label.bg.r = 0.1,
  highlight = NULL,
  highlight.color = "red",
  highlight.size = 6,
  title = NULL,
  aspect.ratio = 1,
  legend.position = "right",
  theme_use = "theme_this",
  theme_args = list(),
  seed = 42
)

Arguments

edge

A data frame with one row per edge.

node

Optional data frame with one row per node. Node identifiers are taken from node_name, from a column named name, or from the row names.

from, to

Column names in edge holding the edge endpoints.

weight

Column name in edge holding edge weights. Use NULL for unweighted edges.

node_name

Column name in node holding node identifiers.

edge_group

Optional column name in edge used to colour edges.

edge_palcolor, edge_palette

Custom colors or palette name for edge_group.

node_group

Optional column name in node used to fill nodes.

node_palcolor, node_palette

Custom colors or palette name for node_group.

node_shape

Optional node shapes. Either a column name in node or a named vector of grid shapes keyed by node name.

node_shape_values

Named vector mapping node_shape levels to shapes.

node_size

Optional node sizes. Either a column name in node or a numeric value used for every node.

node_size_range

Optional size range used to rescale a numeric column supplied to node_size; NULL keeps the supplied values.

layout

Layout used when node has no coordinates. One of "fr", "kk", "circle" or "none".

node_coord

Column names in node holding x and y coordinates. Used when layout = "none".

edge_width

Width range for the edges; NULL keeps the ggplot2 default width scale.

edge_width_legend

Whether to show the edge width legend. Default is FALSE.

edge_alpha

Edge alpha.

edge_curvature

Edge curvature passed to geom_curve; 0 draws straight segments.

edge_arrow

Whether to draw arrow heads on edges.

label

Whether to draw node labels.

label_nodes

Nodes to label. Default labels every node.

label.size

Label text size.

label_size

Optional per-node label sizes. Either a column name in node, a named vector keyed by node name, or NULL to use label.size.

label_face

Optional per-node label faces. Either a column name in node, a named vector keyed by node name, or NULL for plain text.

label.fg, label.bg, label.bg.r

Label foreground color, outline color and outline radius.

highlight

Optional node names drawn with an extra ring.

highlight.color, highlight.size

Color and size of the highlight ring.

title

Optional plot title.

aspect.ratio

Aspect ratio passed to the theme.

legend.position

Legend position passed to the theme.

theme_use

Theme function name, one of "theme_this", "theme_blank" or "theme_void".

theme_args

A named list of arguments passed to theme_use.

seed

Optional integer seed for the layout.

Value

A ggplot object.

Examples

edge <- data.frame(
  from = c("A", "A", "B", "C"),
  to = c("B", "C", "C", "D"),
  weight = c(1, -2, 3, 1)
)

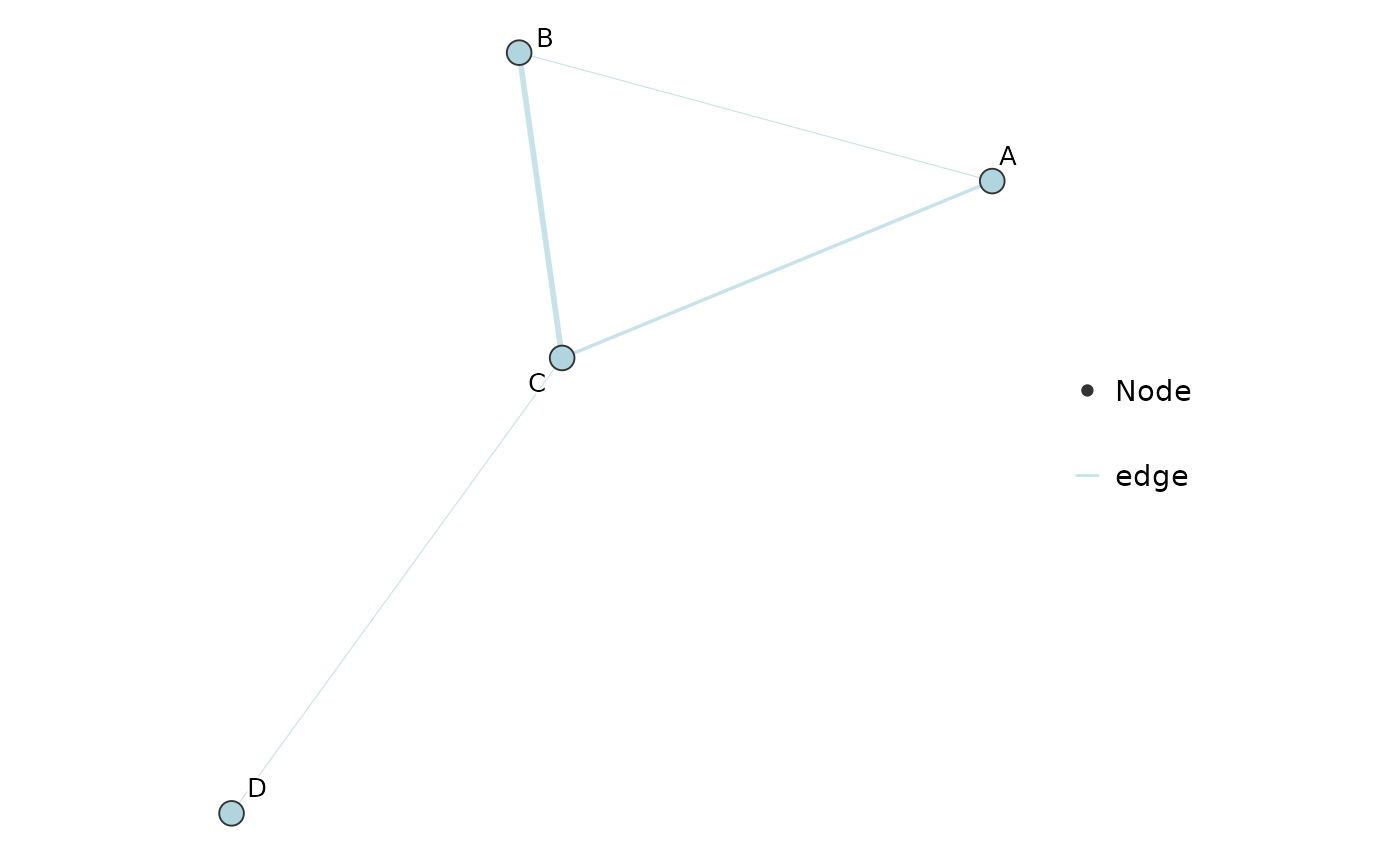

NetworkPlot(edge)


node <- data.frame(
  name = c("A", "B", "C", "D"),
  group = c("g1", "g2", "g2", "g3"),
  shape = c("hub", "leaf", "leaf", "leaf")
)

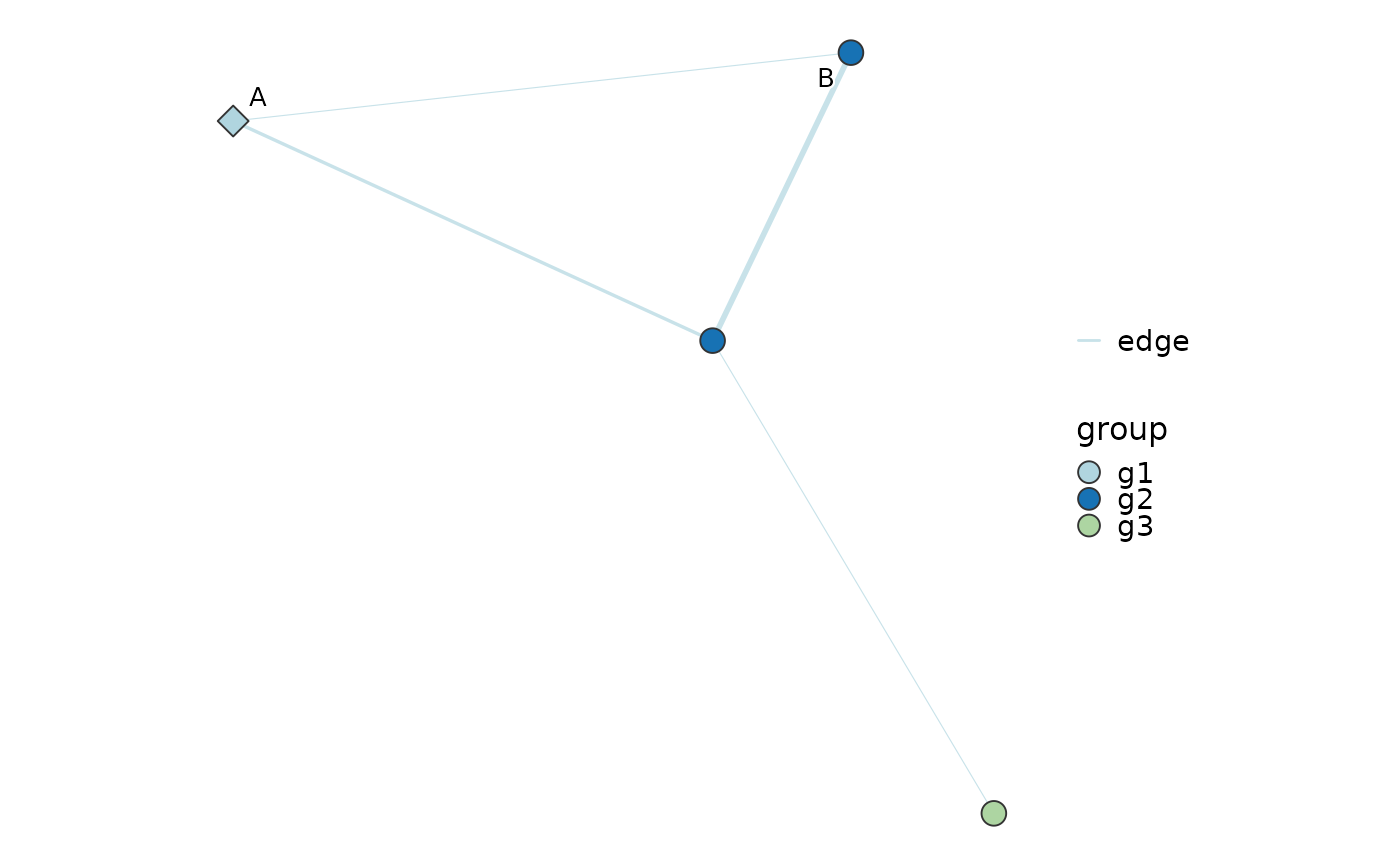

NetworkPlot(
  edge,
  node = node,
  node_group = "group",
  node_shape = "shape",
  node_shape_values = c("hub" = 23, "leaf" = 21),
  label_nodes = c("A", "B")
)
